EP2500CX 1 ACH (EAHC) - Honda Generator, Made in China (SN: EAHC-1000001 - EAHC-9999999) RECOIL STARTER (1) Parts Diagram

Generator, Made in China

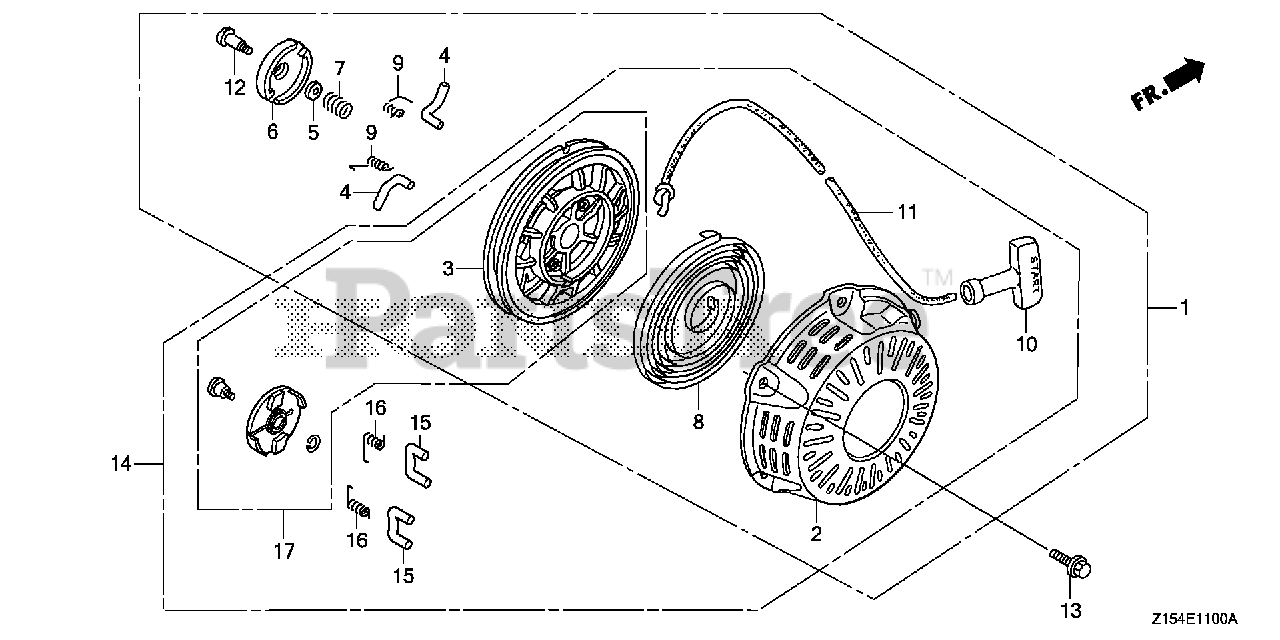

RECOIL STARTER (1) Parts Diagram

  • Title

1

Honda 28400-ZH8-033ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *NH1* (BLACK)
(Superseded to 28400-Z0T-003ZA)

Note: Use up to Engine SN 2608292.

$87.99

$

In Stock, Qty 6

0

1

Honda 28400-Z0T-003ZA

SEE PART DETAILS - PRI; STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use up to Engine SN 3103958.

$87.99

$

In Stock, Qty 6

0

2

Honda 28410-ZH8-003ZB

CASE, RECOIL STARTER *NH1* (BLACK)

Note: Use up to Engine SN 3103958.

$157.99

$

Usually ships in 3-6 days

0

2

Honda 28410-Z1T-701ZD

CASE, RECOIL STARTER *NH1* (BLACK)

Note: Use from Engine SN 3103959.

$29.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZH8-801

REEL, RECOIL STARTER (BLACK)

Note: Use up to Engine SN 2608292.

$38.99

$

Usually ships in 3-6 days

0

3

Honda 28421-Z0T-003

REEL, RECOIL STARTER

Note: Use from Engine SN 2608293 to 3103958.

$39.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZH8-801

RATCHET, STARTER

Note: Use up to Engine SN 3103958.

$7.49

$

In Stock, Qty 6

0

5

Honda 28431-ZH8-801

PLATE, FRICTION

Note: Use up to Engine SN 3103958.

$5.99

$

Usually ships in 3-6 days

0

6

Honda 28433-ZH8-801

GUIDE, RATCHET

Note: Use up to Engine SN 3103958.

$10.99

$

Usually ships in 3-6 days

0

7

Honda 28441-ZH8-801

SPRING, FRICTION

Note: Use up to Engine SN 3103958.

$4.49

$

In Stock, Qty 10

0

8

Honda 28442-ZH8-003

SPRING, RECOIL STARTER

$19.99

$

In Stock, Qty 20+

0

9

Honda 28443-ZH8-801

SPRING, RETURN

Note: Use up to Engine SN 3103958.

$3.99

$

In Stock, only 1 left!

0

10

Honda 28461-ZH8-003

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZH8-013)

Note: Use up to Engine SN 2066868.

$8.99

$

In Stock, Qty 14

0

10

Honda 28461-ZH8-013

SEE PART DETAILS - PRI; KNOB, RECOIL SRARTER

$8.99

$

In Stock, Qty 14

0

11

Honda 28462-ZH8-003

ROPE, RECOIL STARTER

Note: Use up to Engine SN 3103958.

$13.99

$

In Stock, Qty 9

0

11

Honda 28462-Z1T-701

ROPE, RECOIL STARTER

Note: Use from Engine SN 3103959.

$18.99

$

Usually ships in 3-6 days

0

12

Honda 90003-ZH8-801

SCREW, SETTING

Note: Use up to Engine SN 3103958.

$4.99

$

In Stock, Qty 11

0

13

Honda 90008-ZE2-003

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 20+

0

14

Honda 28400-Z1T-701ZD

STARTER ASSY., RECOIL *NH1* (BLACK)

Note: Use from Engine SN 3103959.

$

$

Not available

15

Honda 28422-Z1T-701

RATCHET, STARTER

Note: Use from Engine SN 3103959.

$7.49

$

In Stock, Qty 5

0

16

Honda 28443-Z1T-701

SPRING, RETURN

Note: Use from Engine SN 3103959.

$3.99

$

In Stock, Qty 14

0

17

Honda 06280-Z1T-305

STARTER SET, RECOIL

Note: Use from Engine SN 3103959.

$16.99

$

Usually ships in 3-6 days

0
