EP2500CX 1 ACH (EAHC) - Honda Generator, Made in China (SN: EAHC-1000001 - EAHC-9999999) CYLINDER HEAD Parts Diagram

Generator, Made in China

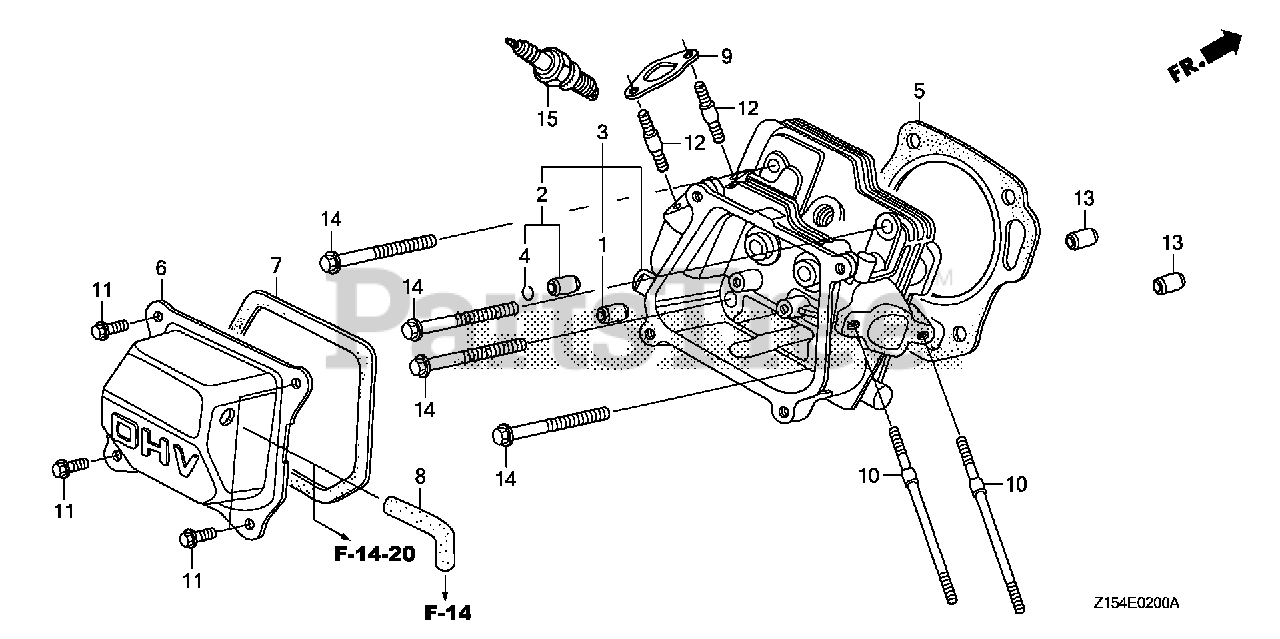

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$9.99

$

Usually ships in 3-6 days

0

2

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OVER SIZE)

$10.99

$

In Stock, only 2 left!

0

3

Honda 12210-Z1T-010

CYLINDER HEAD
(Superseded to 12210-Z1T-020)

$190.99

$

Usually ships in 3-6 days

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 17

0

5

Honda 12251-Z1T-003

GASKET, CYLINDER HEAD (GUANGZHOU LEAKLESS)

$21.99

$

Usually ships in 3-6 days

0

5

Honda 12251-Z1T-701

GASKET, CYLINDER HEAD (NINGBO SIL GASKET)

$22.99

$

Usually ships in 3-6 days

0

6

Honda 12310-ZE1-020

SEE PART DETAILS - PRI; COVER, HEAD

$18.99

$

In Stock, only 1 left!

0

7

Honda 12312-Z1T-701

GASKET, HEAD COVER (NINGBO SIL GASKET)

$9.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE1-000

GASKET, HEAD COVER

$5.49

$

In Stock, Qty 20+

0

8

Honda 15721-Z1T-D40

TUBE, BREATHER

$6.99

$

Usually ships in 3-6 days

0

9

Honda 18381-Z1T-003

GASKET, MUFFLER

$4.99

$

In Stock, only 3 left!

0

9

Honda 18381-Z1T-701

GASKET, MUFFLER (NINGBO SIL GASKET)

$9.49

$

Usually ships in 3-6 days

0

10

Honda 90001-ZL0-D40

BOLT, STUD (6X104) (CT200)

$5.99

$

Usually ships in 3-6 days

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$2.49

$

In Stock, Qty 17

0

12

Honda 90047-ZE1-000

BOLT, STUD (8X32)

$4.99

$

In Stock, only 2 left!

0

13

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

14

Honda 95701-08060-00

BOLT, FLANGE (8X60)

$1.99

$

In Stock, only 3 left!

0

15

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK)

Note: (Optional).

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-55855

SPARK PLUG (W16EPR-U) (DENSO)

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

15

Honda 98079-56846

SPARK PLUG (BPR6ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-56855

SPARK PLUG (W20EPR-U) (DENSO)

$3.99

$

In Stock, Qty 8

0
