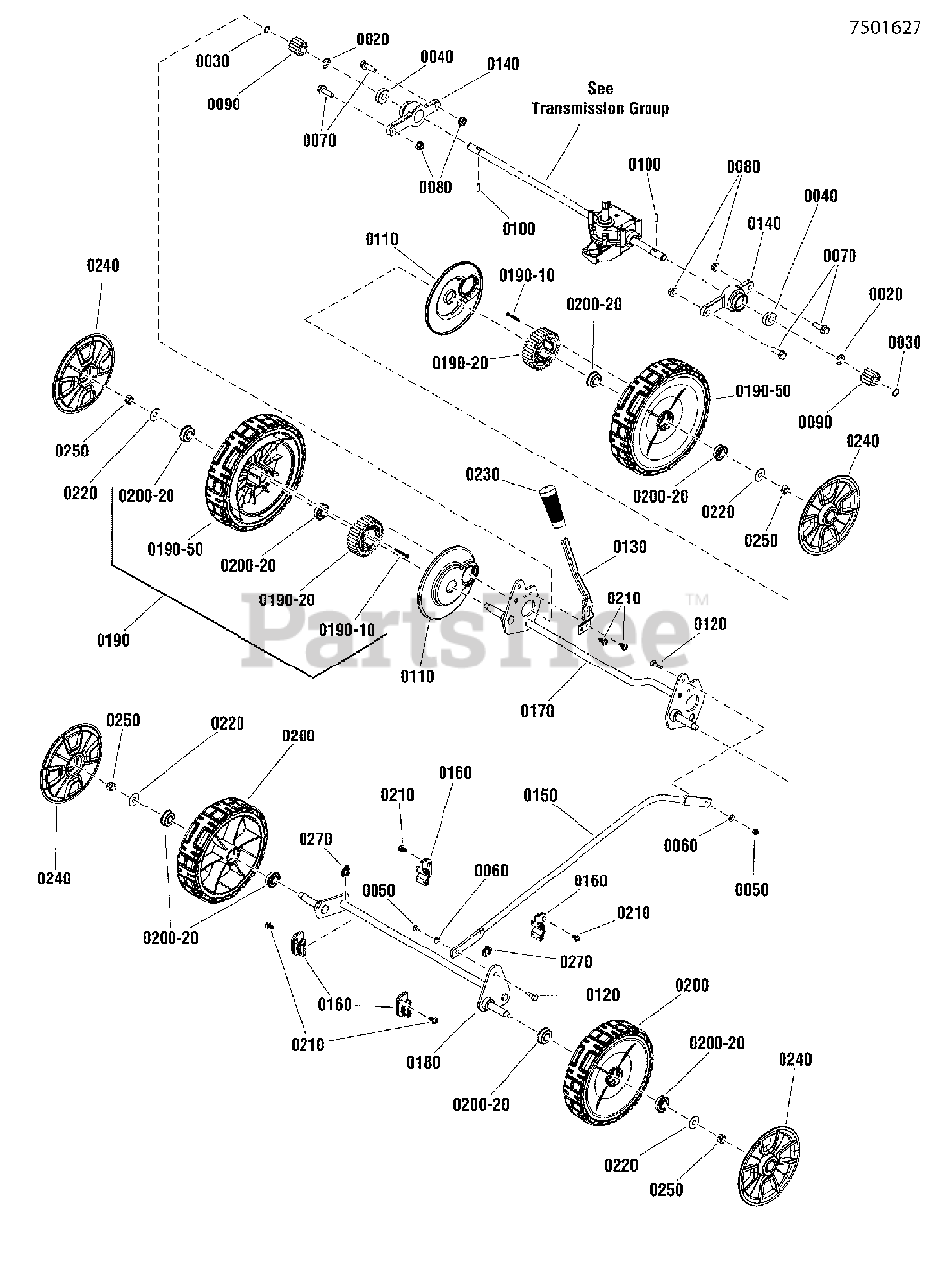

ENXT 22875E (7800873) - Snapper 22" Walk-Behind Mower, 8.75hp Wheels Group, Single Point HOC Parts Diagram

22" Walk-Behind Mower, 8.75hp

Wheels Group, Single Point HOC Parts Diagram

  • Title

0020

Snapper 7014341YP

RETAINING RING, 3.92 EXT.
(Superseded to 703976)

Note: (Waldes #5133-50 or equiv.)(Was 80005401)

$4.49

$

In Stock, Qty 10

0

0030

Snapper 7027999YP

RETAINING RING, .452-.463 ID

Note: (Waldes #5100-50 or equiv.)

$4.49

$

In Stock, only 4 left!

0

0040

Snapper 7078243YP

BEARING, Ball

$10.99

$

In Stock, Qty 18

0

0050

Snapper 7091290SM

NUT, #10-24 UNC-2B Nyloc
(Superseded to 703412)

Note: (Was 80002733)

$4.49

$

In Stock, only 4 left!

0

0060

Snapper 7091552SM

WASHER, .219 x .500 x .049 Flat

$3.99

$

In Stock, Qty 16

0

0070

Snapper 7091591SM

BOLT, 5/16-18 x 1 Hex Flange Lock, GR 5, YZ
(Superseded to 703410)

Note: (Was 80004470)

$4.49

$

In Stock, only 2 left!

0

0080

Snapper 7091601SM

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

Note: (Was 80002728)

$5.49

$

In Stock, Qty 20+

0

0090

Snapper 7100820YP

GEAR, Pinion

$

$

Not available

0100

Snapper 7100861YP

PIN, Axle

$4.99

$

In Stock, only 1 left!

0

0110

Snapper 7101367YP

SHIELD, Dust, 21 WBM, RD

$7.49

$

In Stock, only 2 left!

0

0120

Snapper 7101774YP

BOLT, #10-24 X 3/8, Shoulder

$8.49

$

In Stock, only 2 left!

0

0130

Snapper 7103289YP

LEVER, Spring, Height-Of-Cut

$11.99

$

In Stock, only 2 left!

0

0140

Snapper 7103290YP

HOLDER, Bearing, Rear Wheel Drive

$13.99

$

Usually ships in 2-12 days

0

0150

Snapper 7103306DYP

ROD, Lifter Link, WBM

$40.99

$

Usually ships in 2-12 days

0

0160

Snapper 7104518YP

BUSHING, Bearing, RWD

$4.49

$

In Stock, Qty 20+

0

0170

Snapper 7400259YP

WELDMENT, Rear Crossbar, RWD

$152.99

$

In Stock, only 1 left!

0

0180

Snapper 7400306YP

WELDMENT, Front Axle

$60.99

$

In Stock, only 1 left!

0

0190

Snapper 7600174YP

KIT, Wheel, 9 x 2, Snapper Tread w/Ext Gear

Note: (includes ball bearings #7101380, gear #7100914, & screws #7091196)(Was 7500539)

$56.99

$

Usually ships in 2-12 days

0

0190-10

Snapper 7091196SM

SCREW, #8 x 1-1/4 Hi-Lo

$4.99

$

Usually ships in 2-12 days

0

0190-20

Snapper 7100914YP

GEAR, External Wheel

$10.99

$

Usually ships in 2-12 days

0

0190-50

Snapper 7500647YP

ASSEMBLY, Wheel,W/ Bearings, 9", Charcole

$49.99

$

In Stock, only 1 left!

0

0200

Snapper 7500540YP

ASSEMBLY, Wheel, 8X2 Idle w/Bearings, Sna Tread

Note: (includes two ball bearings, p/n 7101380)

$40.99

$

In Stock, only 2 left!

0

0200-20

Snapper 7101380YP

BALL BEARING, Flange, 1-1/8 O.D.
(Superseded to 071579MA)

Note: (2 per wheel)

$40.99

$

In Stock, only 1 left!

0

0210

Snapper 7900067YP

SCREW, 1/4-20 x .550 Pan Head Self-Tap (Torx)
(Superseded to 703961)

$4.49

$

In Stock, Qty 20+

0

0220

Snapper 17X169MA

WASHER, 1 OD x .387 ID, Flat
(Superseded to 703966)

Note: (Was 722064 or 80005603)

$4.49

$

In Stock, only 2 left!

0

0230

Snapper 671297MA

GRIP, Height-Of-Cut

Note: Was 724887)

$6.49

$

In Stock, only 1 left!

0

0240

Snapper 7102507YP

HUBCAP, 8 & 9 Wheel Spoked-Snapper Cool Gray

$3.99

$

In Stock, Qty 15

0

0250

Snapper 7091585SM

NUT, 3/8-16 Hex Center Lock, YZ
(Superseded to 703347)

Note: (Was 80004408)

$4.99

$

In Stock, only 4 left!

0

0270

Snapper 7104525YP

SPACER, Shaft, 1/2"

$4.49

$

In Stock, only 2 left!

0
