ENFORCER 54 (53AI3AGT750) - Cub Cadet 54" Zero-Turn Mower, 23hp Kawasaki Kawasaki Engine Assembly 23HP Parts Diagram

54" Zero-Turn Mower, 23hp Kawasaki

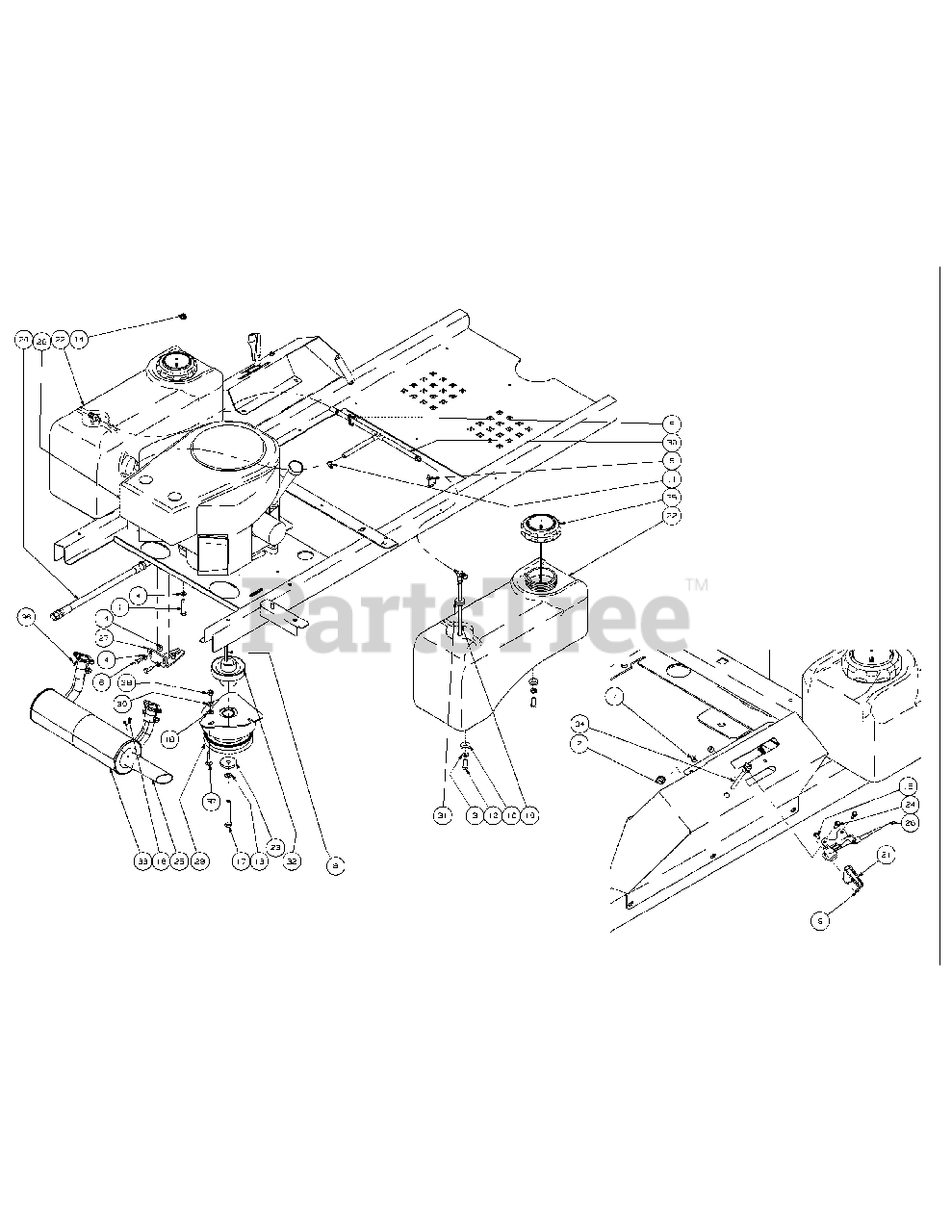

Kawasaki Engine Assembly 23HP Parts Diagram

  • Title

1

Cub Cadet 00006129

HHCS, 5/16-18, 1-3/4

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00011453

Jam Nut, 3/8-24

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

6

Cub Cadet 00013406

Hex Cap Screw, 5/16-18 x .75
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

8

Cub Cadet 00021517

Key, .25 x .25 x 2.00

$8.99

$

In Stock, only 1 left!

0

9

Cub Cadet 00060056

Nut, w/ Star Washer

$6.99

$

In Stock, only 1 left!

0

10

Cub Cadet 00083192

Flat Washer, .390 x 1.00 x .180
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 01000215

Hose Clamp, SAE #4: 1/4-5/8, SS

$

$

Not available

12

Cub Cadet 710-3001

Hex Cap Screw, 3/8-16 x .88

$7.49

$

In Stock, Qty 9

0

13

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

14

Cub Cadet 712-3004A

Lock Nut, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-3217

Machine Screw, 8-32 x .375

$6.99

$

In Stock, Qty 7

0

16

Cub Cadet 710-0148

Screw, 8-32 x .375, Hex Washer

$4.49

$

In Stock, Qty 16

0

17

Cub Cadet 710-0510

Hex Cap Screw, 7/16-20 x 3.00

$11.99

$

In Stock, only 1 left!

0

18

Cub Cadet 01002710

Washer, 3/8 x .738 x .063

$6.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 01003116

Fuel Pickup Fitting

$58.99

$

In Stock, only 4 left!

0

20

Cub Cadet 01003283

Oil Drain Extension Hose

$84.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01004350

Fuel Tank

$

$

Not available

23

Cub Cadet 736-04131

Flat Washer, 7/16 ID x 1.75 OD x .250

$15.99

$

In Stock, only 1 left!

0

24

Cub Cadet 01008531P

Screw, #10-32 x 0.500

$5.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 01008623

Exhaust Pipe

$

$

Not available

26

Cub Cadet 02000477

Throttle Control Cable
(Superseded to 02000477P)

$51.99

$

In Stock, Qty 7

0

27

Cub Cadet 02001992-0637

Clutch Retainer Assembly

$30.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02001993P

23HP Kawasaki Engine

$

$

Not available

29

Cub Cadet 02002160P

Electric Clutch

$

$

Not available

30

Cub Cadet 02002164

Fuel Hose Assembly includes:

$66.99

$

Usually ships in 3-6 days

0

30

Cub Cadet n/a

Hose, 1/4" Fuel Line (70 inches)

Note: (purchase locally)

$

$

Currently unavailable

30

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

Note: (not shown)

$3.99

$

In Stock, Qty 6

0

30

Cub Cadet 01003473

Tee Fitting, Fuel

Note: (not shown)

$7.49

$

In Stock, only 2 left!

0

31

Cub Cadet 02002253

Fuel Tank Groment

$4.99

$

In Stock, only 1 left!

0

32

Cub Cadet 02003418

Transmission Drive Pulley

$

$

Not available

33

Cub Cadet 02003472

Kawasaki Muffler
(Superseded to 02003472P)

$304.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 02003479P

Choke Cable

$42.99

$

In Stock, only 4 left!

0

35

Cub Cadet 951-3124E

Fuel Cap

$36.99

$

In Stock, only 3 left!

0

36

Cub Cadet 02003984

Nut, M8-1.25, Hex Flange
(Superseded to 712-04312)

$3.99

$

In Stock, only 2 left!

0

37

Cub Cadet 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

38

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

39

Cub Cadet 00012168

Lock Washer, 5/16

$

$

Not available
