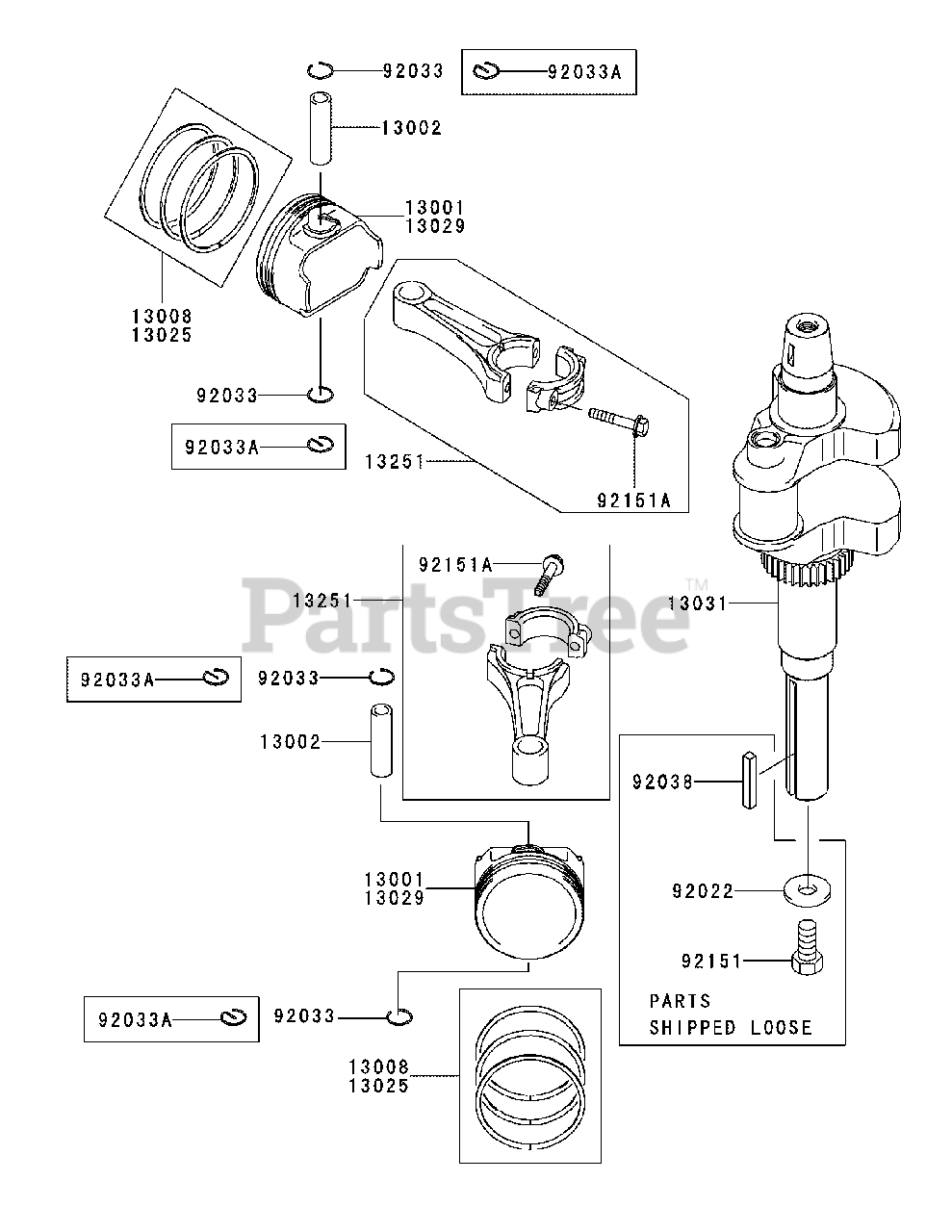

ENFORCER 54 (53AI3AGT750) - Cub Cadet 54" Zero-Turn Mower, 23hp Kawasaki FH680V-HS07 Piston & Crankshaft Parts Diagram

54" Zero-Turn Mower, 23hp Kawasaki

FH680V-HS07 Piston & Crankshaft Parts Diagram

  • Title

13001

Cub Cadet KM-13001-7007

Piston-Engine

$39.99

$

In Stock, only 3 left!

0

13002

Cub Cadet KM-13002-7001

Pin-Piston

$4.99

$

In Stock, Qty 10

0

13008

Cub Cadet KM-13008-6058

Ring-Set-Piston

$81.99

$

In Stock, Qty 20+

0

13025

Cub Cadet KM-13025-7002

Ring-Set-Piston L,0.50

$54.99

$

In Stock, only 2 left!

0

13029

Cub Cadet KM-13029-7003

Piston-Engine L,0.50

$

$

Not available

13031

Cub Cadet KM-13031-7051

Crankshaft-Comp

$355.99

$

Usually ships in 2-5 days

0

13251

Cub Cadet KM-13251-7016

Rod-Assy-Connecting
(Superseded to KM-13251-0048)

$

$

Not available

92022

Cub Cadet KM-92022-1982

Washer, 12.5x32x3.2

$5.99

$

Usually ships in 2-5 days

0

92033

Cub Cadet KM-92033-7002

Ring-Snap
(Superseded to KM-92033-0780)

$0.99

$

In Stock, Qty 11

0

92033A

Cub Cadet KM-92033-7005

Ring-Snap

$0.99

$

In Stock, Qty 7

0

92038

Cub Cadet KM-92038-2101

Key

$4.99

$

Usually ships in 2-5 days

0

92151

Cub Cadet KM-92151-7010

Bolt, 7/16-20 UNF

$1.49

$

In Stock, only 1 left!

0

92151A

Cub Cadet KM-92151-7017

Bolt,6x35
(Superseded to KM-92154-2842)

$1.49

$

In Stock, Qty 20+

0

Cub Cadet 02001993P

Engine

Note: (not shown)

$

$

Not available
