ENFORCER 54 (53AI3AGT750) - Cub Cadet 54" Zero-Turn Mower, 23hp Kawasaki Fabricated Cutter Deck 54-Inch Parts Diagram

54" Zero-Turn Mower, 23hp Kawasaki

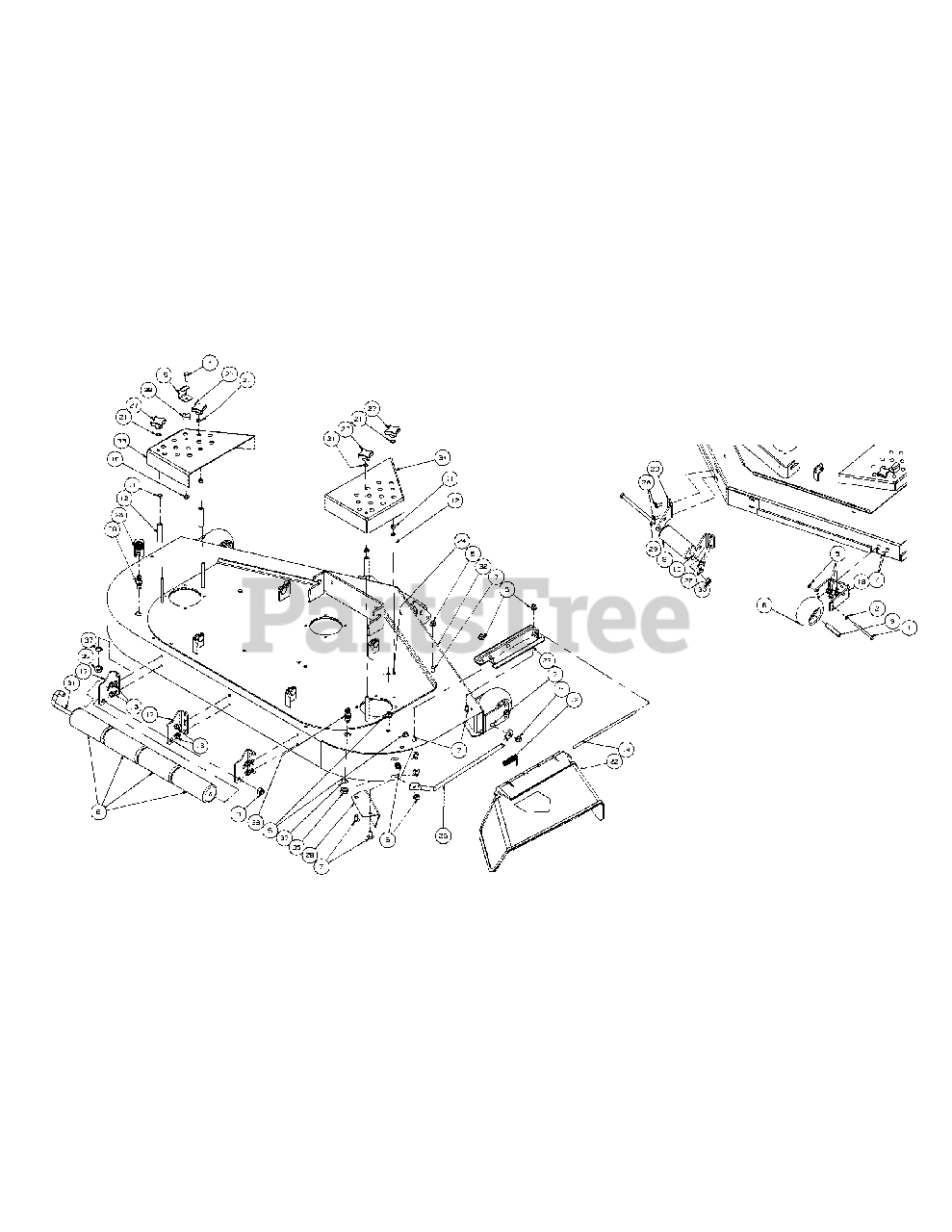

Fabricated Cutter Deck 54-Inch Parts Diagram

  • Title

1

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

2

Cub Cadet 00012158

Washer

$4.49

$

In Stock, Qty 9

0

3

Cub Cadet 00012428

Hex Nut, 1/2-13, Insert Lock

$6.99

$

In Stock, only 2 left!

0

4

Cub Cadet 00013092

Hex Cap Screw, 5/16-18, 1.00
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 5

0

5

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia

$34.99

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

9

Cub Cadet 750-3193

Wheel Spacer

$18.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-3004A

Hex Nut, 5/16-18 Flange Lock

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 01002511

Nut, 3/8-16, Jam

$5.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, only 1 left!

0

13

Cub Cadet 732-04797

Torsion Spring

$11.99

$

In Stock, only 4 left!

0

14

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

15

Cub Cadet 01004109

Stop Bracket

$11.99

$

In Stock, only 1 left!

0

16

Cub Cadet 01004304

Self Tapping Screw, 5/16-18 x 1/2
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

17

Cub Cadet 01005366

Fabricted Deck Roller Mount Bracket
(Superseded to 01004707-4021)

$23.99

$

In Stock, only 4 left!

0

18

Cub Cadet 01005243-4021

Front Anti-Scalp Wheel Mount Bracket

$57.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01005244-4021

Left Hand Front Roller Mount Bracket

$

$

Not available

20

Cub Cadet 01005245-4021

Right Hand Front Roller Mount Bracket
(Superseded to 01005245-0637)

$36.99

$

In Stock, Qty 5

0

21

Cub Cadet 01005851

External Washer, 3/8
(Superseded to 736-0148)

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 01006693P

Deflector Chute

$68.99

$

In Stock, Qty 8

0

23

Cub Cadet 01006748-0637

Deflector Chute Bracket

$35.99

$

In Stock, Qty 10

0

24

Cub Cadet 01008049

Carriage Bolt, 3/8-16 x 4.00
(Superseded to 710-05384)

$5.49

$

In Stock, Qty 19

0

25

Cub Cadet 01008644

Fabricated Deck Finger Guard

$36.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01009243

Self Tapping Screw, 3/8-16 x 0.875

$14.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02000040

Plastic Knob

$20.99

$

In Stock, only 2 left!

0

28

Cub Cadet 02001235-0637

Fabricated Deck, Chute Bracket

$31.99

$

In Stock, only 3 left!

0

29

Cub Cadet 01006961

Hex Cap Screw, 1/2-20 x 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 10

0

30

Cub Cadet 02002299

Lock Nut, Nylon Insert, 1/2-20
(Superseded to 712-04316)

$3.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02002799

J-Hook w/ Threaded Roller
(Superseded to 711-05664)

$22.99

$

In Stock, only 1 left!

0

32

Cub Cadet 02003576-0637

54 Fabricated Deck Assembly

$

$

Not available

33

Cub Cadet 02003607

Belt Cover, LH

$

$

Not available

34

Cub Cadet 02003608

Belt Cover, RH

$

$

Not available

35

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

36

Cub Cadet 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

37

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

38

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

39

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, only 4 left!

0
