ENFORCER 54 (53AH3AGT050) - Cub Cadet 54" Zero-Turn Mower, 23hp Kohler Command Kohler Engine Assembly 23HP Parts Diagram

54" Zero-Turn Mower, 23hp Kohler Command

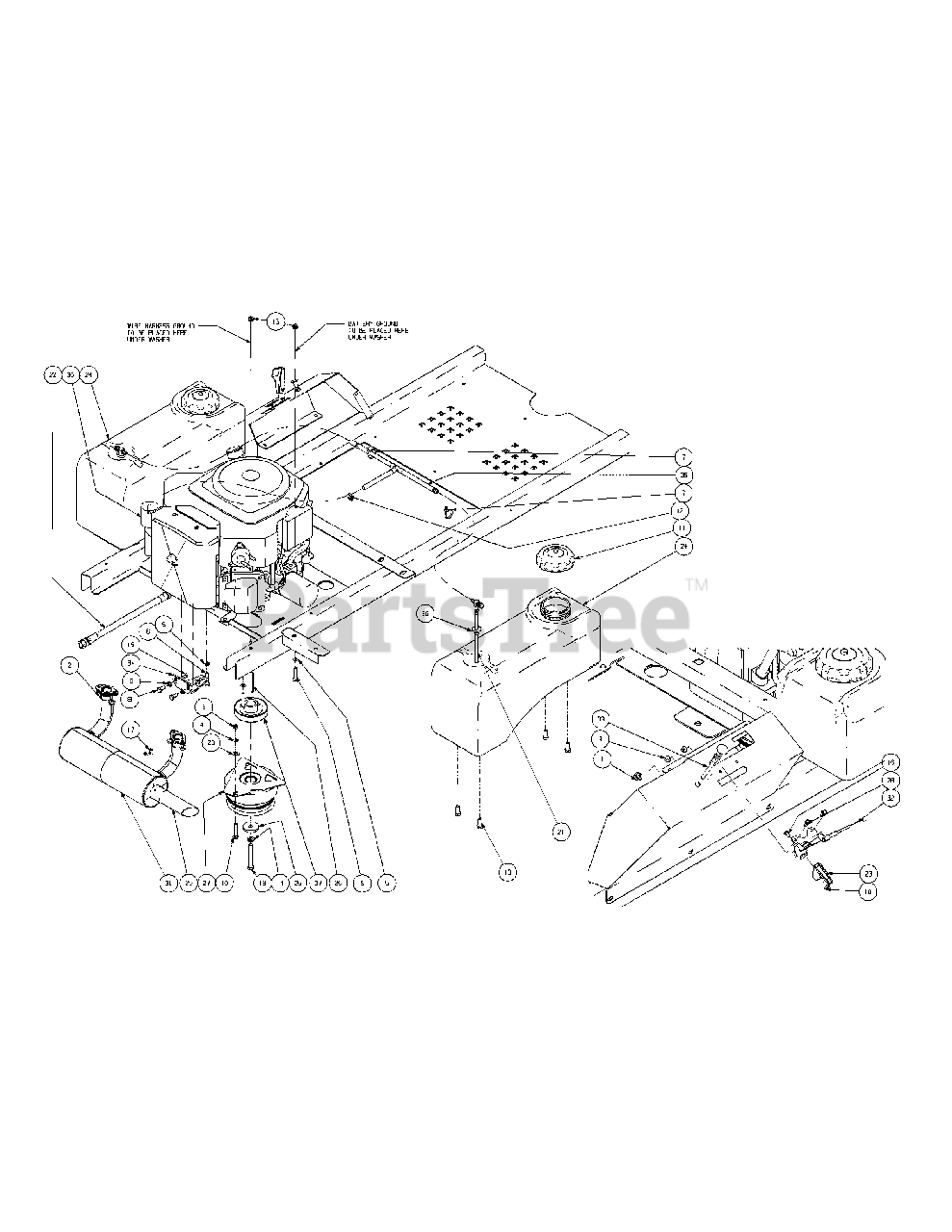

Kohler Engine Assembly 23HP Parts Diagram

  • Title

1

Cub Cadet 00011453

Jam Nut, 3/8-24

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 02003984

Nut, M8-1.25, Hex Flange
(Superseded to 712-04312)

$3.99

$

In Stock, only 2 left!

0

3

Cub Cadet 712-3007

Hex Nut, 5/16-18

$6.99

$

In Stock, only 3 left!

0

4

Cub Cadet 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00012169

Flat Washer, 5/16

$4.49

$

In Stock, only 2 left!

0

6

Cub Cadet 00012382

HHCS, 5/16-18, 1-1/2

$

$

Not available

7

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3008

Hex Cap Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 00014608

Lock Nut, Nylon Insert, 10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

10

Cub Cadet 00060056

Nut, w/ Star Washer

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 951-3124E

Fuel Cap

$36.99

$

In Stock, only 3 left!

0

12

Cub Cadet 01000215

Hose Clamp, SAE #4: 1/4-5/8, SS

$

$

Not available

13

Cub Cadet 02005013

HHCS, 3/8-16 x .500, Flange Whiz
(Superseded to 710-05412)

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet 712-3004A

Lock Nut, Hex Flange, 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3217

Machine Screw, 8-32 x .375

$6.99

$

In Stock, Qty 7

0

17

Cub Cadet 710-0148

Screw, 8-32 x .375, Hex Washer

$4.49

$

In Stock, Qty 16

0

18

Cub Cadet 710-0510

Hex Cap Screw, 7/16-20 x 3.0

$11.99

$

In Stock, only 1 left!

0

19

Cub Cadet 710-0458

Carriage Bolt, 5/16-18 x 1.75

$4.49

$

In Stock, only 4 left!

0

20

Cub Cadet 01002710

Washer, 3/8 x .738 x .063

$6.49

$

Usually ships in 3-6 days

0

21

Cub Cadet 01003116

Fuel Pickup Fitting

$58.99

$

In Stock, only 4 left!

0

22

Cub Cadet 01003283

Oil Drain Extension Hose

$84.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01004350

Fuel Tank

$

$

Not available

25

Cub Cadet 736-04131

Flat Washer, 7/16 ID x 1.75 OD x .250

$15.99

$

In Stock, only 1 left!

0

26

Cub Cadet 01007533

Key, 1/4 x 1/4 x 2.75

$11.99

$

In Stock, only 1 left!

0

27

Cub Cadet 01008434P

Ogura DX11 Electric Clutch
(Superseded to 759-05064)

$514.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01008531P

Screw, #10-32 x 0.500

$5.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01008623

Exhaust Pipe

$

$

Not available

30

Cub Cadet KH-CV680-3034

23HP Kohler Engine

$

$

Not available

31

Cub Cadet 02000456

Muffler, Silexsys
(Superseded to 02000456P)

$

$

Not available

32

Cub Cadet 02000477

Throttle Control Cable
(Superseded to 02000477P)

$51.99

$

In Stock, Qty 7

0

33

Cub Cadet 02000478

Choke Cable
(Superseded to 02000478P)

$41.99

$

In Stock, only 1 left!

0

34

Cub Cadet 703-07213

Clutch Retainer Assembly

Variations

Cub Cadet 703-07213-0637

RETAINER ASM - CLU - POWDER BLACK (0637)

$26.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 02002164

Fuel Hose Assembly includes:

$66.99

$

Usually ships in 3-6 days

0

35

Cub Cadet n/a

Hose, 1/4" Fuel Line (70 inches)

Note: (purchase locally)

$

$

Currently unavailable

35

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

35

Cub Cadet 01003473

Tee Fitting, Fuel

$7.49

$

In Stock, only 2 left!

0

36

Cub Cadet 02002253

Fuel Tank Groment

$4.99

$

In Stock, only 1 left!

0

37

Cub Cadet 02003417

Transmission Drive Pulley

$62.99

$

In Stock, Qty 8

0
