ENFORCER 54 (53AH3AGT050) - Cub Cadet 54" Zero-Turn Mower, 23hp Kohler Command Kohler CV23-75592 Engine Controls Parts Diagram

54" Zero-Turn Mower, 23hp Kohler Command

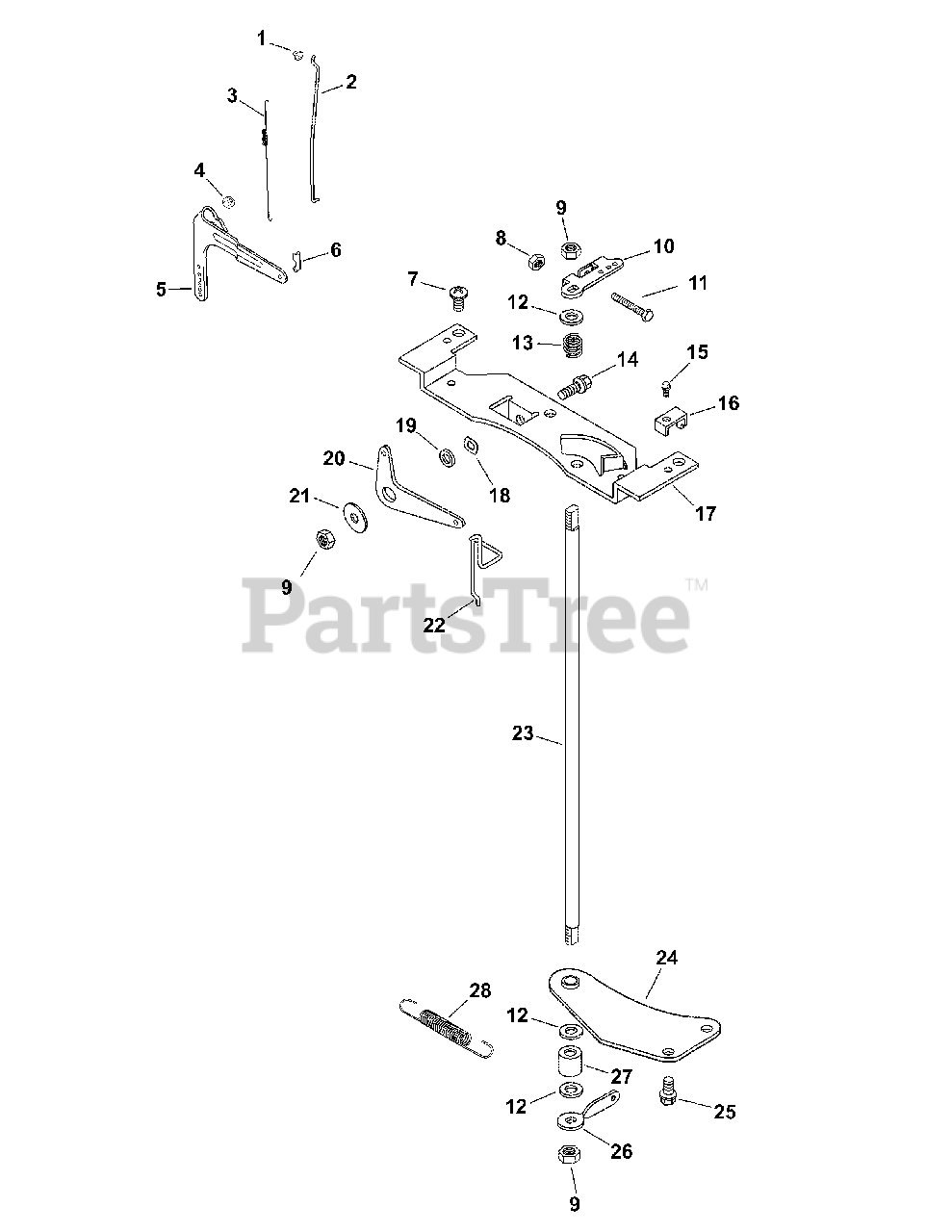

Kohler CV23-75592 Engine Controls Parts Diagram

  • Title

1

KH-25-158-08-S

Bolt, Rd Hd Sq Neck M6 x 1.0 x 25

$

$

Not available

2

Cub Cadet KH-24-079-04-S

Linkage, Throttle

$3.49

$

In Stock, Qty 6

0

3

KH-24-089-01-S

Spring, Linkage

$

$

Not available

4

Cub Cadet KH-M-641060-S

Nut, FLG M6 x 1.0

$4.49

$

In Stock, Qty 8

0

5

Cub Cadet KH-24-090-51-S

Lever, Governor
(Superseded to KH-24-090-69-S)

$8.99

$

In Stock, only 1 left!

0

6

KH-25-158-11-S

Bushing, Throttle Linkage

$

$

Not available

7

Cub Cadet KH-24-086-06-S

Screw, Phl Hd 11-16 x 3/4"

$

$

Currently unavailable

8

Cub Cadet KH-M-446030-S

Nut, M4 x 0.7

$2.49

$

In Stock, only 4 left!

0

9

Cub Cadet KH-M-647060-S

Nut, Lock M6 x 1.0

$

$

Currently unavailable

10

Cub Cadet KH-24-090-09-S

Lever, Throttle Control

$

$

Currently unavailable

11

Cub Cadet KH-M-401030-S

Screw, Cap M4 x 0.7 x 30

$

$

Currently unavailable

12

Cub Cadet KH-X-25-72-S

Washer, Flat 1/4"

$

$

Currently unavailable

13

Cub Cadet KH-24-089-20-S

Spring, Throttle Shaft

$

$

Currently unavailable

14

Cub Cadet KH-M-639016-S

Screw, Flg M6x1.0x16

$2.49

$

In Stock, Qty 6

0

15

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5 x 0.8 x 16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

16

KH-12-237-01-S

Clamp, Cable

$

$

Not available

17

Cub Cadet KH-24-126-111-S

Bracket, Control
(Superseded to KH-24-126-219-S)

$37.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KH-277341-S

Washer, Spring 3/8"

$

$

Currently unavailable

19

Cub Cadet KH-25-431-01-S

Spacer

$7.49

$

Usually ships in 2-5 days

0

20

Cub Cadet KH-24-090-20-S

Lever, Choke

$

$

Currently unavailable

21

Cub Cadet KH-X-25-52-S

Washer, Flat 1/4"

$

$

Currently unavailable

22

Cub Cadet KH-24-079-10-S

Linkage, Choke

$

$

Currently unavailable

23

Cub Cadet KH-24-144-11-S

Shaft, Throttle

$

$

Currently unavailable

24

Cub Cadet KH-24-126-162-S

Bracket, Throttle Shaft

$8.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KH-M-645016-S

Screw, Flg Thd Frm M6 x 1.0 x16

$3.99

$

In Stock, Qty 15

0

26

Cub Cadet KH-24-090-12-S

Lever, Throttle Control

$

$

Currently unavailable

27

Cub Cadet KH-24-112-10-S

Spacer

$

$

Currently unavailable

28

Cub Cadet KH-24-089-46-S

Spring, Governor

$8.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-211-03-S

Bolt, Rd Hd Sq Neck M6x1.0x25

Note: (not shown)

$2.49

$

In Stock, Qty 15

0
