ENFORCER 54 (53AH3AGT050) - Cub Cadet 54" Zero-Turn Mower, 23hp Kohler Command Kohler CV23-75592 Crankcase Parts Diagram

54" Zero-Turn Mower, 23hp Kohler Command

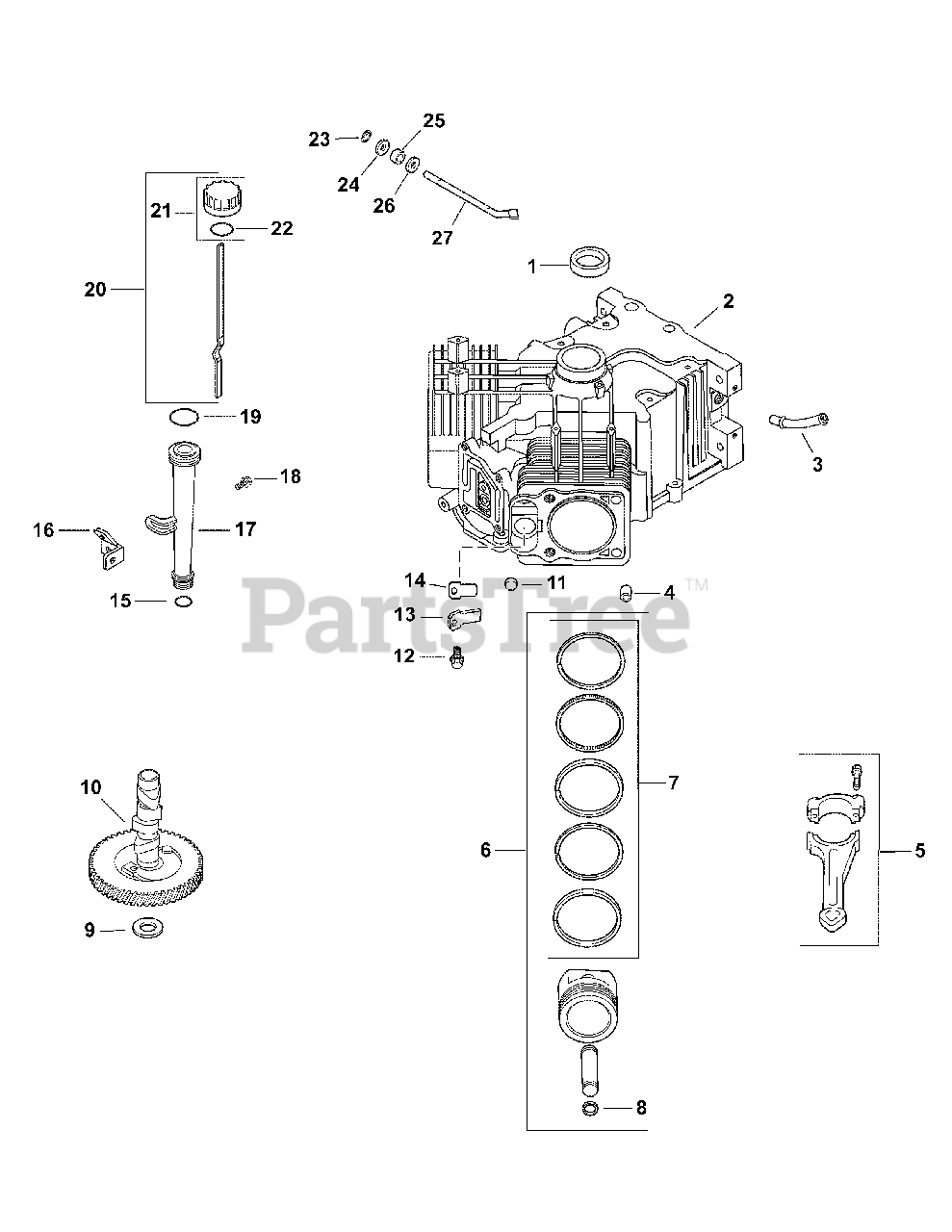

Kohler CV23-75592 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-24-032-01-S

Seal, Oil
(Superseded to KH-24-032-19-S)

$7.49

$

In Stock, Qty 20+

0

2

Crankcase (use: Sortblock or Mini Block)

$

$

Not available

2

Cub Cadet KH-24-522-393

Shortblock

$

$

Not available

2

Cub Cadet KH-24-782-14

Mini Block

$

$

Not available

3

Cub Cadet KH-24-294-13-S

Fitting

$

$

Currently unavailable

4

Cub Cadet KH-24-380-16-S

Pin, Locating

$4.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-24-067-24-S

Connecting Rod (STD)
(Superseded to KH-25-067-04-S)

$59.99

$

In Stock, only 4 left!

0

5

Cub Cadet KH-24-067-25-S

Connecting Rod (.25)
(Superseded to KH-24-067-29-S)

$59.99

$

In Stock, only 1 left!

0

6

Cub Cadet KH-24-874-34-S

Kit, Piston w/ Ring (STD)
(Superseded to KH-24-874-54-S)

Note: (Includes Ref No. 7, 8)

$250.99

$

In Stock, only 3 left!

0

6

Cub Cadet KH-24-874-35-S

Kit, Piston w/ Ring (.08)
(Superseded to KH-24-874-43-S)

$

$

Not available

6

Cub Cadet KH-24-874-36-S

Kit, Piston w/ Ring (.25)
(Superseded to KH-24-874-56-S)

$289.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-24-874-37-S

Kit, Piston w/ Ring (.50)
(Superseded to KH-24-874-45-S)

$289.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-18-S

Ring Set, Piston (STD)

$

$

Not available

7

Cub Cadet KH-24-108-19-S

Ring Set, Piston (.08)
(Superseded to KH-24-108-27-S)

$146.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-24-108-20-S

Ring Set, Piston (.25)

$

$

Not available

7

Cub Cadet KH-24-108-21-S

Ring Set, Piston (.50)

$

$

Not available

8

Cub Cadet KH-24-018-01-S

Retainer, Piston Pin

$2.99

$

In Stock, Qty 7

0

9

Cub Cadet KH-12-422-09-S

Shim, Camshaft (Red .032)

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-13-S

Shim, Camshaft (Black .04)

Note: (as required)

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-07-S

Shim, Camshaft (White .028)

Note: (as required)

$4.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-08-S

Shim, Camshaft (Blue .03)

Note: (as required)

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet KH-12-422-10-S

Shim, Camshaft (Yellow .034)

Note: (as required)

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-12-422-11-S

Shim, Camshaft (Green .036)

Note: (as required)

$2.49

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-12-422-12-S

Shim, Camshaft (Gray .038)

Note: (as required)

$2.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-24-012-10-S

Kit, Camshaft
(Superseded to KH-24-012-23-S)

Note: (Includes Lubricant)

$164.99

$

Usually ships in 3-6 days

0

11

Cub Cadet KH-52-139-09-S

Plug, Cup

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet KH-M-545010-S

Screw, Flg Thd Frm M5x0.8x10

$

$

Currently unavailable

13

Cub Cadet KH-24-018-04-S

Retainer, Breather Reed

$2.49

$

In Stock, only 2 left!

0

14

Cub Cadet KH-24-402-05-S

Reed, Breather
(Superseded to KH-24-402-07-S)

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-12-153-01-S

O-Ring, Lower Oil Fill Tube

$4.99

$

In Stock, Qty 16

0

16

Cub Cadet KH-24-126-19-S

Bracket, Oil Fill Tube

$

$

Currently unavailable

17

Cub Cadet KH-12-123-35-S

Tube, Oil Fill
(Superseded to KH-32-755-04-S)

$

$

Not available

18

Cub Cadet KH-M-545016-S

Screw, Flg Thd Frm M5x0.8x16
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-12-153-02-S

O-Ring, Upper Oil Fill Tube

$2.49

$

In Stock, Qty 8

0

20

Cub Cadet KH-24-038-04-S

Dipstick, Assy

Note: (Includes Ref No. 21, 22)

$19.99

$

In Stock, only 1 left!

0

21

Cub Cadet KH-24-755-46-S

Kit, Oil Fill Cap

Note: (Includes Ref No. 22)

$

$

Currently unavailable

22

Cub Cadet KH-25-153-02-S

O-Ring, Dipstick

$2.49

$

In Stock, only 1 left!

0

23

Cub Cadet KH-24-018-09-S

Retainer Ring

$2.49

$

Usually ships in 2-5 days

0

24

Cub Cadet KH-M-931010-S

Washer, Flat 9MM

$2.49

$

In Stock, only 2 left!

0

25

Cub Cadet KH-28-032-09-S

Seal, Governor Cross Shaft

$3.49

$

In Stock, Qty 6

0

26

Cub Cadet KH-24-468-15-S

Washer, Flat 1/4" (Bottom)

$2.49

$

In Stock, Qty 5

0

27

Cub Cadet KH-24-144-38-S

Shaft, Governor Cross
(Superseded to KH-24-144-39-S)

$41.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-25-357-14-S

Lubricant, Camshaft

Note: (Not shown)

$2.49

$

In Stock, only 3 left!

0
