ENFORCER 48 (53BI3AGV050) - Cub Cadet 48" Zero-Turn Mower, 21hp Kawasaki Drive Train Assembly Parts Diagram

48" Zero-Turn Mower, 21hp Kawasaki

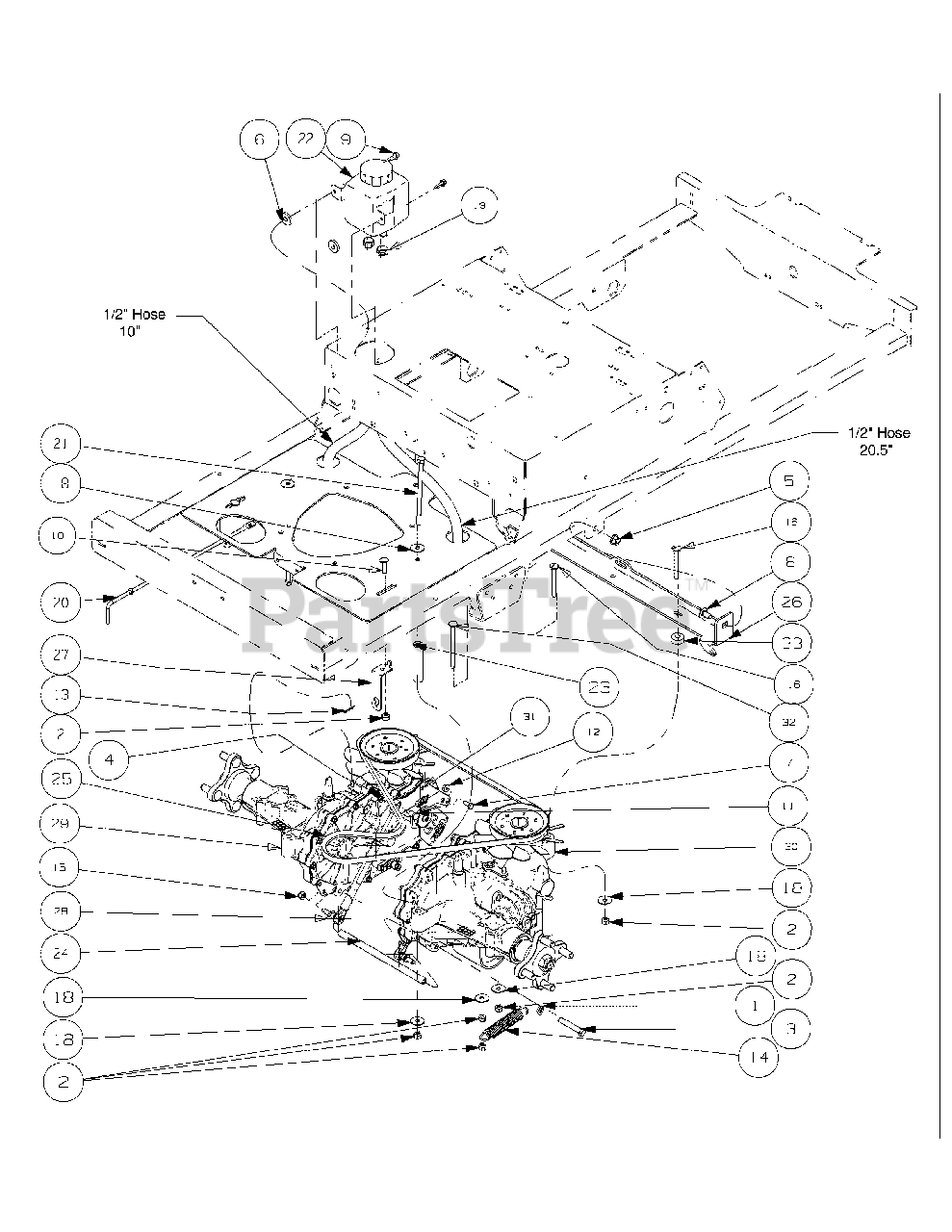

Drive Train Assembly Parts Diagram

  • Title

1

Cub Cadet 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 912-0429

Nylock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 00012172

Hex Cap Screw, 3/8-16 x 2.00
(Superseded to 710-3096)

$7.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 712-04177

Nut, 1/4-28, SS, Nylon Insert

$6.99

$

In Stock, only 4 left!

0

5

Cub Cadet 00022560

Nut, Flange Lock, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00083192

Idler Washer
(Superseded to 736-0258)

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3178

Carriage Bolt, 3/8-16

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 01000641

Carriage Bolt, 5/16-18 x 1.00

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 01001919

Shoulder Screw, 1/4-28
(Superseded to 938-0826)

$12.99

$

In Stock, Qty 5

0

12

Cub Cadet 912-3027

Nut, 1/4-20, Hex Flange Lock Nut

$4.49

$

In Stock, Qty 17

0

13

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Lg
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01002874

Extension Spring, .865 OD x 4.68 Long

$11.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01003561

Nut, Hex, Center Lock, M8

$

$

Not available

16

Cub Cadet 01005340

Carriage Bolt, 5/16-18 x 2.75
(Superseded to 710-06075)

$6.99

$

In Stock, only 1 left!

0

17

Cub Cadet n/a

Fuel Hose, .50 ID x .75 OD (30.5 inches)

Note: (purchase locally)

$

$

Currently unavailable

18

Cub Cadet 01009937

Washer, 5/16 x 1.06

$

$

Not available

19

Cub Cadet 02001111

Hose Clamp

$6.99

$

In Stock, only 2 left!

0

20

Cub Cadet 02001332

Pump Rod

$23.99

$

In Stock, only 1 left!

0

21

Cub Cadet 02001556

Hex Cap Screw, 5/16-18 x 6.00
(Superseded to 710-06071)

$5.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 631-04286

Hydraulic Tank

$41.99

$

In Stock, only 1 left!

0

23

Cub Cadet 02002646

Spacer, .375 ID x .75 OD x 3.30

$11.99

$

In Stock, only 4 left!

0

24

Cub Cadet 02002647

Transmission Support Tube

$

$

Not available

25

Cub Cadet 02002648

V-Belt, 58.4
(Superseded to 02002648P)

$48.99

$

In Stock, only 3 left!

0

26

Cub Cadet 02002679-0637

Transmission Front Mounting Bracket

$101.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02002965-0637

Neutral Bracket

$6.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02003622

Cylinder Return to Neutral

$94.99

$

In Stock, Qty 5

0

29

Cub Cadet 02004677P

IZT Transmission

$1925.99

$

Usually ships in 3-6 days

0

29

Cub Cadet HG-52114P

Filter

Note: (not shown)

$32.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02004676P

IZT Transmission

$1925.99

$

Usually ships in 3-6 days

0

30

Cub Cadet HG-52114P

Filter

Note: (not shown)

$32.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02004681

Return to Neutral Bracket

$

$

Not available

32

Cub Cadet 02005326

Carriage Bolt, 5/16-18 x 4.00
(Superseded to 710-06027)

$3.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 750-3119

Spacer .406 ID x 1.0 OD

$11.99

$

In Stock, only 4 left!

0
