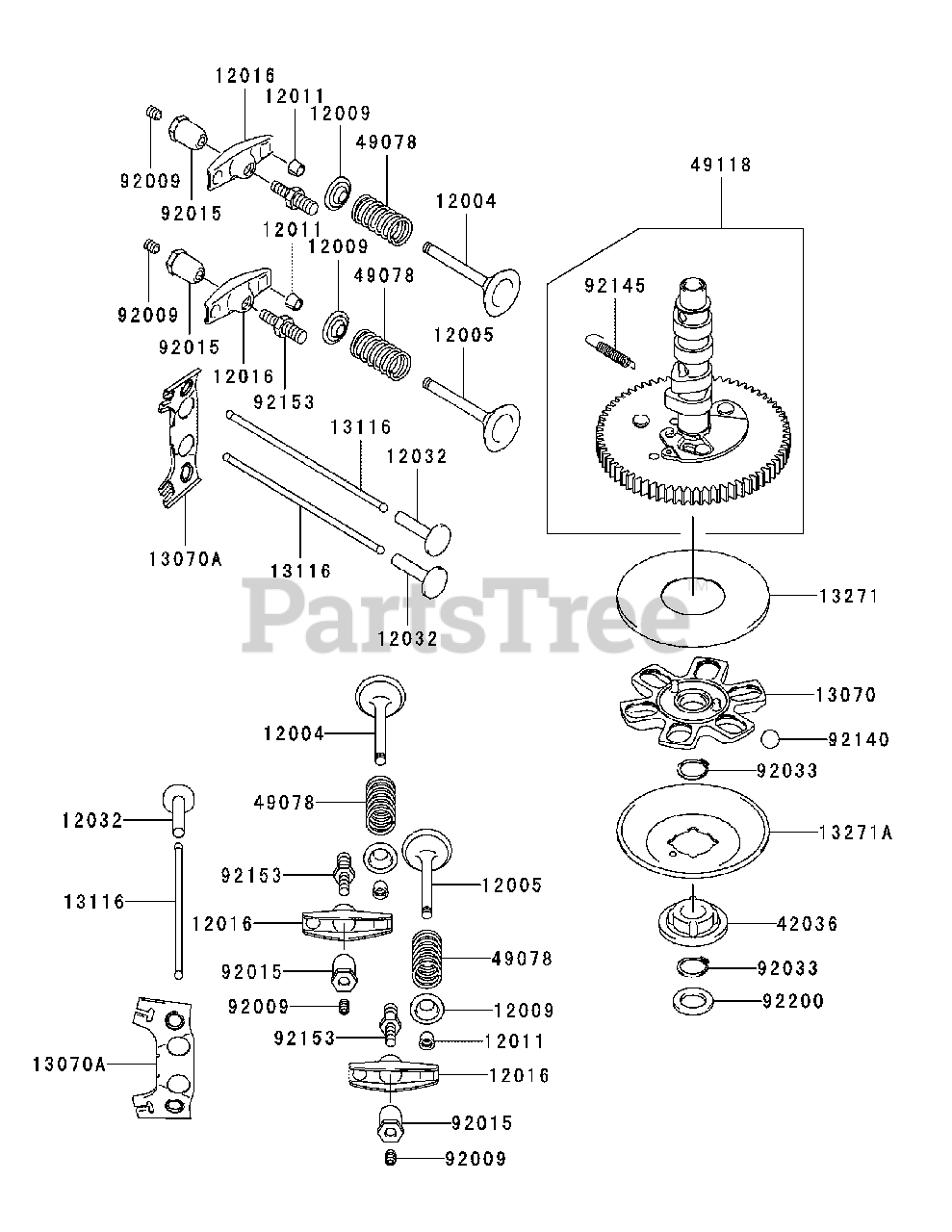

ENFORCER 48 (53AI3AGV750) - Cub Cadet 48" Zero-Turn Mower, 21hp Kawasaki FH641V-AW04 Valve & Camshaft Parts Diagram

48" Zero-Turn Mower, 21hp Kawasaki

FH641V-AW04 Valve & Camshaft Parts Diagram

  • Title

12004

Cub Cadet KM-12004-7002

Valve-Intake

$18.99

$

In Stock, only 2 left!

0

12005

Cub Cadet KM-12005-7004

Valve-Exhaust

$43.99

$

In Stock, Qty 20+

0

12009

Cub Cadet KM-12009-7001

Retainer-Valve-Spring

$2.49

$

In Stock, Qty 5

0

12011

Cub Cadet KM-12011-2056

Collet

$2.99

$

In Stock, Qty 20+

0

12016

Cub Cadet KM-12016-7007

Arm-Rocker

$7.99

$

In Stock, Qty 20+

0

12032

Cub Cadet KM-12032-7001

Tappet

$8.99

$

In Stock, only 3 left!

0

13070

Cub Cadet KM-13070-7004

Guide

$5.99

$

In Stock, only 2 left!

0

13070A

Cub Cadet KM-13070-7007

Guide

$4.99

$

Usually ships in 2-5 days

0

13116

Cub Cadet KM-13116-7002

Rod-Push

$4.99

$

In Stock, Qty 20+

0

13271

Cub Cadet KM-13271-7007

Plate

$5.49

$

In Stock, only 3 left!

0

13271A

Cub Cadet KM-13271-7021

Plate,Governor

$5.49

$

In Stock, Qty 13

0

42036

Cub Cadet KM-42036-7010

Sleeve

$5.99

$

In Stock, only 1 left!

0

49078

Cub Cadet KM-49078-7002

Spring-Engine Valve

$6.99

$

In Stock, only 4 left!

0

49118

Cub Cadet KM-99999-7074

Camshaft-Comp

$109.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-2341

Screw

$2.49

$

In Stock, only 3 left!

0

92015

Cub Cadet KM-92015-2253

Nut

$4.49

$

In Stock, only 4 left!

0

92033

Cub Cadet KM-92033-7001

Ring-Snap
(Superseded to KM-92033-0778)

$0.99

$

In Stock, Qty 9

0

92140

Cub Cadet KM-92140-7005

Ball
(Superseded to KM-92140-0026)

$2.49

$

Usually ships in 3-6 days

0

92145

Cub Cadet KM-92145-7001

Spring
(Superseded to KM-92145-1653)

$1.49

$

In Stock, only 4 left!

0

92153

Cub Cadet KM-92153-7019

Bolt

$2.49

$

Usually ships in 2-5 days

0

92200

Cub Cadet KM-92200-7001

Washer

$1.99

$

In Stock, Qty 11

0
