ENFORCER 48 (53AH3AGN050) - Cub Cadet 48" Zero-Turn Mower, 22hp Kohler Command Front Caster & Tire Assembly 48-Inch Parts Diagram

48" Zero-Turn Mower, 22hp Kohler Command

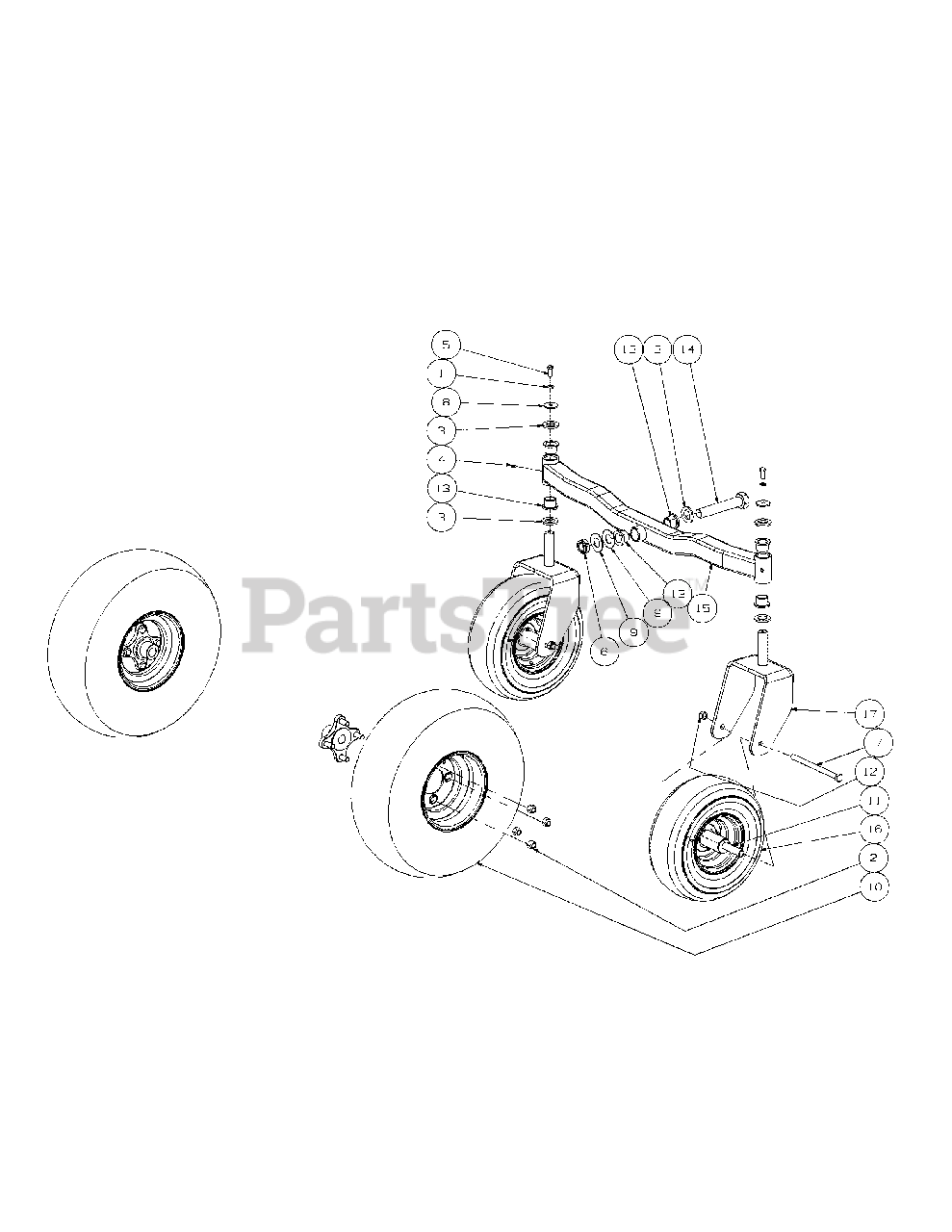

Front Caster & Tire Assembly 48-Inch Parts Diagram

  • Title

1

Cub Cadet 936-0169

Lock Washer, 3/8 Zinc
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 712-04311

Lug Nut, 1/2-20

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 00023822

Washer Special
(Superseded to 936-0274)

$8.99

$

In Stock, Qty 14

0

4

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

5

Cub Cadet 710-3001

Hex Cap Screw, 3/8-16 x .88

$7.49

$

In Stock, Qty 9

0

6

Cub Cadet 01000678

Nut Jam, 1.0-14, Nylon Insert
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

7

Cub Cadet 01006961

Hex Cap Screw, 1/2-20 x 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 10

0

8

Cub Cadet 01009253

Flat Washer, .390 x 1.5 x .134
(Superseded to 936-0227)

$

$

Not available

9

Cub Cadet 02000588

Flat Washer, 1.00 ID x 2.25 OD x ,075
(Superseded to 736-04605)

$4.49

$

In Stock, Qty 12

0

10

Cub Cadet 634-04495

Wheel Assembly, 20 x 8-10 NHS

$448.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 750-04775A

Wheel Spacer

$28.99

$

In Stock, Qty 20+

0

12

Cub Cadet 02002299

Lock Nut, Nylon Insert, 1/2-20
(Superseded to 712-04316)

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 741-04488

Flange Bearing, 1.001 x 1.25

$9.49

$

In Stock, Qty 20+

0

14

Cub Cadet 02003804

Hex Cap Screw, 1-14 x 5.5
(Superseded to 710-06026)

$46.99

$

In Stock, only 1 left!

0

15

Cub Cadet 02004600-0637

Front Axle Assembly

$131.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02005000

Wheel Assembly 13 x 5.00-6

$

$

Not available

17

Cub Cadet 02005001-0637

Castor Wheel Mounting Bracket

$105.99

$

In Stock, only 2 left!

0
