ENFORCER 48 (53AH3AGN050) - Cub Cadet 48" Zero-Turn Mower, 22hp Kohler Command Fabricated Spindle Assembly 48-Inch Parts Diagram

48" Zero-Turn Mower, 22hp Kohler Command

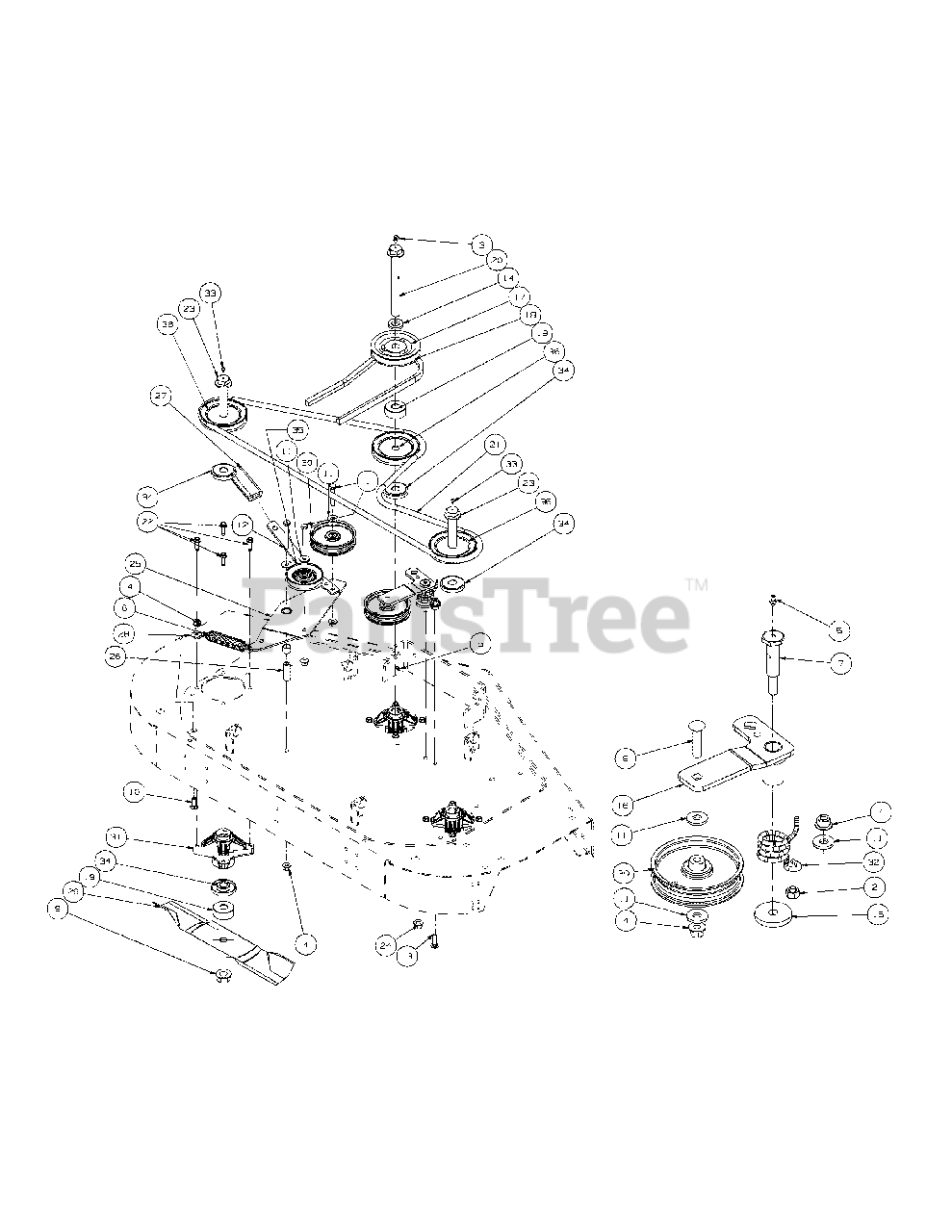

Fabricated Spindle Assembly 48-Inch Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 912-3017

Hex Nut 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 737-3004

Grease Fitting, 90°

$11.99

$

In Stock, Qty 6

0

4

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

6

Cub Cadet 01000199

Extension Spring, 1.0 OD x 5.00

$17.99

$

In Stock, only 4 left!

0

7

Cub Cadet 01000302

Shoulder Screw, 7/16-14
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

8

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

9

Cub Cadet 712-3078

Hex Flange Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-3052

Flat Washer, .406 ID x 1.0 OD x .105

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3022

Hex Cap Screw 3/8-16 x 2.75

$4.99

$

In Stock, Qty 7

0

13

Cub Cadet 710-3034

Carraige Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

14

Cub Cadet 01003123

Spacer, .812 ID x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01003269

Flat Washer, 7/16 ID x 1.75 OD
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

16

Cub Cadet 01005737

Idler Arm Assembly, Deck Spindle includes:

$108.99

$

In Stock, only 2 left!

0

16

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18

0

17

Cub Cadet 01005202

V-Pulley, 4.75 OD

$126.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01009787

V-Belt, B-Section
(Superseded to 01009787P)

$114.99

$

In Stock, only 1 left!

0

19

Cub Cadet 750-05184

Spacer .760 ID x 2.00 OD x 0.790

$37.99

$

In Stock, only 4 left!

0

20

Cub Cadet 02000071

Spindle Bolt, 3/4-16 x 7.155

$39.99

$

In Stock, only 4 left!

0

21

Cub Cadet 02000154

V-Belt, A-Section
(Superseded to 02000154P)

$89.99

$

In Stock, only 1 left!

0

22

Cub Cadet 02000762

Self Tapping Screw 5/16-18 x 1.00
(Superseded to 710-0602)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 02000819

Spindle Bolt 3/4-16 x 5.37

$36.99

$

In Stock, only 1 left!

0

24

Cub Cadet 02000948

Nut, 7/16-20, FlangeLock
(Superseded to 712-04337)

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02003795

Idler Arm Assembly, Double, includes:

$

$

Not available

25

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18

0

25

Cub Cadet 853-000029

Idler Arm Assembly, Double, includes:

$

$

Not available

25

Cub Cadet 01000308

Bearing
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18

0

26

Cub Cadet 02003640

Spacer, .39 ID x .625 OD x 1.875

$6.99

$

In Stock, Qty 10

0

27

Cub Cadet 02003740

Grip, 1.0 x 3.2 x .25

$10.99

$

In Stock, only 1 left!

0

28

Cub Cadet 02004195

Tension Spring Bracket

$31.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02005017

Blade, 17.0, Hi-Lift, 0.756 ID
(Superseded to 942-04417)

$28.99

$

In Stock, Qty 20+

0

30

Cub Cadet 02005077

Flat Pulley

$35.99

$

In Stock, Qty 20+

0

31

Cub Cadet 918-04426

Spindle Assembly

$112.99

$

In Stock, Qty 20+

0

32

Cub Cadet 732-3067

Idler Torsion Spring

$23.99

$

In Stock, only 1 left!

0

33

Cub Cadet 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 748-3065A

Spindle Spacer

$13.99

$

In Stock, Qty 14

0

35

Cub Cadet 02005078

V-Pulley, 3.5 OD

$36.99

$

In Stock, only 4 left!

0

36

Cub Cadet 756-3089

Pulley

$36.99

$

In Stock, only 3 left!

0
