ENFORCER 48 (53AH3AGN050) - Cub Cadet 48" Zero-Turn Mower, 22hp Kohler Command Fabricated Deck 48-Inch Parts Diagram

48" Zero-Turn Mower, 22hp Kohler Command

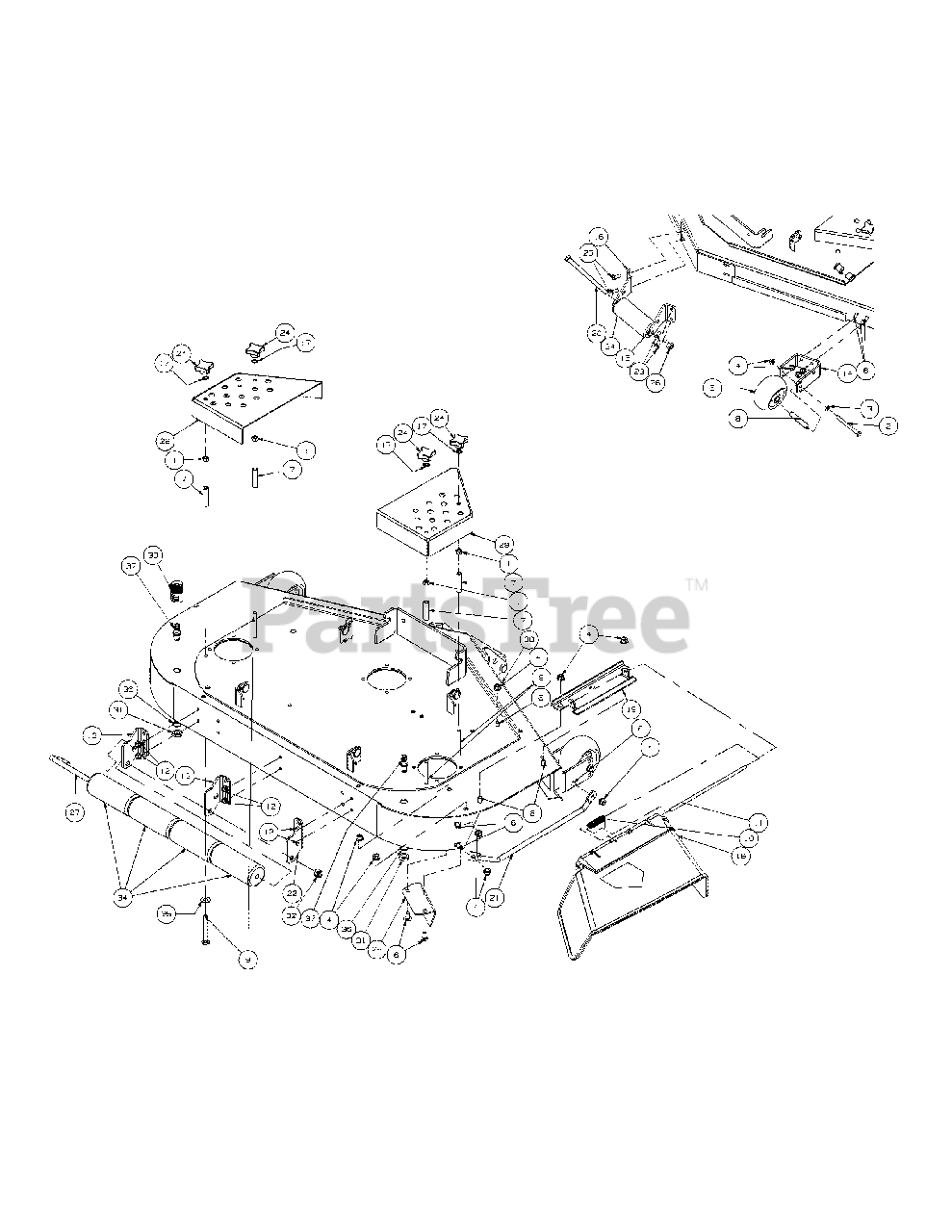

Fabricated Deck 48-Inch Parts Diagram

  • Title

1

Cub Cadet 912-3017

Nut, 3/8-16, Hex
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 00011925

Hex Cap Screw, 3/8-16, 3.75
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

3

Cub Cadet 00012158

Washer

$4.49

$

In Stock, Qty 9

0

4

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 634-3159

Complete Wheel, 5.00 Dia

$34.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3178

Carriage Bolt 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01000395

Spacer

$

$

Not available

8

Cub Cadet 750-3193

Wheel Spacer

$18.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0521

Carriage Bolt, 3/8-16 x 3.50

$5.49

$

In Stock, Qty 10

0

10

Cub Cadet 732-04797

Torsion Spring

$11.99

$

In Stock, only 4 left!

0

11

Cub Cadet 747-3384

Chute Deflector Rod

$27.99

$

In Stock, only 1 left!

0

12

Cub Cadet 01004304

Self Tapping Screw, 5/16-18 x 1/2
(Superseded to 710-0773)

$7.49

$

In Stock, only 3 left!

0

13

Cub Cadet 01004707

Fabricted Deck Roller Mount Bracket

Variations

Cub Cadet 01004707-0637

Roller Mounting Bracket, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 13

0

Cub Cadet 01004707-4021

Roller Mounting Bracket - CUB YELLOW 2 (4021)

$23.99

$

In Stock, only 4 left!

0

$17.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 01005243

Front Anti-Scalp Wheel Mount Bracket

Variations

Cub Cadet 01005243-0637

Front Wheel Bracket - POWDER BLACK (0637)

$57.99

$

In Stock, only 2 left!

0

Cub Cadet 01005243-4021

Front Wheel Bracket - CUB YELLOW 2 (4021)

$57.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01005244

Left Hand Front Roller Mount Bracket

Variations

Cub Cadet 01005244-0637

Roller Bracket, LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 01005244-4021

Roller Bracket, LH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

16

Cub Cadet 01005245

Right Hand Front Roller Mount Bracket

Variations

Cub Cadet 01005245-0637

Roller Bracket, RH - POWDER BLACK (0637)

$36.99

$

In Stock, Qty 5

0

Cub Cadet 01005245-4021

Roller Bracket, RH - CUB YELLOW 2 (4021)

$36.99

$

In Stock, Qty 5

0

$28.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01005851

External Washer, 3/8
(Superseded to 736-0148)

$3.99

$

In Stock, only 3 left!

0

18

Cub Cadet 01006693P

Deflector Chute

$68.99

$

In Stock, Qty 8

0

19

Cub Cadet 01006748-0637

Deflector Chute Bracket

$35.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01006961

Hex Cap Screw, 1/2-20 x 7.50
(Superseded to 710-05385)

$11.99

$

In Stock, Qty 11

0

21

Cub Cadet 01008644

Fabricated Deck Finger Guard

$36.99

$

In Stock, only 1 left!

0

22

Cub Cadet 01008790

Grass Catcher Roller Bracket

Variations

Cub Cadet 01008790-0637

Roller Mounting Bracket, Black - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

Cub Cadet 01008790-4021

Roller Mounting Bracket - CUB YELLOW 2 (4021)

$37.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01009243

Self Tapping Screw, 3/8-16 x 0.875

$14.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02000040

Plastic Knob

$20.99

$

In Stock, only 2 left!

0

25

Cub Cadet 02001235-0637

Fabricated Deck, Chute Bracket

$31.99

$

In Stock, only 3 left!

0

26

Cub Cadet 02002299

Lock Nut, Nylon Insert, 1/2-20
(Superseded to 712-04316)

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02002799

J-Hook w/ Threaded Roller
(Superseded to 711-05664)

$22.99

$

In Stock, only 1 left!

0

28

Cub Cadet 02003605

Belt Cover, LH

Variations

Cub Cadet 02003605-4021

COVER-BELT LH 48" - CUB YELLOW 2 (4021)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 02003605-0637

Belt Cover, LH 48" Black - POWDER BLACK (0637)

$

$

Not available

$66.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02003606

Belt Cover, RH

Variations

Cub Cadet 02003606-0637

Belt Cover, RH 48" Black - POWDER BLACK (0637)

$118.99

$

Usually ships in 3-6 days

0

Cub Cadet 02003606-4021

COVER-BELT RH 48" - CUB YELLOW 2 (4021)

$

$

Not available

$110.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02005231

48 Fabricated Deck Assembly

Variations

Cub Cadet 02005231-0637

DECK ASM - 48" FAB - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 02005231-4021

DECK ASSY - 48" FAB - CUB YELLOW 2 (4021)

$

$

Not available

$

$

31

Cub Cadet 912-0641

Hex Nut, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

32

Cub Cadet 712-3083

Hex Nut, 1/2-13, Insert Lock

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

34

Cub Cadet 731-3005

Front Roller

$28.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0272

Washer, .510 x 1.00 x .060
(Superseded to 736-0272)

$4.99

$

In Stock, Qty 20+

0

36

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

37

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0
