ENFORCER 48 (53AH3AGN050) - Cub Cadet 48" Zero-Turn Mower, 22hp Kohler Command Control Assembly (2008 & Before) Parts Diagram

48" Zero-Turn Mower, 22hp Kohler Command

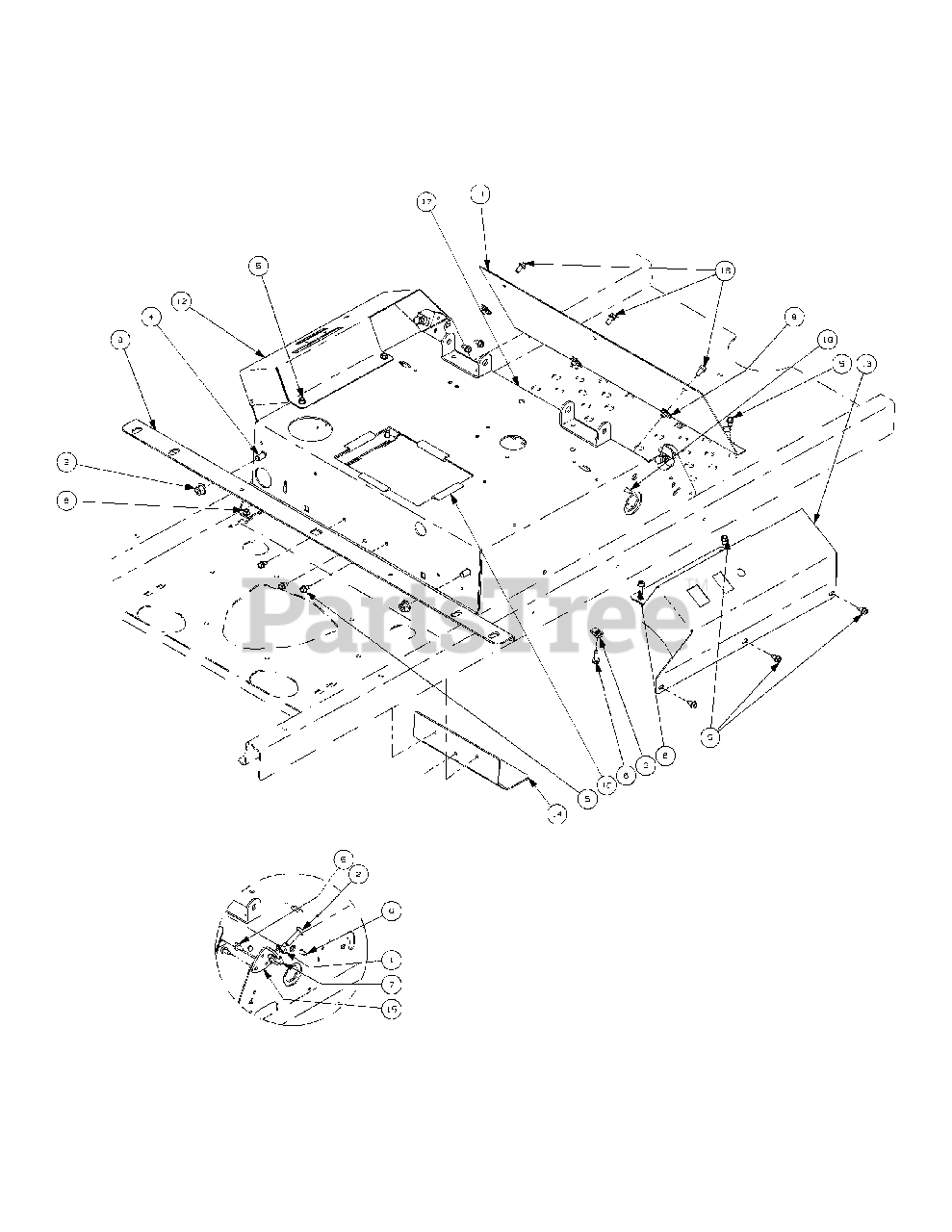

Control Assembly (2008 & Before) Parts Diagram

  • Title

1

Cub Cadet 00012166

Hex Nut, 5/16-18

$

$

Not available

2

Cub Cadet 00013116

HHCS, 5/16-18 x 1-1/4

$5.99

$

In Stock, only 1 left!

0

3

Cub Cadet 00022560

Hex Nut, 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-3178

Carriage Bolt, 3/8-16

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0599

Screw, 1/4-20 x 1/2

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 01003563

U-Nut, 5/16-18
(Superseded to 926-0211)

$4.49

$

In Stock, only 1 left!

0

8

Cub Cadet 01008490

Front Tank Mounting Bracket

Variations

Cub Cadet 01008490-0637

BRACKET-FRONT TANK - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 01008490-4021

BRACKET-FRONT TANK - CUB YELLOW 2 (4021)

$

$

Not available

$

$

9

Cub Cadet 01008539P

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 735-04130

Battery Edge Trim

$8.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 02002456

Front Panel

Variations

Cub Cadet 02002456-0637

PANEL-FRONT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 02002456-4021

PANEL-FRONT - CUB YELLOW 2 (4021)

$

$

Not available

$

$

12

Cub Cadet 02002735

Left Hand Control Console

Variations

Cub Cadet 02002735-0637

CONSOLE-CONTROL LH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 02002735-0638

CONSOLE-CONTROL LH - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 02002735-4021

CONSOLE-CONTROL LH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

13

Cub Cadet 02002736

Right Hand Control Console

Variations

Cub Cadet 02002736-0637

CONSOLE-CONTROL RH - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 02002736-0638

CONSOLE-CONTROL RH - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 02002736-4021

CONSOLE-CONTROL RH - CUB YELLOW 2 (4021)

$

$

Not available

$

$

14

Cub Cadet 02002744

Battery Bracket

Variations

Cub Cadet 02002744-0637

BRACKET-BATTERY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 02002744-4021

BRACKET-BATTERY - CUB YELLOW 2 (4021)

$

$

Not available

$

$

15

Cub Cadet 02002761

Forward/Reverse Stop Bracket

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 02003812

Screw, 1/4-20 x 1/2

$

$

Not available

17

Cub Cadet 02004348

Control Housing Weldment

Variations

Cub Cadet 02004348-0637

HOUSING-CONTROL - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 02004348-4021

HOUSING-CONTROL - CUB YELLOW 2 (4021)

$

$

Not available

$

$

18

Cub Cadet 710-04484

Self Tapping Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0
