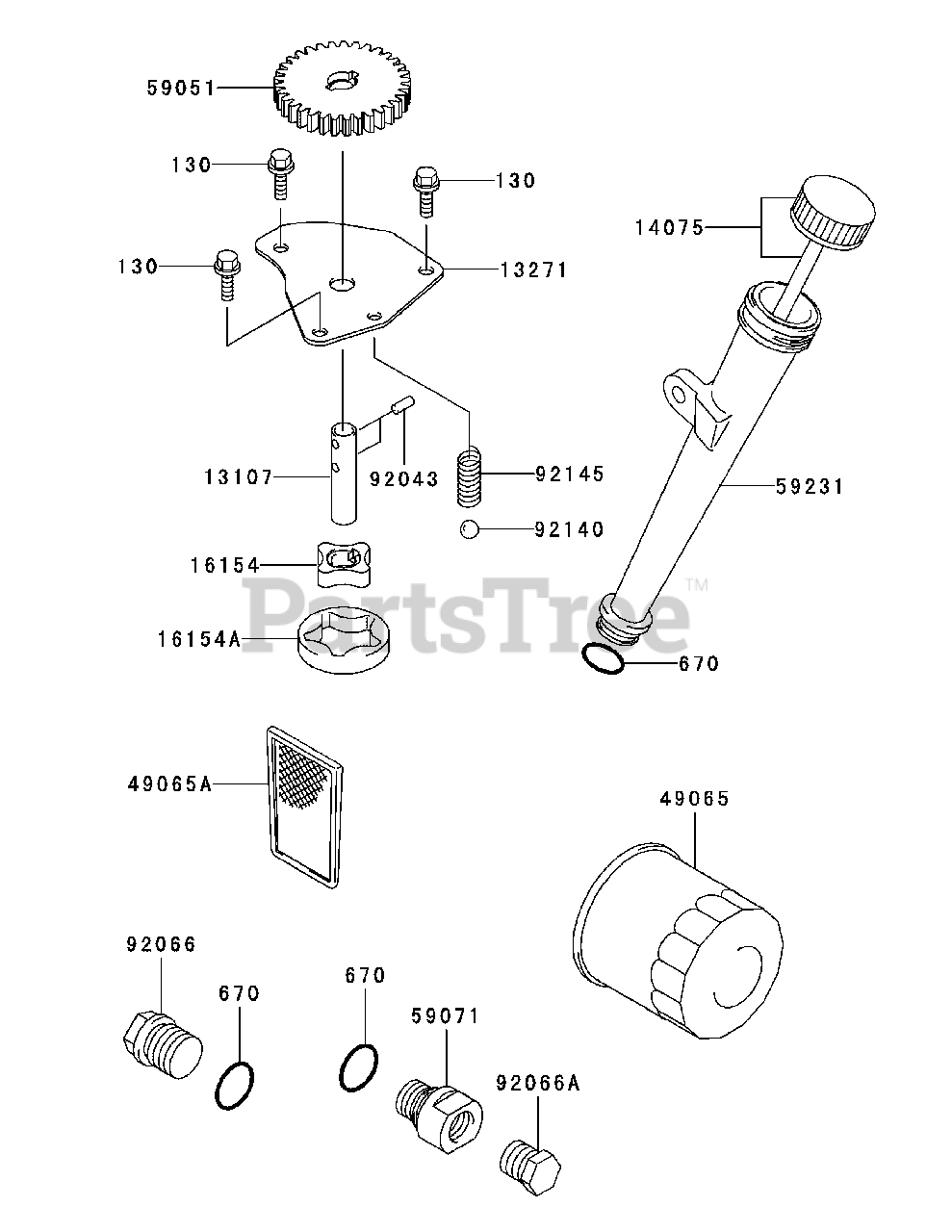

ENFORCER 44 (53AI3AGF750) - Cub Cadet 44" Zero-Turn Mower, 19hp Kawasaki FH580V-AS11 Lubrication Equipment Parts Diagram

44" Zero-Turn Mower, 19hp Kawasaki

FH580V-AS11 Lubrication Equipment Parts Diagram

  • Title

13107

Cub Cadet KM-13107-7009

SHAFT
(Superseded to KM-13107-0858)

$2.49

$

In Stock, only 3 left!

0

13271

Cub Cadet KM-13271-7017

PLATE

$4.99

$

Usually ships in 2-5 days

0

14075

Cub Cadet KM-14075-7009

CAP-ASSY
(Superseded to KM-14075-0708)

$10.99

$

In Stock, Qty 11

0

16154

Cub Cadet KM-16154-2053

ROTOR-PUMP,IN

$12.99

$

In Stock, only 2 left!

0

16154A

Cub Cadet KM-16154-2054

ROTOR-PUMP,OUT

$9.49

$

In Stock, only 2 left!

0

49065

Cub Cadet KM-49065-7010

FILTER-OIL
(Superseded to KM-49065-0724)

$18.99

$

In Stock, Qty 20+

0

49065A

Cub Cadet KM-49065-7004

FILTER-OIL SCREEN
(Superseded to KM-49065-0718)

$4.99

$

In Stock, Qty 20+

0

59051

Cub Cadet KM-59051-7011

GEAR-SPUR

$65.99

$

In Stock, only 1 left!

0

59071

Cub Cadet KM-59071-7004

JOINT
(Superseded to KM-59071-7023)

$8.99

$

In Stock, Qty 11

0

59231

Cub Cadet KM-59231-7005

FILLER

$5.99

$

In Stock, Qty 5

0

92043

Cub Cadet KM-92043-7003

PIN
(Superseded to KM-92042-014)

$0.99

$

In Stock, Qty 11

0

92066

Cub Cadet KM-92066-7003

PLUG
(Superseded to KM-92066-0774)

$5.49

$

In Stock, Qty 20+

0

92066A

Cub Cadet KM-92066-7006

PLUG
(Superseded to KM-92066-0827)

$1.49

$

In Stock, only 3 left!

0

92140

Cub Cadet KM-92140-7003

BALL

$1.49

$

In Stock, Qty 13

0

92145

Cub Cadet KM-92145-7002

SPRING

$

$

Not available

130

Cub Cadet KM-130BA0612

BOLT-FLANGED

$1.99

$

In Stock, Qty 20+

0

670

Cub Cadet KM-670D2016

O RING,16MM

$1.99

$

In Stock, Qty 20+

0
