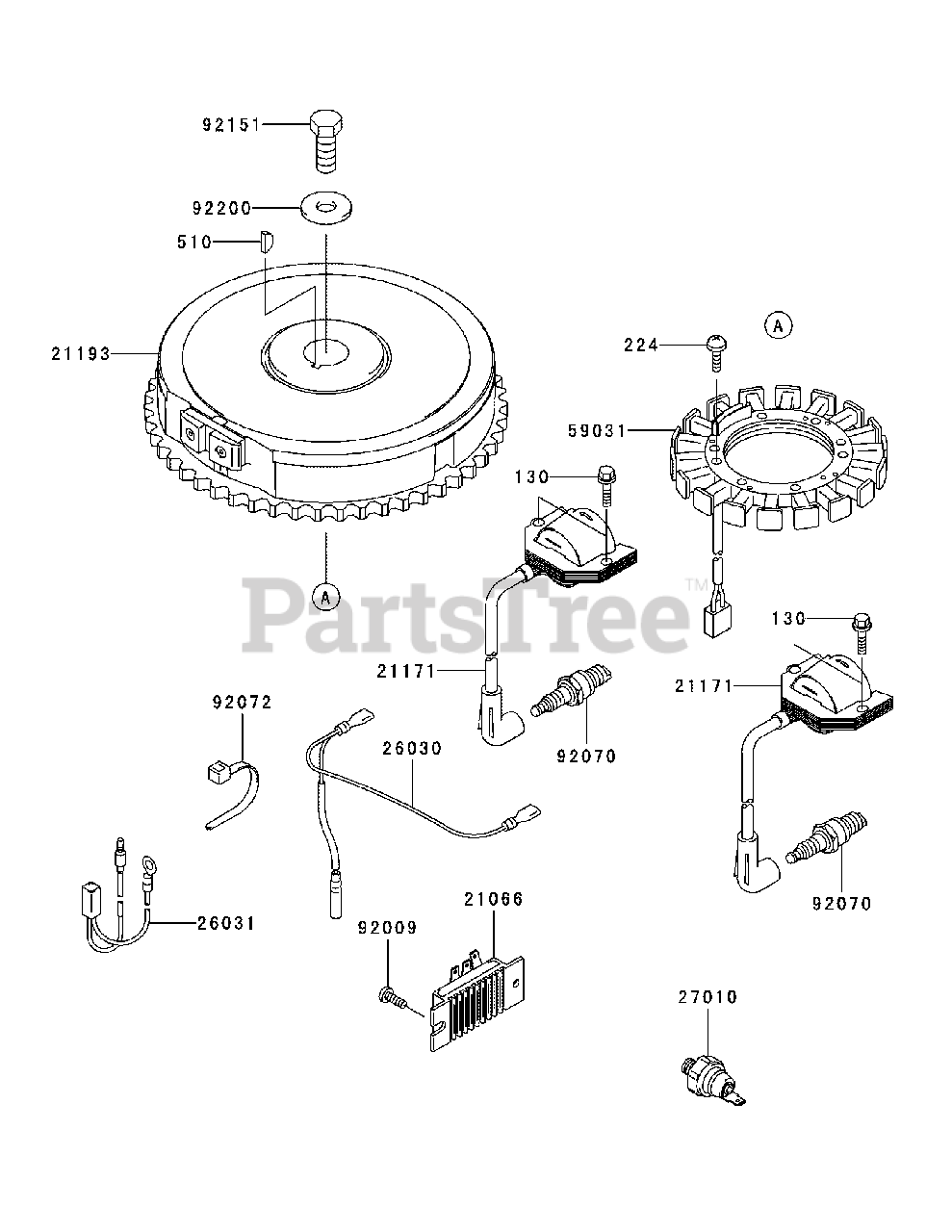

ENFORCER 44 (53AI3AGF750) - Cub Cadet 44" Zero-Turn Mower, 19hp Kawasaki FH580V-AS11 Electric Equipment Parts Diagram

44" Zero-Turn Mower, 19hp Kawasaki

FH580V-AS11 Electric Equipment Parts Diagram

  • Title

21066

Cub Cadet KM-21066-7011

REGULATOR-VOLTAGE

$77.99

$

In Stock, Qty 20+

0

21171

Cub Cadet KM-21171-7034

COIL-ASSY-IGNITION

$81.99

$

In Stock, Qty 20+

0

21193

Cub Cadet KM-21193-7007

FLYWHEEL-ASSY

$

$

Not available

26030

Cub Cadet KM-26030-7001

HARNESS

$10.99

$

In Stock, Qty 11

0

26031

Cub Cadet KM-26031-7002

HARNESS

$

$

Not available

27010

Cub Cadet KM-27010-7002

SWITCH
(Superseded to KM-27010-0818)

$23.99

$

In Stock, Qty 6

0

59031

Cub Cadet KM-59031-7014

COIL-CHARGING
(Superseded to KM-59031-7009)

$128.99

$

In Stock, Qty 18

0

92009

Cub Cadet KM-92009-2308

SCREW

$0.99

$

In Stock, Qty 10

0

92070

Cub Cadet TC-611049

PLUG-SPARK

$4.99

$

In Stock, Qty 20+

0

92072

Cub Cadet KM-92072-7003

BAND

$1.49

$

In Stock, Qty 5

0

92151

Cub Cadet KM-92154-7003

BOLT,12X30

$4.99

$

In Stock, Qty 19

0

92200

Cub Cadet KM-92200-7002

WASHER

$3.49

$

In Stock, Qty 10

0

130

Cub Cadet KM-130CA0620

BOLT-FLANGED

$

$

Not available

224

Cub Cadet KM-224B0520

SCREW-PAN-WP-CROS
(Superseded to KM-224AA0520)

$0.99

$

In Stock, Qty 17

0

510

Cub Cadet KM-510A5100

KEY-WOODRUFF

$3.49

$

In Stock, Qty 20+

0
