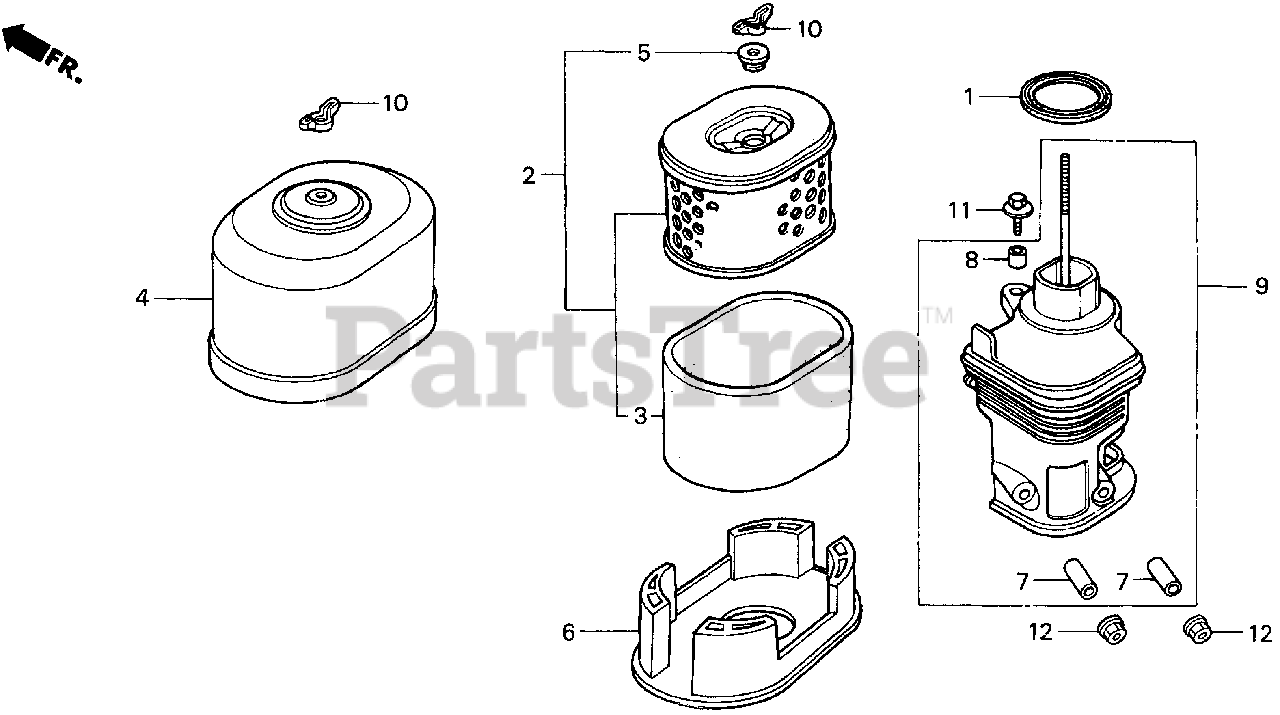

EN5000 A (EZGC) - Honda Generator, Made in Japan (SN: EZGC-1000001 - EZGC-9999999) AIR CLEANER Parts Diagram

Generator, Made in Japan

AIR CLEANER Parts Diagram

  • Title

1

Honda 16271-ZE2-000

SEE PART DETAILS - SUP; GASKET, ELBOW
(Superseded to 16271-ZE2-010)

$3.49

$

In Stock, Qty 5

0

1

Honda 16271-ZE2-010

SEE PART DETAILS - PRI; GASKET, ELBOW

$3.49

$

In Stock, Qty 5

0

2

Honda 17210-ZE3-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$21.99

$

In Stock, Qty 20+

0

3

Honda 17218-ZE3-000

SEE PART DETAILS - SUP; FILTER (OUTER)
(Superseded to 17218-ZE3-505)

$

$

Not available

3

Honda 17218-ZE3-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-ZE3-000)

$

$

Not available

4

Honda 17230-ZE3-000

COVER, AIR CLEANER (STD)

$37.99

$

In Stock, only 1 left!

0

5

Honda 17232-891-000

GROMMET, AIR CLEANER

$5.99

$

In Stock, Qty 15

0

6

Honda 17235-ZE3-000

NOSE, MUFFLER

$20.99

$

Usually ships in 3-6 days

0

7

Honda 17238-ZE2-310

SEE PART DETAILS - PRI; COLLAR, AIR CLEANER

$4.99

$

In Stock, Qty 10

0

8

Honda 17239-ZE1-000

COLLAR B, AIR CLEANER

$4.99

$

In Stock, Qty 7

0

9

Honda 17410-ZE3-010

SEE PART DETAILS - SUP; ELBOW, AIR CLEANER
(Superseded to 17410-ZE3-020)

$50.99

$

Usually ships in 3-6 days

0

10

Honda 90325-044-000

SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

11

Honda 90009-ZE2-003

BOLT-WASHER (6X22)

$2.49

$

In Stock, only 1 left!

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
