EN3500 A (EZGB) - Honda Generator, Made in Japan (SN: EZGB-1000001 - EZGB-9999999) RECOIL STARTER Parts Diagram

Generator, Made in Japan

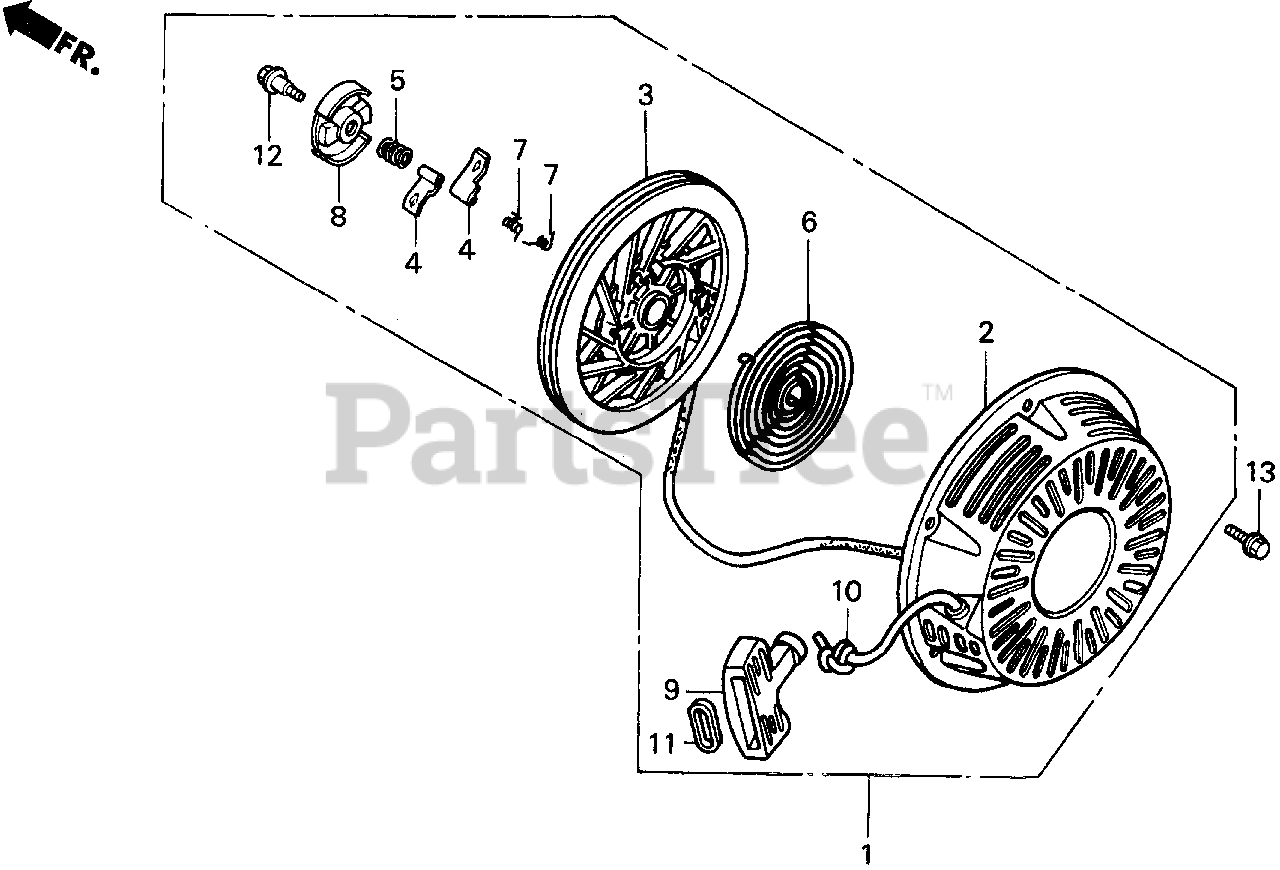

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-ZE2-W01ZB

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *NH1* (BLACK)
(Superseded to 28400-ZE2-W02ZB)

$118.99

$

In Stock, only 1 left!

0

2

Honda 28410-ZE2-W01ZB

CASE, RECOIL STARTER *NH1* (BLACK)

$156.99

$

Usually ships in 3-6 days

0

3

Honda 28421-ZE2-W01

PULLEY, RECOIL STARTER

$41.99

$

Usually ships in 3-6 days

0

4

Honda 28422-ZE2-W01

RATCHET, STARTER

$7.49

$

Usually ships in 3-6 days

0

5

Honda 28441-ZE2-W01

SPRING, FRICTION

$6.49

$

In Stock, Qty 10

0

6

Honda 28442-ZE2-W01

SPRING, STARTER RETURN

$18.99

$

Usually ships in 3-6 days

0

7

Honda 28443-ZE2-W01

SPRING, RATCHET

$5.49

$

In Stock, Qty 12

0

8

Honda 28444-ZE2-W01

RETAINER, SPRING

$14.99

$

Usually ships in 3-6 days

0

9

Honda 28461-ZE2-W01

SEE PART DETAILS - SUP; GRIP, STARTER

Note: Use up to Frame SN 1002256.

$

$

Currently unavailable

9

Honda 28461-ZE2-W02

SEE PART DETAILS - SUP; GRIP, STARTER
(Superseded to 28461-ZE2-W03)

$7.99

$

In Stock, only 1 left!

0

10

Honda 28462-ZE2-W01

SEE PART DETAILS - SUP; ROPE, RECOIL STARTER (#5X55") (NA USE ALT:08550-ZG921-11)

Note: Use up to Frame SN 1002256.

$

$

Currently unavailable

10

Honda 28462-ZE2-W11

ROPE, RECOIL STARTER (#5X55")

Note: Use from Frame SN 1002257.

$10.99

$

In Stock, only 2 left!

0

11

Honda 28469-ZE2-W01

GRIP, REINFORCEMENT

Note: Use up to Frame SN 1002256.

$6.99

$

In Stock, only 1 left!

0

12

Honda 90004-ZE2-W01

SCREW, CENTER

$4.49

$

In Stock, Qty 10

0

13

Honda 90008-ZE2-003

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 9

0
