EN3500 A (EZGB) - Honda Generator, Made in Japan (SN: EZGB-1000001 - EZGB-9999999) GENERATOR Parts Diagram

Generator, Made in Japan

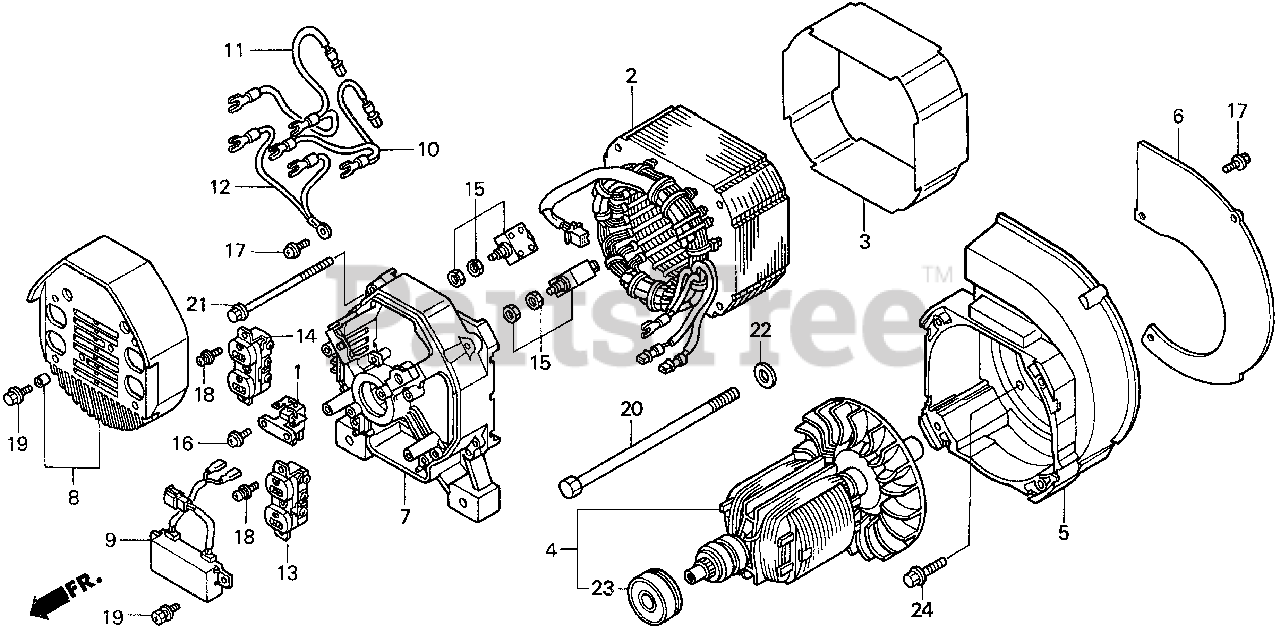

GENERATOR Parts Diagram

  • Title
1

Honda 31106-ZB4-003

BRUSH ASSY.

$76.99

$

In Stock, only 1 left!

0

2

Honda 31120-Z00-G31

STATOR ASSY.

$

$

Not available

3

Honda 31127-Z00-003

COVER, STATOR

$

$

Not available

$

$

Not available

5

Honda 31161-Z00-003

HOUSING, FR.

$

$

Not available

6

Honda 31167-Z00-003

PLATE, HOUSING

$

$

Not available

7

Honda 31171-Z00-003

HOUSING, RR.

$126.99

$

Usually ships in 3-6 days

0

8

Honda 31180-Z00-G31

COVER, GENERATOR END (A)

$

$

Not available

9

Honda 31700-Z00-003

REGULATOR ASSY., AUTOMATIC VOLTAGE

$

$

Not available

10

Honda 32221-Z00-003

WIRE A, TERMINAL

$

$

Not available

11

Honda 32222-Z00-003

WIRE B, TERMINAL

$

$

Not available

12

Honda 32223-Z00-003

WIRE, GROUND

$

$

Not available

13

Honda 32330-ZS3-G31

RECEPTACLE (20A-125V)

$66.99

$

Usually ships in 3-6 days

0

14

Honda 32330-Z00-G31

RECEPTACLE (20A-250V)

$

$

Not available

15

Honda 38240-Z00-G31

PROTECTOR, CIRCUIT (13A)

$

$

Not available

16

Honda 90031-ZC0-003

SCREW, TAPPING (5X18)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90031-875-003

SCREW, TAPPING (5X12)

$2.99

$

In Stock, only 4 left!

0

18

Honda 90032-ZB4-811

SCREW, TAPPING (4X10)

$2.99

$

Usually ships in 3-6 days

0

19

Honda 90032-875-003

SEE PART DETAILS - PRI; SCREW, TAPPING (5X14)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 90101-Z00-003

BOLT, HEX. (10X270)

$

$

Not available

21

Honda 90157-ZT6-003

BOLT, FLANGE (6X90)

$10.99

$

Usually ships in 3-6 days

0

22

Honda 90504-ZA0-000

WASHER (10.5MM)

$6.49

$

Usually ships in 3-6 days

0

23

Honda 91051-ZB4-003

BEARING ASSY. (6204)

$33.99

$

Usually ships in 3-6 days

0

24

Honda 95701-08020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0
