EN2500 AN (EZFS) - Honda Generator, Made in Japan (SN: EZFS-1100001 - EZFS-9999999) FLYWHEEL (CAST IRON) Parts Diagram

Generator, Made in Japan

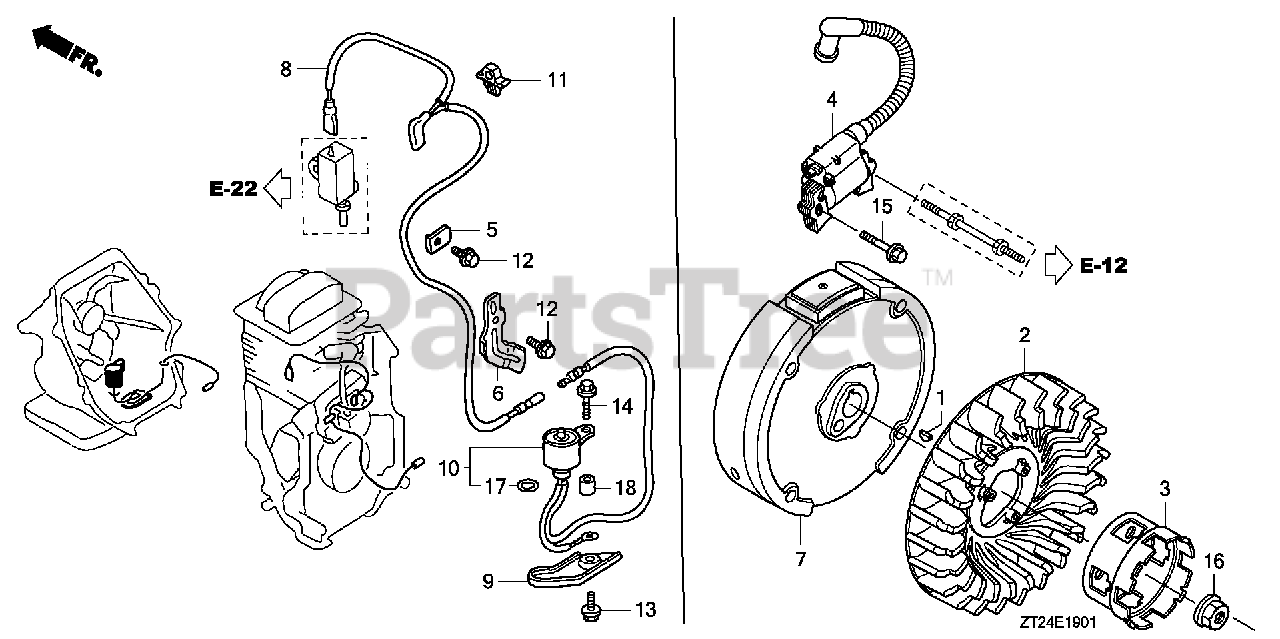

FLYWHEEL (CAST IRON) Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 3747198.

$5.49

$

In Stock, only 4 left!

0

2

Honda 19511-Z0J-900

FAN, COOLING

Note: Use from Engine SN 3747198.

$17.99

$

In Stock, only 2 left!

0

3

Honda 28451-Z0J-900

PULLEY, STARTER

Note: Use from Engine SN 3747198.

$5.99

$

In Stock, only 1 left!

0

4

Honda 30500-Z0J-004

COIL ASSY., IGNITION (TOYO)

Note: Use from Engine SN 3747198.

$18.99

$

Usually ships in 3-6 days

0

5

Honda 30548-ZL8-000

CLAMP, STOP SWITCH WIRE

Note: Use from Engine SN 3747198.

$3.99

$

Usually ships in 3-6 days

0

6

Honda 30549-ZL8-000

CLAMP, WIRE

Note: Use from Engine SN 3747198.

$5.99

$

Usually ships in 3-6 days

0

7

Honda 31110-Z0J-004

FLYWHEEL
(Superseded to 31110-Z0J-014)

Note: Use from Engine SN 3747198.

$66.99

$

Usually ships in 3-6 days

0

8

Honda 32195-Z0J-910

WIRE, STOP SWITCH

Note: Use from Engine SN 3747198.

$19.99

$

Usually ships in 3-6 days

0

9

Honda 35419-ZL8-000

PROTECTOR, SWITCH

Note: Use from Engine SN 3747198.

$9.99

$

Usually ships in 3-6 days

0

10

Honda 35480-ZL8-812

SEE PART DETAILS - PRI; SWITCH, OIL LEVEL
(Superseded to 35480-ZL8-813)

Note: Use from Engine SN 3747198.

$25.99

$

Usually ships in 3-6 days

0

11

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE

Note: Use from Engine SN 3747198.

$2.99

$

In Stock, only 1 left!

0

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use from Engine SN 3747198.

$2.49

$

In Stock, Qty 17

0

13

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

Note: Use from Engine SN 3747198.

$3.49

$

In Stock, only 3 left!

0

14

Honda 90015-883-000

BOLT, FLANGE (6X28) (CT200)

Note: Use from Engine SN 3747198.

$3.99

$

In Stock, Qty 8

0

15

Honda 90018-ZE1-000

BOLT, FLANGE (6X23) (CT200)

Note: Use from Engine SN 3747198.

$2.49

$

Usually ships in 3-6 days

0

16

Honda 90201-Z0T-800

NUT, SPECIAL (14MM)

Note: Use from Engine SN 3747198.

$2.99

$

In Stock, only 1 left!

0

17

Honda 91302-ZL8-003

O-RING (11.8X2.4)

Note: Use from Engine SN 3747198.

$1.49

$

In Stock, only 2 left!

0

18

Honda 91501-ZL8-000

COLLAR (6.6X13.8X14.5)

Note: Use from Engine SN 3747198.

$3.49

$

In Stock, only 2 left!

0
