EN2500 AN (EZFS) - Honda Generator, Made in Japan (SN: EZFS-1100001 - EZFS-9999999) CYLINDER Parts Diagram

Generator, Made in Japan

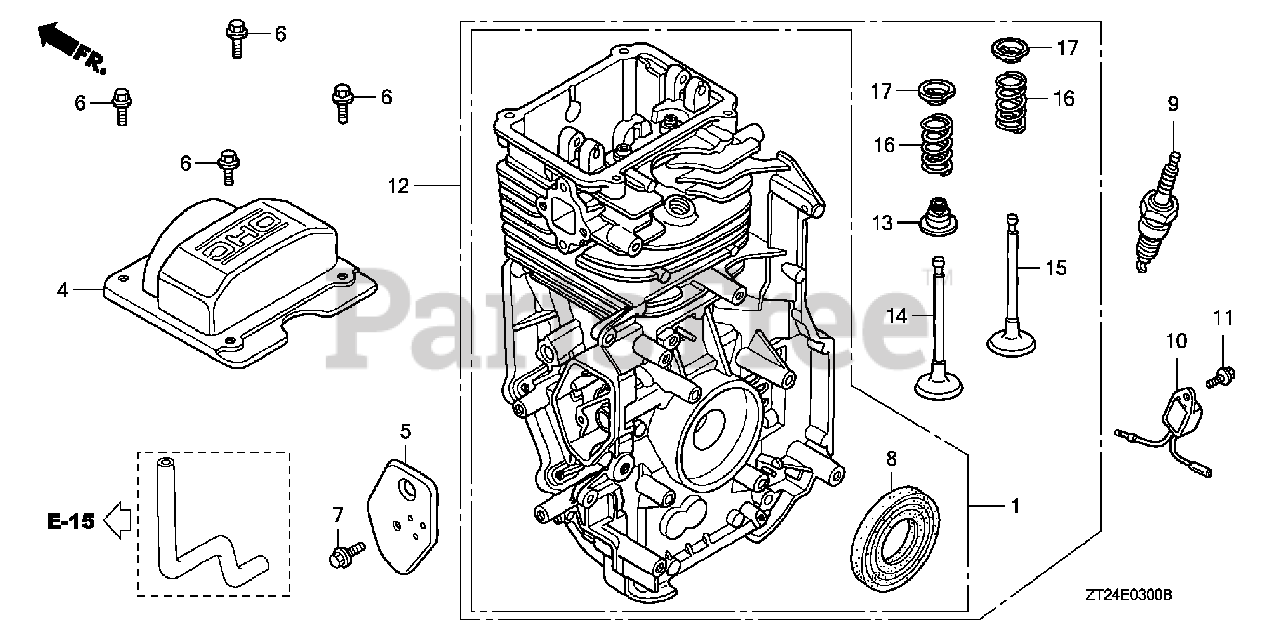

CYLINDER Parts Diagram

  • Title

4

Honda 12310-Z0J-000

SEE PART DETAILS - SUP; COVER, CYLINDER HEAD
(Superseded to 12310-Z8A-000)

$33.99

$

Usually ships in 3-6 days

0

5

Honda 12355-ZL8-000

COVER, BREATHER (BREATHER VALVE ASSY.)

$9.49

$

In Stock, Qty 5

0

6

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 19

0

7

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$2.99

$

In Stock, only 4 left!

0

8

Honda 91201-ZL8-003

OIL SEAL (25.4X62X6)

$7.99

$

In Stock, only 1 left!

0

9

Honda 98079-56846

SEE PART DETAILS - PRI; SPARK PLUG (BPR6ES) (NGK)

$3.49

$

In Stock, Qty 20+

0

10

Honda 34150-ZL8-003

SEE PART DETAILS - SUP; ALERT UNIT, OIL
(Superseded to 34150-ZH7-023)

$51.99

$

In Stock, only 1 left!

0

11

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 19

0

12

Honda 12000-ZL8-425

SEE PART DETAILS - SUP; CYLINDER ASSY.

$

$

Currently unavailable

12

Honda 12000-Z0L-505

SEE PART DETAILS - PRI; CYLINDER ASSY.
(Superseded to 12000-Z8B-000)

$92.99

$

Usually ships in 3-6 days

0

13

Honda 12209-ZM0-003

SEAL, VALVE STEM

$9.49

$

In Stock, Qty 6

0

14

Honda 14711-Z0J-000

SEE PART DETAILS - SUP; VALVE, IN. (ROCKNEL)
(Superseded to 14711-ZL8-000)

$68.99

$

In Stock, only 4 left!

0

15

Honda 14721-ZL8-000

SEE PART DETAILS - SUP; VALVE, EX.

$58.99

$

In Stock, Qty 9

0

16

Honda 14751-ZL8-000

SPRING, VALVE

$0.99

$

In Stock, Qty 10

0

17

Honda 14771-Z0J-000

RETAINER, VALVE SPRING

$10.99

$

In Stock, Qty 6

0
