EN2500 AN (EZFS) - Honda Generator, Made in Japan (SN: EZFS-1100001 - EZFS-9999999) CRANKCASE COVER Parts Diagram

Generator, Made in Japan

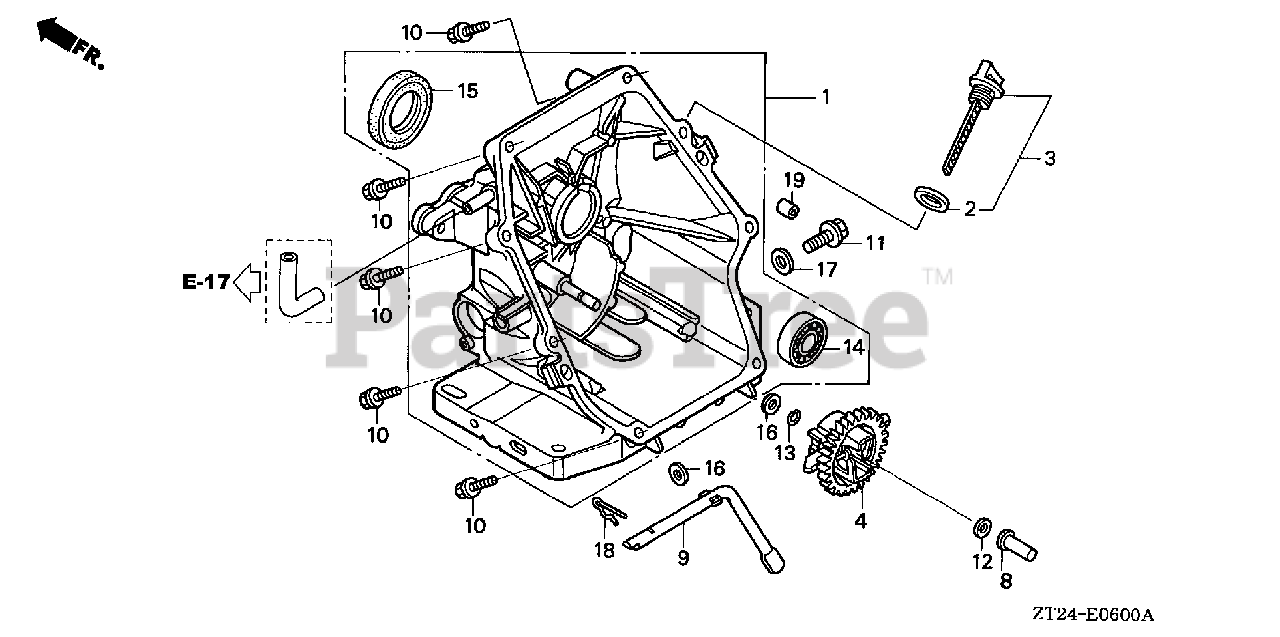

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZL8-406

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$

$

Not available

2

Honda 15625-Z2L-801

GASKET, OIL FILLER CAP

$

$

Not available

3

Honda 15650-ZL8-013

SEE PART DETAILS - PRI; GAUGE ASSY., OIL LEVEL

$5.49

$

Usually ships in 3-6 days

0

4

Honda 16510-ZL8-000

GOVERNOR ASSY.

$12.99

$

In Stock, only 1 left!

0

8

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 8

0

9

Honda 16541-ZL8-000

SHAFT, GOVERNOR ARM
(Superseded to 16541-Z8A-000)

$0.99

$

In Stock, Qty 5

0

10

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

11

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (12X15)

$

$

Not available

11

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (12X15)

$5.49

$

In Stock, Qty 11

0

12

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

$2.49

$

In Stock, only 2 left!

0

13

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

14

Honda 91001-ZL8-003

BEARING, RADIAL BALL (62/28)

$29.99

$

Usually ships in 3-6 days

0

15

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6)

$7.49

$

In Stock, Qty 16

0

16

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

17

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

18

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

19

Honda 94301-08200

PIN, DOWEL (8X20)

$2.99

$

Usually ships in 3-6 days

0
