EN2500 A (EZFS) - Honda Generator, Made in Japan (SN: EZFS-1000001 - EZFS-1099999) FUEL TANK (1) Parts Diagram

Generator, Made in Japan

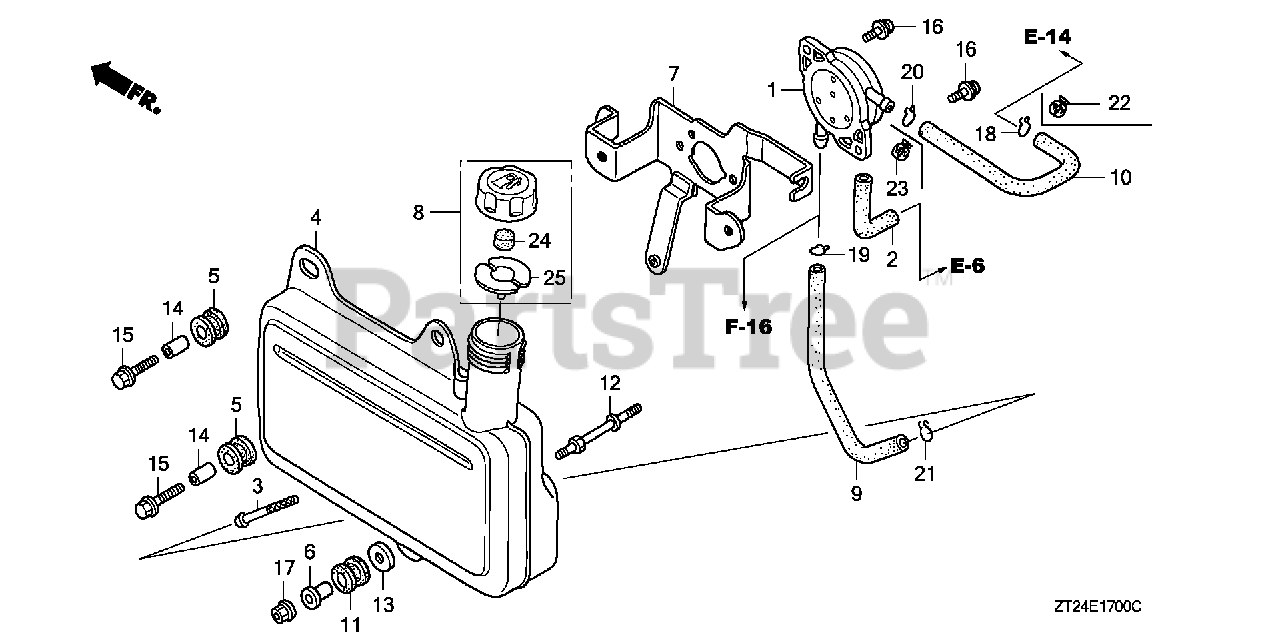

FUEL TANK (1) Parts Diagram

  • Title

1

Honda 16700-ZL8-003

SEE PART DETAILS - SUP; PUMP ASSY., FUEL
(Superseded to 16700-Z0J-003)

Note: Use up to Engine SN 1825178.

$92.99

$

Usually ships in 3-6 days

0

1

Honda 16700-ZL8-013

SEE PART DETAILS - SUP; PUMP ASSY., FUEL
(Superseded to 16700-Z0J-003)

$92.99

$

Usually ships in 3-6 days

0

1

Honda 16700-Z0J-003

SEE PART DETAILS - PRI; PUMP ASSY., FUEL

$92.99

$

Usually ships in 3-6 days

0

2

Honda 16882-ZL8-000

TUBE, DIAPHRAGM

$2.99

$

In Stock, Qty 20+

0

3

Honda 16952-ZA8-800

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

4

Honda 17511-ZL8-000

TANK, FUEL

$47.99

$

In Stock, only 1 left!

0

5

Honda 17516-ZV0-000

RUBBER B, TANK MOUNTING

$4.49

$

In Stock, only 2 left!

0

6

Honda 17535-KE7-000

COLLAR, FUEL TANK SETTING

$4.99

$

In Stock, only 1 left!

0

7

Honda 17561-ZL8-000

STAY A, FUEL TANK

$

$

Not available

8

Honda 17620-ZL8-003

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZL8-023)

Note: Use up to Engine SN 1709716.

$5.99

$

In Stock, Qty 16

0

8

Honda 17620-ZL8-013

SEE PART DETAILS - SUP; CAP ASSY., FUEL TANK
(Superseded to 17620-ZL8-023)

$5.99

$

In Stock, Qty 16

0

9

Honda 17701-ZL8-000

SEE PART DETAILS - PRI; TUBE, FUEL TANK

$11.99

$

In Stock, only 1 left!

0

10

Honda 17702-ZL8-000

SEE PART DETAILS - PRI; TUBE, FUEL

$10.99

$

In Stock, Qty 11

0

11

Honda 80103-MG2-000

CUSHION, RR. FENDER

$4.49

$

In Stock, only 2 left!

0

12

Honda 90041-ZL8-000

BOLT, FUEL TANK STUD (H=30MM)

$4.99

$

Usually ships in 3-6 days

0

13

Honda 90473-896-000

WASHER (6MM)

$2.49

$

In Stock, only 3 left!

0

14

Honda 90501-KA2-640

COLLAR (14X6.1)

$5.49

$

Usually ships in 3-6 days

0

15

Honda 93404-06025-00

BOLT-WASHER (6X25)

$1.49

$

In Stock, only 3 left!

0

16

Honda 93894-05014-00

SCREW-WASHER (5X14)

$1.49

$

In Stock, Qty 6

0

17

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 20+

0

19

Honda 95002-02100

CLIP, TUBE (B10)

$2.49

$

In Stock, Qty 20+

0

20

Honda 95002-50000

CLIP, TUBE (C9)

$1.99

$

In Stock, Qty 20+

0

21

Honda 95002-70000

CLIP, TUBE (C11)

$2.49

$

In Stock, Qty 5

0

24

Honda 17622-ZL8-003

SPONGE, FUEL CAP BREATHER

$1.99

$

Usually ships in 3-6 days

0

25

Honda 17624-ZL8-003

SEE PART DETAILS - SUP; GASKET, FUEL CAP

$

$

Not available
