EN 11TB36 A - Electrolux/AYP Lawn Tractor ENGINE/THROTTLE Parts Diagram

Lawn Tractor

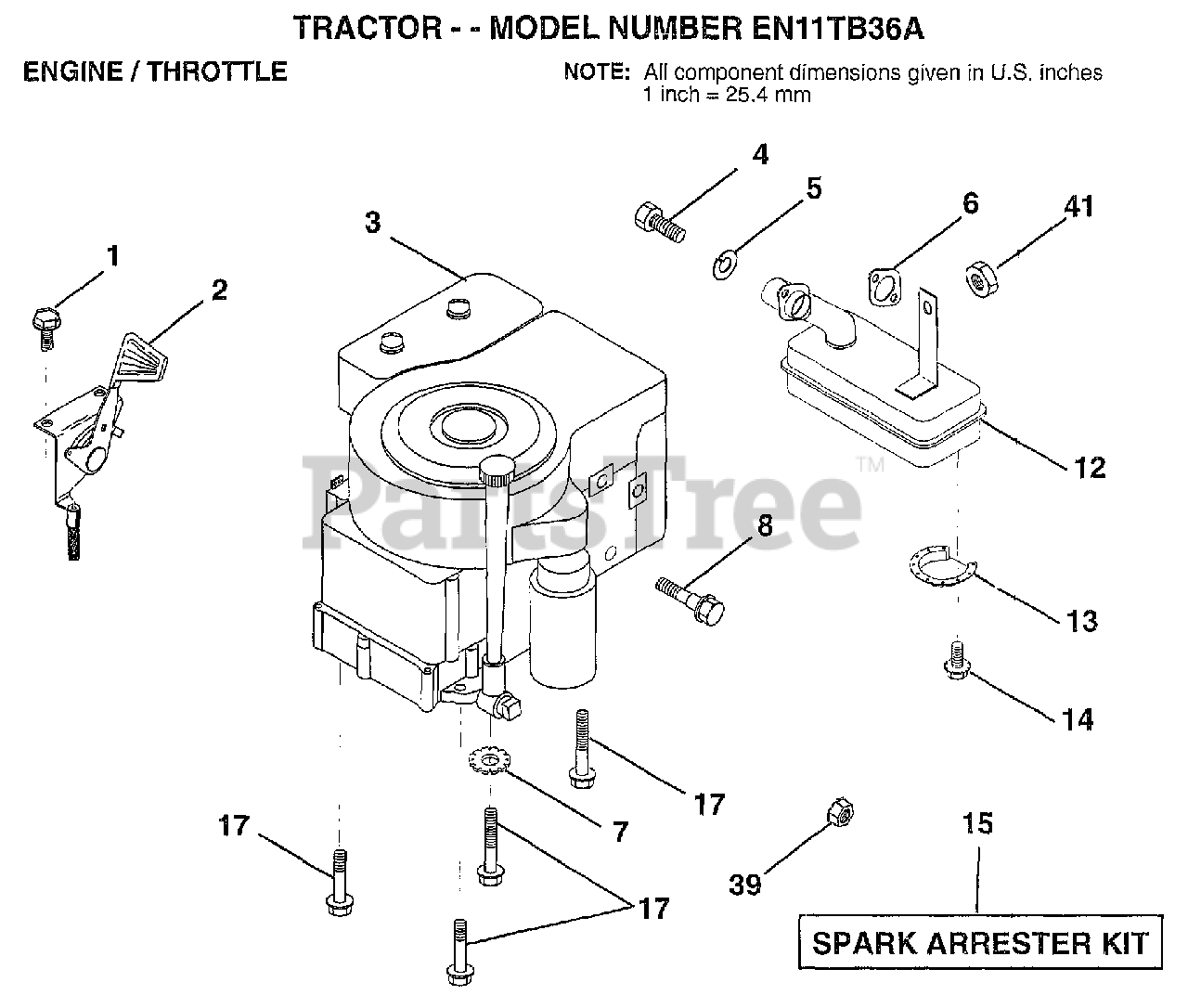

ENGINE/THROTTLE Parts Diagram

  • Title
1

Electrolux/AYP 17720410

SCREW LT
(Superseded to 817720410)

$

$

Not available

2

Electrolux/AYP 132752

"CONTROL,THROTTLE"
(Superseded to 532132752)

$

$

Not available

3

Electrolux/AYP SUPPLIER

CHECK WITH SUPPLIER

$

$

Not available

4

Electrolux/AYP 123528X

SCREW HEX HD CAP
(Superseded to 583667801)

$3.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 10040500

LOCKWASHER
(Superseded to 810040500)

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 165291

SUB= 272293
(Superseded to 532272293)

$12.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 11050600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 81328

SHOULDER BOLT ST
(Superseded to 532081328)

$6.49

$

In Stock, only 1 left!

0

12

Electrolux/AYP 156448

MUFFLER-TECH 13HP

$

$

Not available

13

Electrolux/AYP 101326L

DEFLECTOR.222573
(Superseded to 532101326)

$

$

Not available

14

Electrolux/AYP 17030808

SUB= 17030814
(Superseded to 817030808)

$

$

Not available

15

Electrolux/AYP 137180

SUB= 532137180
(Superseded to 532137180)

$

$

Not available

17

Electrolux/AYP 17490624

SCREW LT
(Superseded to 817060624)

$7.49

$

In Stock, only 1 left!

0

39

Electrolux/AYP 128861

NUT
(Superseded to 539128861)

$31.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 73900500

"NUT HEX,LOCK,FLAN"
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0
