EMT 20460 (2690843-01) - Murray 46" Lawn Tractor, 20hp (2012) Seat Deck & Fuel Tank Parts Diagram

46" Lawn Tractor, 20hp

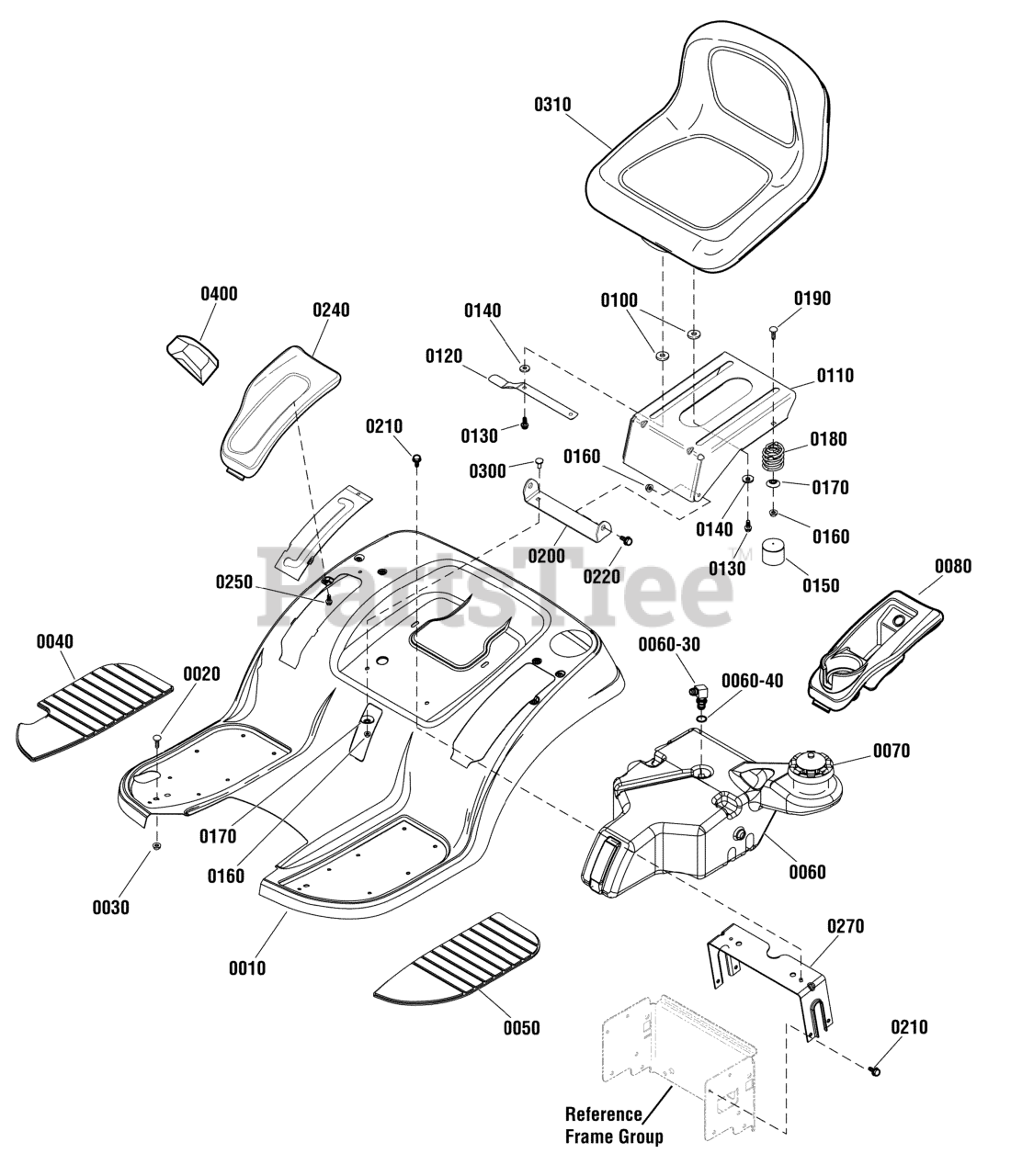

Seat Deck & Fuel Tank Parts Diagram

  • Title

0010

Murray 1727264BIYP

DECK, Seat

$467.99

$

Usually ships in 2-12 days

0

0020

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0030

Murray 1931277SM

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Murray 1739014YP

PAD, Footrest, R.H.

$14.99

$

Usually ships in 2-12 days

0

0050

Murray 1739013YP

PAD, Footrest, L.H.

$16.99

$

Usually ships in 2-12 days

0

0060

Murray 1738932YP

TANK, Fuel

Note: (Includes Ref. Nos. 0060-30 & 0060-40)

$295.99

$

Usually ships in 2-12 days

0

0060-30

Murray 1674231SM

ELBOW FITTING

$

$

Not available

0060-40

Murray 1654930SM

BUSHING

$7.99

$

In Stock, Qty 20+

0

0070

Murray 5101651SM

CAP, Gas

Note: (Used before Serial No. 2016980943)

$30.99

$

In Stock, Qty 20+

0

0070

Murray 1758609YP

CAP, Gas

Note: (Used after Serial No. 2016980944)

$27.99

$

Usually ships in 2-12 days

0

0080

Murray 1739536YP

POD, L.H.

$27.99

$

Usually ships in 2-12 days

0

0100

Murray 1731300SM

SPACER, 5/16 ID x 1-1/4 OD x 5/16

$5.49

$

Usually ships in 2-12 days

0

0110

Murray 1727265SM

SUPPORT, Seat

$102.99

$

Usually ships in 2-12 days

0

0120

Murray 1727268SM

LATCH, Seat

$8.99

$

Usually ships in 2-12 days

0

0130

Murray 770697

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1

$

$

Not available

0140

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

0150

Murray 1704724SM

COVER, Spring

$7.99

$

In Stock, only 2 left!

0

0160

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0170

Murray 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 1 left!

0

0180

Murray 1704728SM

SPRING, Compression

$9.99

$

In Stock, only 2 left!

0

0190

Murray 1960282SM

BOLT, Carriage, 5/16-18 x 3/4, G5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

0200

Murray 1727266SM

PIVOT, Seat
(Superseded to 1687866)

$74.99

$

Usually ships in 2-12 days

0

0210

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0220

Murray 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0240

Murray 1739538YP

POD, R.H.

$27.99

$

Usually ships in 2-12 days

0

0250

Murray 1960536SM

SCREW, Hex Washer Head, Plastite, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0270

Murray 1731310SM

SUPPORT, Seat Deck

$36.99

$

Usually ships in 2-12 days

0

0300

Murray 1931334SM

BOLT, Carriage, Short Neck, 5/16-18 x 7/8, G5
(Superseded to 704065)

$4.49

$

In Stock, Qty 5

0

0310

Murray 1730159SM

SEAT, Hi Back

$463.99

$

Usually ships in 2-12 days

0

0400

Murray 1739056YP

GRIP, Red

Note: (Used before Serial No. 2016994524)

$5.99

$

Usually ships in 2-12 days

0

0400

Murray 1722302SM

GRIP, Black

Note: (Used after Serial No. 2016994525)

$8.49

$

In Stock, Qty 10

0
