EMT 20460 (2690843-01) - Murray 46" Lawn Tractor, 20hp (2012) Engine Group - 17.5HP & 20HP Parts Diagram

46" Lawn Tractor, 20hp

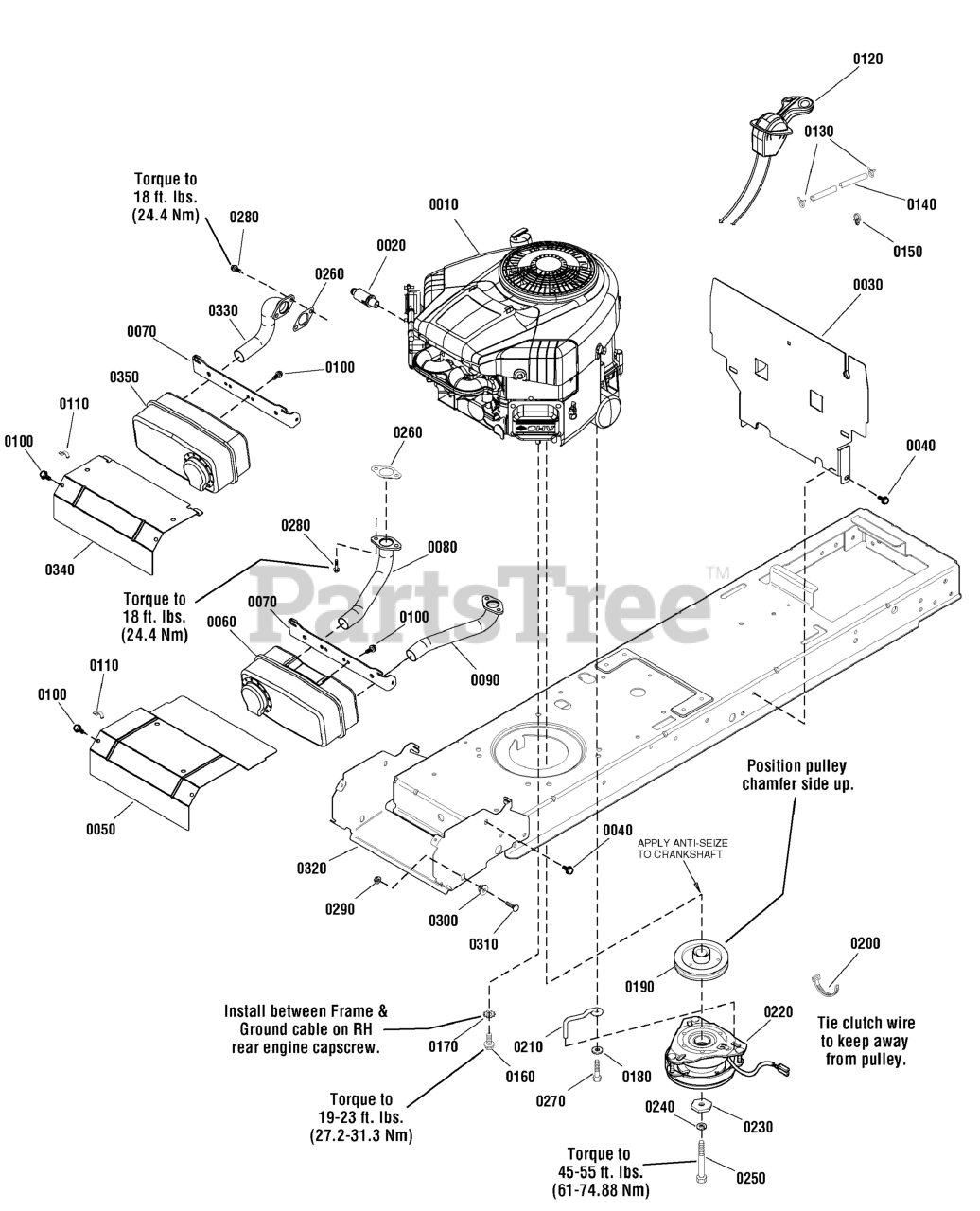

Engine Group - 17.5HP & 20HP Parts Diagram

  • Title

0010

Murray 31G777-0144-B1

* ENGINE, 17.5HP Briggs & Stratton, Intek Single

Note: (Engine Model: 31G777-0144-B1)

$

$

Currently unavailable

0010

Murray 406777-0170-B1

* ENGINE, 20HP Briggs & Stratton, Intek Twin

Note: (Engine Model: 406777-0170-B1)

$

$

Currently unavailable

0010

Murray 406777-5121-B1

* ENGINE, 20HP Briggs & Stratton, Intek Twin

Note: (Engine Model: 406777-5121-B1)

$

$

Currently unavailable

0020

Murray 1717473SM

VALVE, Shut Off Oil Drain
(Superseded to 1750159YP)

$15.99

$

Usually ships in 2-12 days

0

0030

Murray 1728058SM

HEAT SHIELD
(Superseded to 1728058BMYP)

Note: (Single)

$19.99

$

Usually ships in 2-12 days

0

0040

Murray 1930601SM

SCREW, Hex Washer, Taptit, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0050

Murray 1727997SM

HEAD SHIELD
(Superseded to 1727997ASM)

Note: (Twin)

$33.99

$

Usually ships in 2-12 days

0

0060

Murray 1727994SM

MUFFLER, Twin

$98.99

$

Usually ships in 2-12 days

0

0070

Murray 1727976SM

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0080

Murray 1727979SM

EXHAUST PIPE, R.H.

$37.99

$

In Stock, only 1 left!

0

0090

Murray 1727980SM

EXHAUST PIPE, L.H.

$37.99

$

In Stock, only 2 left!

0

0100

Murray 1925003SM

SCREW, Hex Washer, Taptit, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0110

Murray 2834683SM

WIRE CLIP
(Superseded to 2172434SM)

$4.99

$

Usually ships in 2-12 days

0

0120

Murray 1751734YP

THROTTLE CONTROL

Note: (Single)

$59.99

$

In Stock, only 1 left!

0

0120

Murray 1736868YP

THROTTLE CONTROL, Choke-A-Matic

Note: (Twin)

$65.99

$

Usually ships in 2-12 days

0

0130

Murray 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

0140

Murray 706024

HOSE, Fuel, 55 in

$16.99

$

Usually ships in 2-12 days

0

0150

Murray 1730268SM

CLIP-Hose, Black

$3.99

$

Usually ships in 2-12 days

0

0160

Murray 2827187SM

SCREW, Hex Washer, Taptit, 3/8-16 x 1
(Superseded to 704000)

Note: (2 used on 20HP Model, 3 used on 17.5HP model)

$4.99

$

Usually ships in 2-12 days

0

0170

Murray 2820427SM

LOCKWASHER, External Tooth
(Superseded to 703864)

$4.49

$

Usually ships in 2-12 days

0

0180

Murray 1924940SM

WASHER, 7/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Murray 1732576SM

PULLEY & HUB ASSEMBLY, Engine

$42.99

$

Usually ships in 2-12 days

0

0200

Murray 1701011SM

TIE, Self Locking

$5.49

$

In Stock, only 2 left!

0

0210

Murray 1737421AYP

GUIDE, Belt

$12.99

$

In Stock, Qty 10

0

0220

Murray 1736105SM

CLUTCH, Electric

$387.99

$

Usually ships in 2-12 days

0

0230

Murray 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 5

0

0240

Murray 1918199SM

LOCKWSHER, Spring
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0250

Murray 1960649SM

CAPSCREW, Hex Head, 7/16-20 x 3-1/2

$7.49

$

In Stock, only 1 left!

0

0260

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

0270

Murray 2828635SM

SCREW, Hex-Head 3/8-16 x 1-3/4

$4.99

$

In Stock, Qty 20+

0

0280

Murray 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0290

Murray 1931277SM

NUT, Hex Flange, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Murray 1728086SM

PIVOT, Hood

$5.99

$

In Stock, Qty 7

0

0310

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0320

Murray 1727982SM

SUPPORT, Muffler
(Superseded to 1727982ASM)

$70.99

$

Usually ships in 2-12 days

0

0330

Murray 1728959SM

EXHAUST PIPE

$34.99

$

Usually ships in 2-12 days

0

0340

Murray 1727996ASM

HEAT SHIELD
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

0350

Murray 1727993SM

MUFFLER, Briggs & Stratton, Single

$93.99

$

In Stock, only 1 left!

0
