EMT 1838 RDF (1696110-00) - Murray 96cm Rear-Discharge Lawn Tractor, 18hp (2012) Steering Group (885553) Parts Diagram

96cm Rear-Discharge Lawn Tractor, 18hp

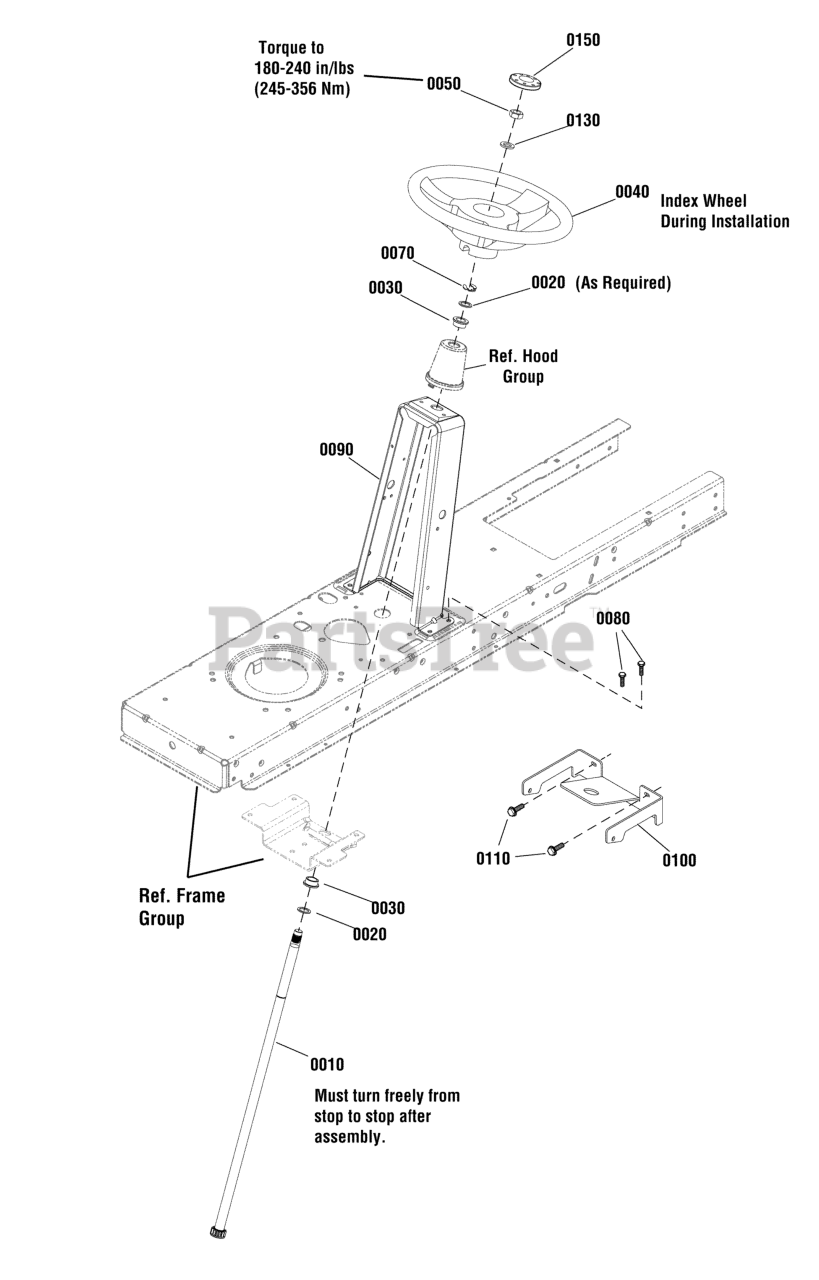

Steering Group (885553) Parts Diagram

  • Title

0010

Murray 1727813SM

SHAFT, Steering Gear & Spline

$76.99

$

In Stock, Qty 20+

0

0020

Murray 1960114SM

WASHER, 3/4 x 1
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

0030

Murray 1729665SM

BUSHING, Steering

$5.99

$

In Stock, Qty 16

0

0040

Murray 1728069SM

STEERING WHEEL

$74.99

$

Usually ships in 2-12 days

0

0050

Murray 1960576SM

NUT, Hex Lock, ESNA Light, 5/8-18

$5.99

$

In Stock, Qty 9

0

0070

Murray 1611710SM

RING, Klipring Extension

$4.49

$

In Stock, Qty 20+

0

0080

Murray 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0090

Murray 885530AYP

TOWER

$64.99

$

In Stock, only 1 left!

0

0100

Murray 7300653ZYP

BRACKET, Tank

$33.99

$

Usually ships in 2-12 days

0

0110

Murray 1925003SM

CAPSCREW, Hex Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 7

0

0130

Murray 1924366SM

WASHER, 5/8
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 1725024SM

CAP, Steering Wheel

$7.49

$

In Stock, only 1 left!

0
