EMT 1838 RDF (1696110-00) - Murray 96cm Rear-Discharge Lawn Tractor, 18hp (2012) Guard Group - 38" RD (885597) Parts Diagram

96cm Rear-Discharge Lawn Tractor, 18hp

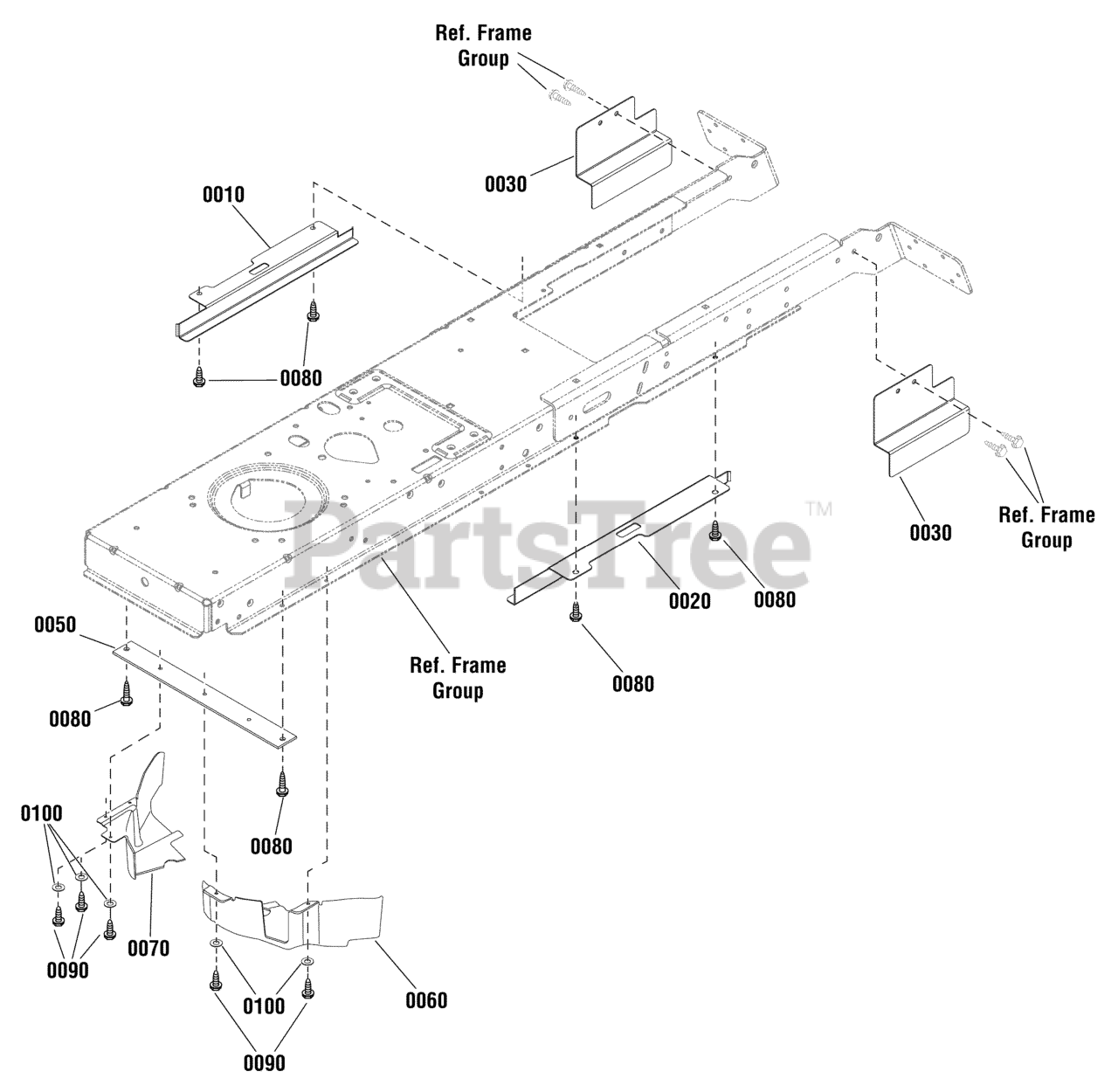

Guard Group - 38" RD (885597) Parts Diagram

  • Title
0010

Murray 885598AYP

GUARD, Middle Right

$25.99

$

Usually ships in 2-12 days

0

0020

Murray 885599AYP

GUARD, Middle Left

$25.99

$

Usually ships in 2-12 days

0

0030

Murray 885600AYP

GUARD, Rear

$11.99

$

Usually ships in 2-12 days

0

0050

Murray 885602AYP

BRACE, Guard

$47.99

$

Usually ships in 2-12 days

0

0060

Murray 885604YP

GUARD, Front, LH

$110.99

$

Usually ships in 2-12 days

0

0070

Murray 885605YP

GUARD, Front, RH

$110.99

$

Usually ships in 2-12 days

0

0080

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0090

Murray 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0100

Murray 2821319SM

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0
