EMT 1838 RDF (1696110-00) - Murray 96cm Rear-Discharge Lawn Tractor, 18hp (2012) Frame & Front Axle Group (885707) Parts Diagram

96cm Rear-Discharge Lawn Tractor, 18hp

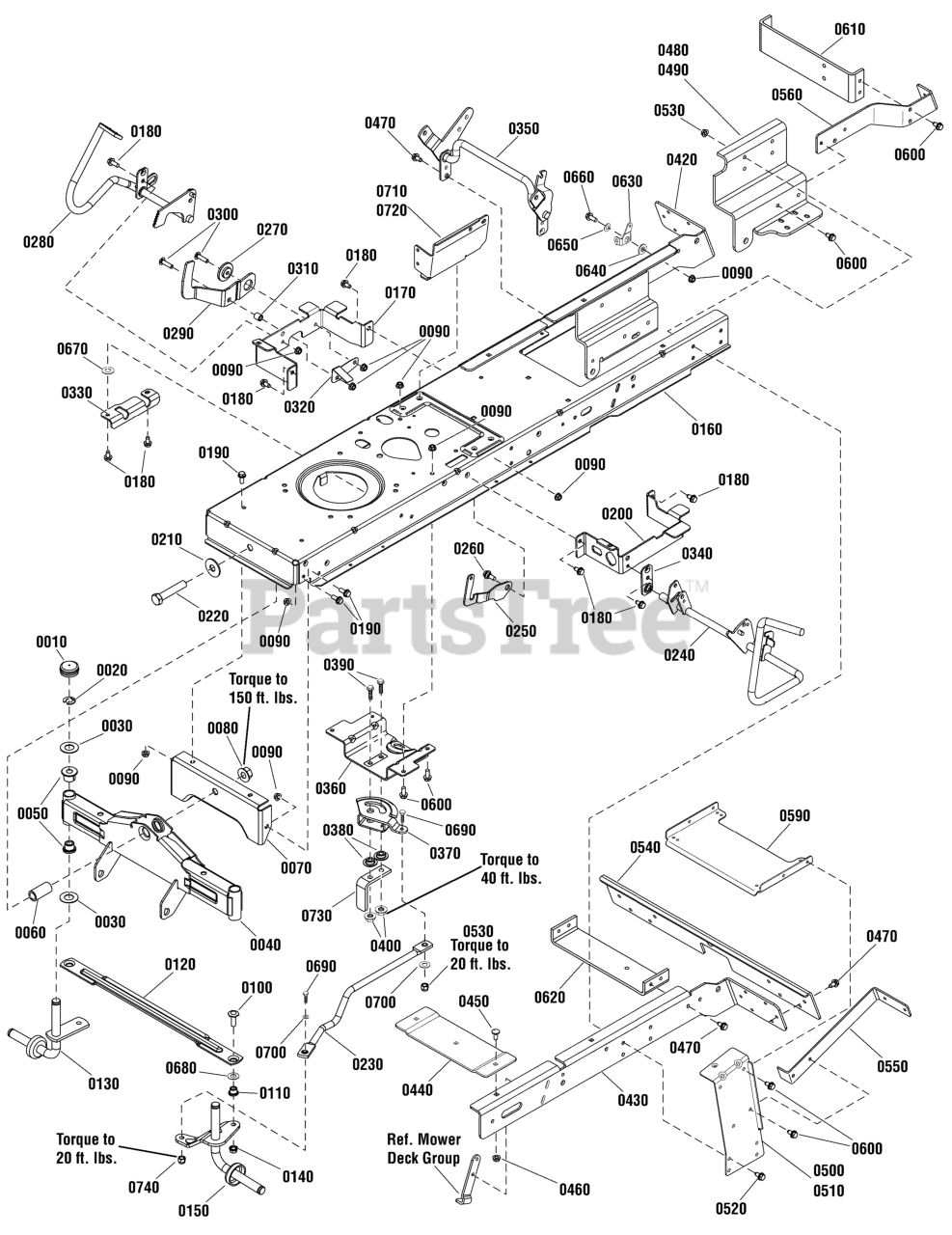

Frame & Front Axle Group (885707) Parts Diagram

  • Title

0010

Murray 721318

CAP, Hub
(Superseded to 094618MA)

$5.99

$

In Stock, only 4 left!

0

0020

Murray 720010

E-RING, 3/4
(Superseded to 0011X3MA)

$5.49

$

In Stock, Qty 20+

0

0030

Murray 722620

WASHER, Flat
(Superseded to 17X195MA)

$4.99

$

In Stock, only 4 left!

0

0040

Murray 885693

AXLE, Front
(Superseded to 885693YP)

$182.99

$

Usually ships in 2-12 days

0

0050

Murray 2176440

BUSHING
(Superseded to 2176440SM)

$4.99

$

In Stock, Qty 20+

0

0060

Murray 1738193

SPACER
(Superseded to 1738193YP)

$6.49

$

In Stock, only 1 left!

0

0070

Murray 1727902

PLATE, Axle Support
(Superseded to 1727902SM)

$43.99

$

Usually ships in 2-12 days

0

0080

Murray 2860646

NUT, Hex Flange Two-Way Lock, 5/8-11
(Superseded to 2860646SM)

$10.99

$

In Stock, Qty 6

0

0090

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0100

Murray 1960032

CAPSCREW, Hex Head, 3/8-16 x 1-1/4, .141 Thread G5
(Superseded to 1960032SM)

$5.49

$

In Stock, only 1 left!

0

0110

Murray 1611705

SPACER
(Superseded to 1611705SM)

$4.49

$

In Stock, Qty 20+

0

0120

Murray 1751964

ROD, Tie
(Superseded to 1751964BMYP)

$32.99

$

In Stock, Qty 5

0

0130

Murray 1727872A

SPINDLE & CUP ASSEMBLY, R.H.
(Superseded to 1727872ASM)

$98.99

$

In Stock, Qty 20+

0

0140

Murray 1930645

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0150

Murray 1751922

SPINDLE & ARM ASSEMBLY, L.H.
(Superseded to 1751922YP)

$109.99

$

Usually ships in 2-12 days

0

0160

Murray 885656BM

FRAME
(Superseded to 885656BMYP)

$683.99

$

Usually ships in 2-12 days

0

0170

Murray 1727904

SUPPORT, Front Footrest R.H.
(Superseded to 1759842BMYP)

$39.99

$

Usually ships in 2-12 days

0

0180

Murray 1930601

SCREW, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0190

Murray 1930591

CAPSCREW, Hex Head, Flange Whiz Lock, 5/16-18 x 3/4
(Superseded to 80003531)

$5.49

$

In Stock, Qty 14

0

0200

Murray 885536A

SUPPORT, Front Footrest L.H.
(Superseded to 885536AYP)

$25.99

$

Usually ships in 2-12 days

0

0210

Murray 1960035

WASHER, Flat, 5/8
(Superseded to 1960035SM)

$4.49

$

In Stock, only 2 left!

0

0220

Murray 2860744

CAPSCREW, Hex Head, 5/8-11 x 3-1/4 G5
(Superseded to 2860744SM)

$8.49

$

Usually ships in 2-12 days

0

0230

Murray 1738051

LINK, Drag
(Superseded to 1738051YP)

$60.99

$

In Stock, Qty 12

0

0240

Murray 885694

PEDAL ASSEMBLY, Brake
(Superseded to 885694YP)

$56.99

$

Usually ships in 2-12 days

0

0250

Murray 1735595

LATCH, Brake Lock
(Superseded to 1735595ASM)

$10.99

$

Usually ships in 2-12 days

0

0260

Murray 1729576

BOLT, Shoulder, 5/16-18 x 1-1/8
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0270

Murray 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 1 left!

0

0280

Murray 1736714A

PEDAL ASSEMBLY, Forward
(Superseded to 1736714AYP)

$89.99

$

Usually ships in 2-12 days

0

0290

Murray 1727246

PEDAL, Reverse
(Superseded to 1727246SM)

$20.99

$

Usually ships in 2-12 days

0

0300

Murray 1960223

BOLT, Carriage, 5/16-18 x 1-1/4
(Superseded to 703446)

$4.49

$

In Stock, Qty 5

0

0310

Murray 1728024

SPACER, Foot Pedal
(Superseded to 1728024SM)

$4.99

$

Usually ships in 2-12 days

0

0320

Murray 1728025

ACTUATOR, RMO Switch
(Superseded to 1728025BMYP)

$6.49

$

Usually ships in 2-12 days

0

0330

Murray 885591A

BRACKET, Pedal Pivot
(Superseded to 885591YP)

$22.99

$

Usually ships in 2-12 days

0

0340

Murray 1727911A

PLATE, Bearing
(Superseded to 1727911ASM)

$12.99

$

Usually ships in 2-12 days

0

0350

Murray 885579A

LIFT SHAFT ASSEMBLY
(Superseded to 1758772YP)

$125.99

$

Usually ships in 2-12 days

0

0360

Murray 1727940

BRACKET, Sector Support
(Superseded to 1727940SM)

$

$

Not available

0370

Murray 1751110

GEAR, Steering
(Superseded to 1751110YP)

$34.99

$

In Stock, Qty 20+

0

0380

Murray 1728122

SPACER, Sector Gear
(Superseded to 1728122SM)

$5.49

$

In Stock, Qty 10

0

0390

Murray 1960032

SCREW, Hex Head, 3/8-16 x 1-1/4, G5
(Superseded to 1960032SM)

$5.49

$

In Stock, only 1 left!

0

0400

Murray 1930645

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0420

Murray 885508A

BRACKET, Rear Frame, RH
(Superseded to 885508AYP)

$131.99

$

Usually ships in 2-12 days

0

0430

Murray 885509A

BRACKET, Rear Frame, LH
(Superseded to 885509AYP)

$131.99

$

Usually ships in 2-12 days

0

0440

Murray 885532A

BRACE, Middle Cross
(Superseded to 885532AYP)

$33.99

$

Usually ships in 2-12 days

0

0450

Murray 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0

0460

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0470

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0480

Murray 885474A

BRACKET, Transaxle, RH
(Superseded to 885474AYP)

$67.99

$

Usually ships in 2-12 days

0

0490

Murray 885475A

BRACKET, Transaxle, LH
(Superseded to 885475AYP)

$101.99

$

Usually ships in 2-12 days

0

0500

Murray 885411A

SUPPORT, Deck, R.H.
(Superseded to 885411AYP)

$46.99

$

Usually ships in 2-12 days

0

0510

Murray 885412A

SUPPORT, Deck, L.H.
(Superseded to 885412AYP)

$46.99

$

Usually ships in 2-12 days

0

0520

Murray 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0530

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0540

Murray 885469A

BRACKET, Middle Back Plate
(Superseded to 885469AYP)

$42.99

$

Usually ships in 2-12 days

0

0550

Murray 885466A

SUPPORT, Upper, Back Plate
(Superseded to 885466AYP)

$20.99

$

Usually ships in 2-12 days

0

0560

Murray 885467A

SUPPORT, Lower, Back Plate
(Superseded to 885467AYP)

$27.99

$

Usually ships in 2-12 days

0

0590

Murray 885503A

BRACE, Cross Deck Support
(Superseded to 885503AYP)

$26.99

$

Usually ships in 2-12 days

0

0600

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0610

Murray 885441A

BRACKET, Torque
(Superseded to 885441AYP)

$33.99

$

Usually ships in 2-12 days

0

0620

Murray 885486A

BRACKET, Idler Mount
(Superseded to 885486AYP)

$17.99

$

Usually ships in 2-12 days

0

0630

Murray 1728990A

CLEVIS, Lift
(Superseded to 1728990ASM)

$11.99

$

Usually ships in 2-12 days

0

0640

Murray 1727935

SPACER, Pivot
(Superseded to 1727935SM)

$5.99

$

In Stock, only 1 left!

0

0650

Murray 1960044

WASHER, 5/16
(Superseded to 1960044SM)

$4.49

$

In Stock, only 3 left!

0

0660

Murray 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0670

Murray 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0680

Murray 1960703

WASHER, 5/8
(Superseded to 1960703SM)

$4.49

$

In Stock, only 2 left!

0

0690

Murray 1921977

CAPSCREW, Hex Head, 5/16-18 x 1-1/4, G5
(Superseded to 1921977SM)

$4.99

$

In Stock, Qty 7

0

0700

Murray 1924874

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0710

Murray 885695BM

BRACKET, Tower Support, LH
(Superseded to 885695BMYP)

$31.99

$

Usually ships in 2-12 days

0

0720

Murray 885696BM

BRACKET, Tower Support, RH
(Superseded to 885696BMYP)

$31.99

$

Usually ships in 2-12 days

0

0730

Murray 885791

UPSTOP
(Superseded to 885791YP)

$12.99

$

Usually ships in 2-12 days

0

0740

Murray 1935048

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0
