EMT 1838 RDF (1696110-00) - Murray 96cm Rear-Discharge Lawn Tractor, 18hp (2012) 96cm Mower Deck - Housing, Arbors & Blade Group (885709a) Parts Diagram

96cm Rear-Discharge Lawn Tractor, 18hp

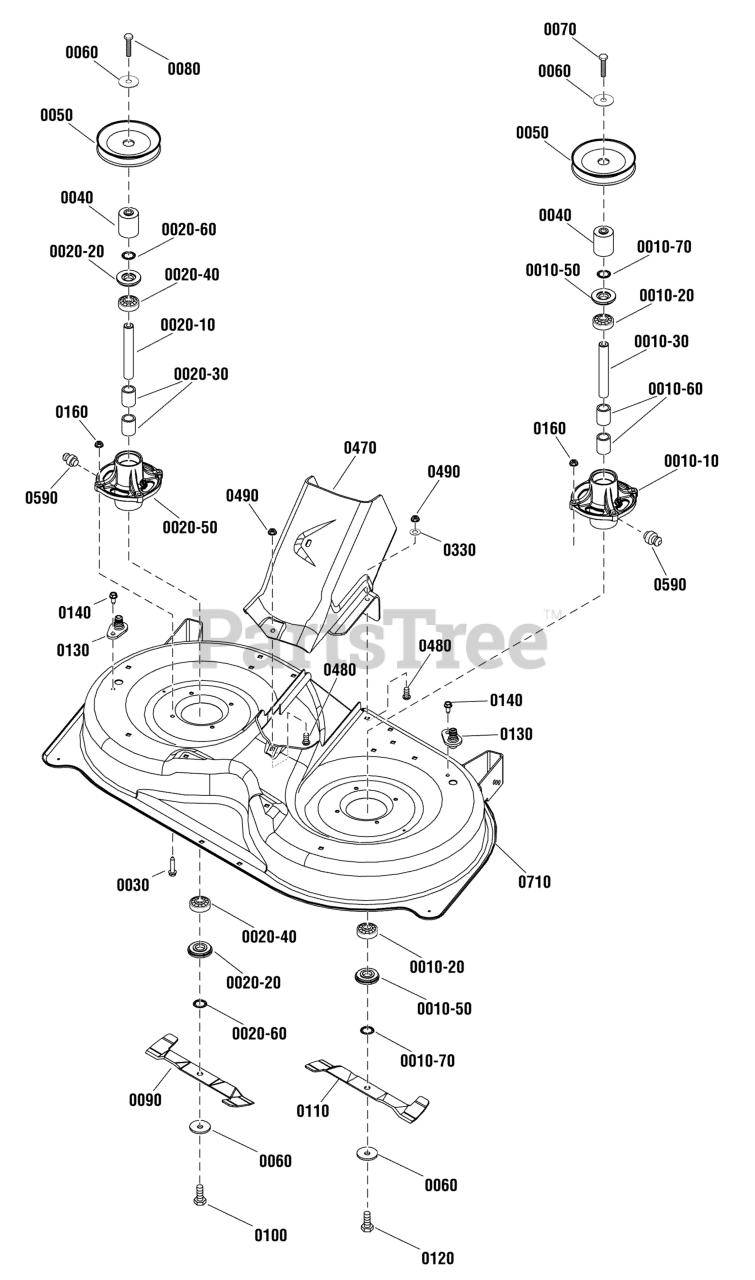

96cm Mower Deck - Housing, Arbors & Blade Group (885709a) Parts Diagram

  • Title

0010-10

Murray 1735573YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, Qty 8

0

0010-20

Murray 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0010-30

Murray 1735326YP

SHAFT, Spindle, LH
(Superseded to 1760276YP)

$27.99

$

In Stock, only 4 left!

0

0010-50

Murray 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 2 left!

0

0010-60

Murray 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 3 left!

0

0010-70

Murray 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0020-10

Murray 885420YP

SHAFT, Spindle, RH (LH Thread)
(Superseded to 1760279YP)

$46.99

$

Usually ships in 2-12 days

0

0020-20

Murray 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 2 left!

0

0020-30

Murray 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 3 left!

0

0020-40

Murray 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0020-50

Murray 1735573YP

HOUSING, Spindle
(Superseded to 84003654)

$43.99

$

In Stock, Qty 8

0

0020-60

Murray 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0030

Murray 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0040

Murray 1750338YP

SPACER, Mower Drive

$16.99

$

Usually ships in 2-12 days

0

0050

Murray 1737835YP

PULLEY, Deep Groove

$20.99

$

In Stock, only 1 left!

0

0060

Murray 1656916SM

WASHER, Spring, 0.475ID x 1-3/4 OD

$7.49

$

In Stock, Qty 20+

0

0070

Murray 1926110SM

CAPSCREW, Hex Head, 7/16-14 x 2-3/4. G5

$6.49

$

Usually ships in 2-12 days

0

0080

Murray 885456YP

CAPSCREW, Socket Head, 7/16-14 x 2-3/4, LH
(Superseded to 703846)

$8.99

$

Usually ships in 2-12 days

0

0090

Murray 885418BZYP

BLADE, RH, 19.5"
(Superseded to 885418BMYP)

$33.99

$

Usually ships in 2-12 days

0

0100

Murray 885455YP

CAPSCREW, Socket Head, 7/16-14 x 1, LH
(Superseded to 703845)

$10.99

$

In Stock, only 2 left!

0

0110

Murray 885419BZYP

BLADE, LH, 19.5"

$41.99

$

Usually ships in 2-12 days

0

0120

Murray 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 12

0

0130

Murray 1735716YP

ADAPTER, Washout Port
(Superseded to 1687721YP)

$13.99

$

Usually ships in 2-12 days

0

0140

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0160

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0330

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

0470

Murray 885460YP

CENTER CAP, Deck

$193.99

$

Usually ships in 2-12 days

0

0480

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0490

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0590

Murray 1704314SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0710

Murray 885557AYP

DECK ASSEMBLY, 96cm
(Superseded to 709692)

$445.99

$

Usually ships in 2-12 days

0
