EMT 17538 RDF (1696109-00) - Murray 96cm Rear-Discharge Lawn Tractor, 17.5hp (2012) Wheel & Tires Group (W885820) Parts Diagram

96cm Rear-Discharge Lawn Tractor, 17.5hp

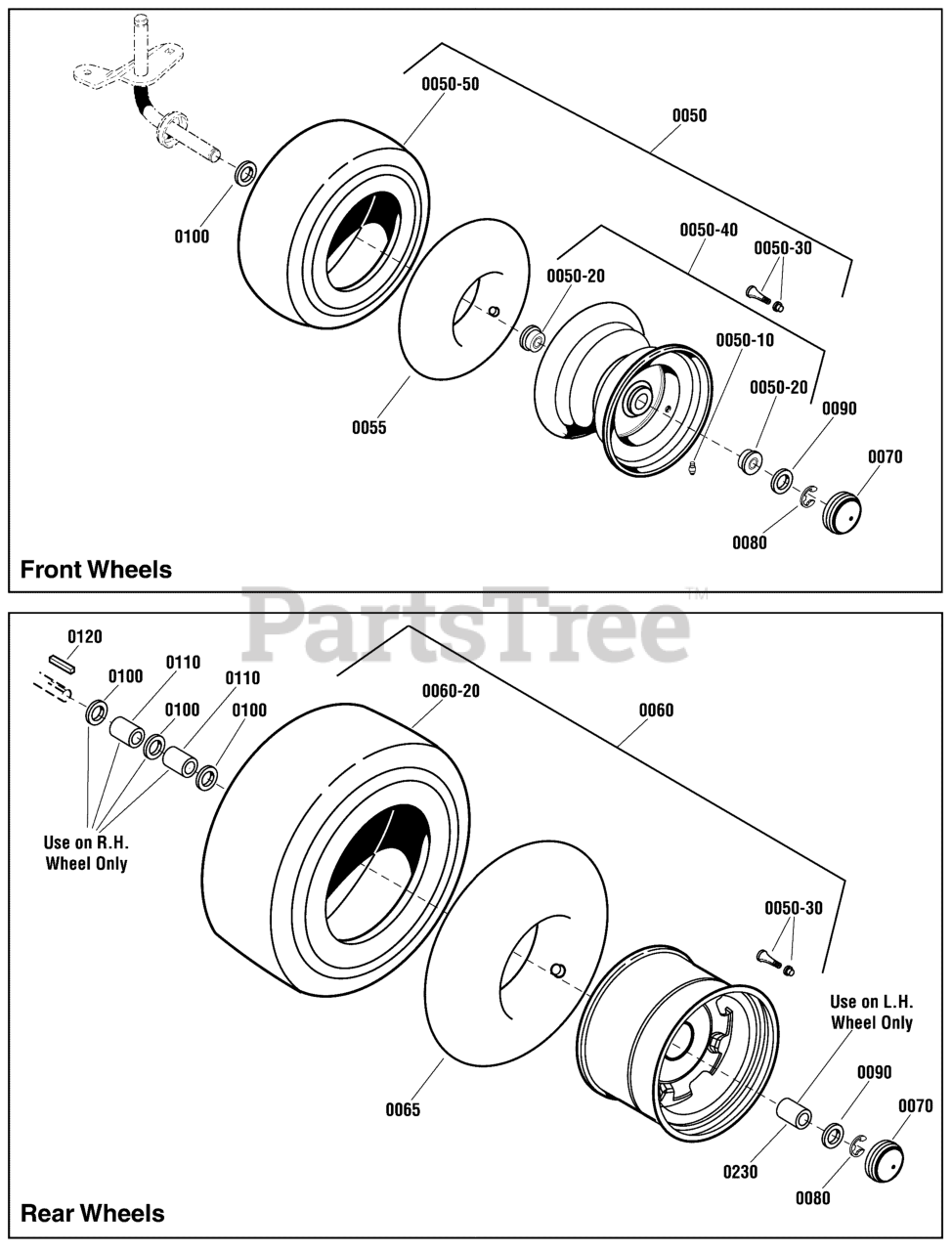

Wheel & Tires Group (W885820) Parts Diagram

  • Title

0020

Murray 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

0050

Murray 1729708SM

WHEEL& TIRE ASSEMBLY, Front

Note: (Includes Ref. Nos. 0050-10, 0050-20, 0050-30, 0050-40 & 0050-50)

$168.99

$

Usually ships in 2-12 days

0

0050-10

Murray 2812808SM

FITTING, Lube

$4.49

$

In Stock, Qty 20+

0

0050-20

Murray 1713167SM

BEARING, 3/4
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

0050-30

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$

$

Not available

0050-40

Murray 1726301SM

WHEEL & BUSHINGS ASSEMBLY, Front

Note: (Includes Ref. Nos. 0050-10 & 0050-30)

$82.99

$

In Stock, only 1 left!

0

0050-50

Murray 1731951SM

TIRE, Kenda, Turf Rider, Front, 15 x 6.00 - 6

$131.99

$

In Stock, Qty 8

0

0055

Murray 1664090SM

TUBE, Tire, Front

$26.99

$

In Stock, only 3 left!

0

0060

Murray 885457YP

WHEEL & TIRE ASSEMBLY, Rear, 20 X 8-8

Note: (Includes Ref. Nos. 0050-30 & 0060-20)

$239.99

$

Usually ships in 2-12 days

0

0060-20

TIRE, Rear, K358 x 20 x 8.94-8

Note: (Not a serviceable part, order Ref. 0060)

$

$

Not available

0065

Murray 2164247SM

TUBE, Tire, Rear

$40.99

$

Usually ships in 2-12 days

0

0070

Murray 094618MA

HUB CAP

$5.99

$

In Stock, only 4 left!

0

0080

Murray 0011X3MA

E-RING

$5.49

$

In Stock, Qty 20+

0

0090

Murray 17X195MA

WASHER, Flat

$4.99

$

In Stock, only 4 left!

0

0100

Murray 17X160MA

WASHER, Flat, 3/4 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

0110

Murray 1730181SM

SPACER, 3/4 ID x 1-1/4 OD x 1-5/8, RH

Note: (Use on R.H. Side Only)

$9.49

$

In Stock, only 2 left!

0

0120

Murray 021553MA

KEY, Square, 3/16

$4.99

$

In Stock, only 2 left!

0

0230

Murray 885578YP

SPACER, Wheel, LH

Note: (Use on L.H. Side Only)

$6.99

$

Usually ships in 2-12 days

0
