EMT 17538 RDF (1696109-00) - Murray 96cm Rear-Discharge Lawn Tractor, 17.5hp (2012) 96cm Mower Deck - Clutch Group (885709b) Parts Diagram

96cm Rear-Discharge Lawn Tractor, 17.5hp

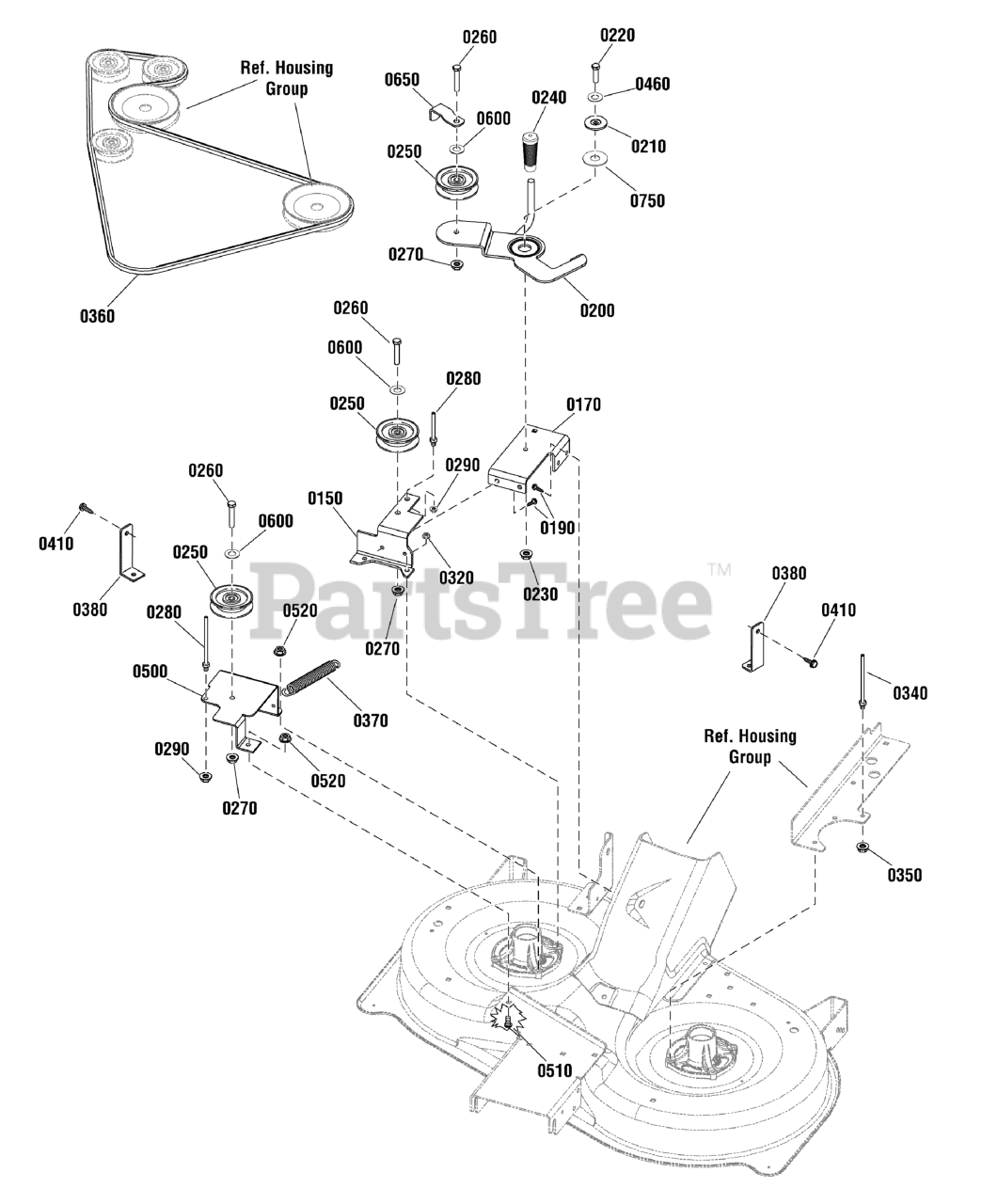

96cm Mower Deck - Clutch Group (885709b) Parts Diagram

  • Title

0150

Murray 885481BM

BRACKET, Idler, RH
(Superseded to 885481AYP)

$29.99

$

Usually ships in 2-12 days

0

0170

Murray 885516BM

SUPPORT, Idler Arm
(Superseded to 885516AYP)

$27.99

$

Usually ships in 2-12 days

0

0190

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0200

Murray 885559BM

DECK IDLER ASSEMBLY
(Superseded to 885559AYP)

$49.99

$

Usually ships in 2-12 days

0

0210

Murray 1727935

SPACER, Pivot, 0.330ID 1.76OD
(Superseded to 1727935SM)

$5.99

$

In Stock, only 3 left!

0

0220

Murray 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0230

Murray 720145

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0240

Murray 721120

GRIP
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

0250

Murray 885482

PULLEY, Deck Idler
(Superseded to 885482YP)

$33.99

$

In Stock, only 1 left!

0

0260

Murray 1923701

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

Usually ships in 2-12 days

0

0270

Murray 1931211

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0280

Murray 885534

BELT GUIDE
(Superseded to 885534YP)

$9.49

$

Usually ships in 2-12 days

0

0290

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0320

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0340

Murray 721974

BELT GUIDE, Long
(Superseded to 1401105MA)

$5.49

$

In Stock, Qty 5

0

0350

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0360

Murray 885483

BELT, DECK (91.35" EL, HAA section)
(Superseded to 885483YP)

$59.99

$

Usually ships in 2-12 days

0

0370

Murray 1715435

SPRING, Extension, 1
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

0380

Murray 885527BM

UPSTOP
(Superseded to 885527AYP)

$7.49

$

Usually ships in 2-12 days

0

0410

Murray 1664847SM

CAPSCREW, Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0460

Murray 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0500

Murray 885556BM

BRACKET, Idler, Fixed
(Superseded to 885556AYP)

$24.99

$

Usually ships in 2-12 days

0

0510

Murray 1921333

CAPSCREW, Hex Head, 5/16-18 x 1, G5
(Superseded to 703585)

$4.99

$

In Stock, only 1 left!

0

0520

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0600

Murray 1922755

WASHER, Flat, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 11

0

0650

Murray 1677135BM

GUARD, Spring
(Superseded to 1677135ASM)

$12.99

$

In Stock, Qty 8

0

0750

Murray 885649

SHIM

$

$

Not available
