EMT 16538 RD (2690927) - Murray 38" Rear-Discharge Lawn Tractor, 16.5hp (2011) Wheel & Tires Group (W885451) Parts Diagram

38" Rear-Discharge Lawn Tractor, 16.5hp

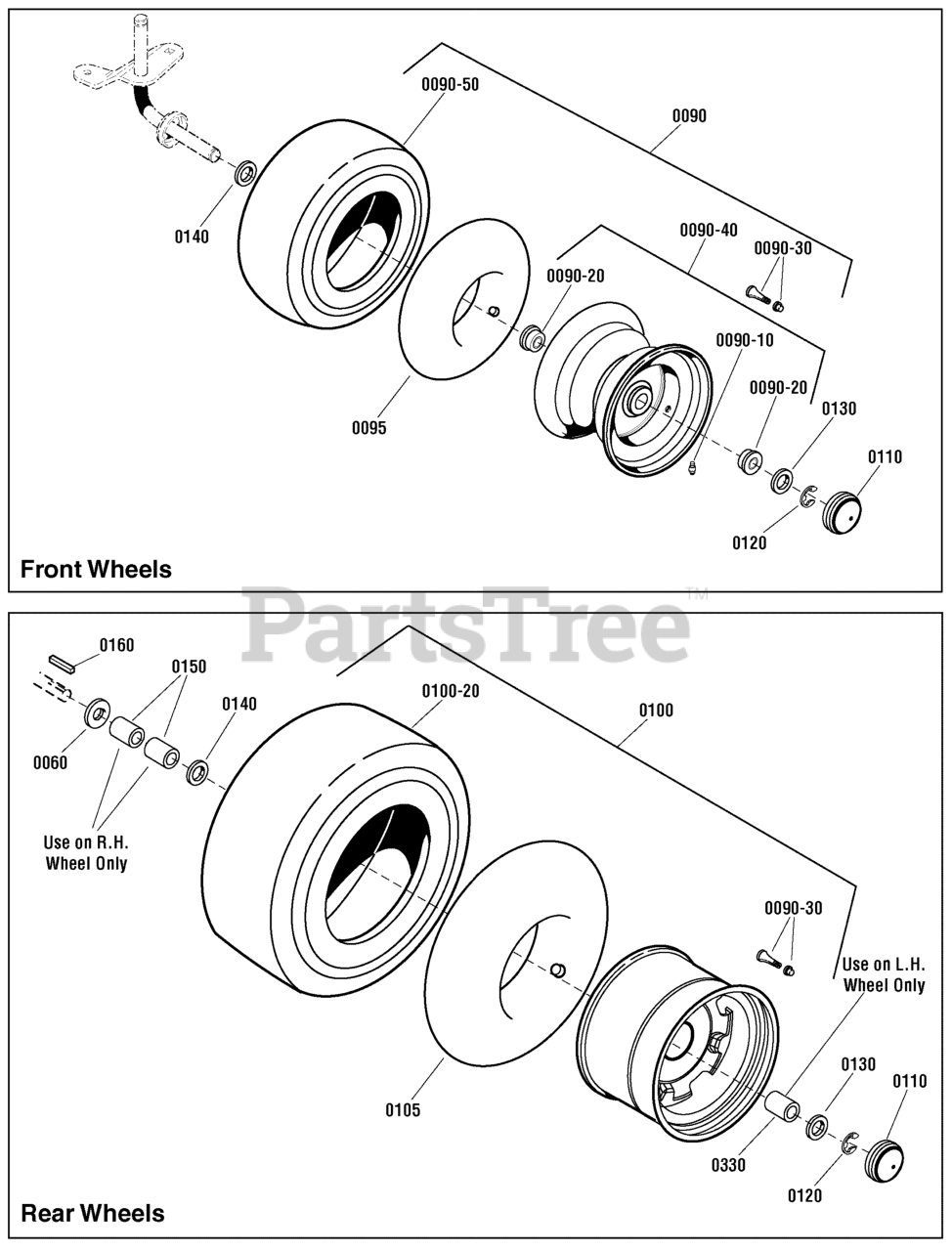

Wheel & Tires Group (W885451) Parts Diagram

  • Title

0060

Murray 2860202SM

WASHER, 3/4

$4.49

$

In Stock, Qty 20+

0

0090

Murray 1729708SM

WHEEL& TIRE ASSEMBLY, Front

Note: (Includes Ref. Nos. 0090-10, 0090-20, 0090-30, 0090-40 & 0090-50)

$168.99

$

Usually ships in 2-12 days

0

0090-10

Murray 2812808SM

FITTING, Lube

$4.49

$

In Stock, Qty 20+

0

0090-20

Murray 1713167SM

BEARING, 3/4
(Superseded to 1752171YP)

$11.99

$

In Stock, Qty 20+

0

0090-30

Murray 2172353SM

VALVE STEM & CAP
(Superseded to 024373MA)

$8.49

$

In Stock, only 2 left!

0

0090-40

Murray 1726301SM

WHEEL & BUSHINGS ASSEMBLY, Front

Note: (Includes Ref. Nos. 0090-10 & 0090-30)

$82.99

$

In Stock, only 1 left!

0

0090-50

Murray 1731951SM

TIRE, Kenda, Turf Rider, Front, 15 x 6.00 - 6

$131.99

$

In Stock, Qty 8

0

0095

Murray 1664090SM

TUBE, Tire, Front

$26.99

$

In Stock, only 3 left!

0

0100

Murray 885457YP

WHEEL & TIRE ASSEMBLY, Rear, 20 X 8-8

Note: (Includes Ref. Nos. 0090-30 & 0100-20)

$239.99

$

Usually ships in 2-12 days

0

0100-20

TIRE, Rear, K358 x 20 x 8.94-8

Note: (Not a serviceable part, order Ref. 0100)

$

$

Not available

0105

Murray 2164247SM

TUBE, Tire, Rear

$40.99

$

Usually ships in 2-12 days

0

0110

Murray 094618MA

HUB CAP

$5.99

$

In Stock, Qty 20+

0

0120

Murray 0011X3MA

E-RING

$5.49

$

In Stock, Qty 20+

0

0130

Murray 17X195MA

WASHER, Flat

$4.99

$

In Stock, Qty 20+

0

0140

Murray 17X160MA

WASHER, Flat, 3/4 x 1-1/4

$4.99

$

In Stock, Qty 20+

0

0150

Murray 1730181SM

SPACER, 3/4 ID x 1-1/4 OD x 1-5/8, RH

Note: (Use on R.H. Side Only)

$9.49

$

In Stock, only 2 left!

0

0160

Murray 021553MA

KEY, Square, 3/16

$4.99

$

In Stock, only 2 left!

0

0330

Murray 885578YP

SPACER, Wheel, LH

Note: (Use on L.H. Side Only)

$6.99

$

Usually ships in 2-12 days

0
