EMT 16538 RD (2690927) - Murray 38" Rear-Discharge Lawn Tractor, 16.5hp (2011) Seat Deck & Fuel Tank (885447) Parts Diagram

38" Rear-Discharge Lawn Tractor, 16.5hp

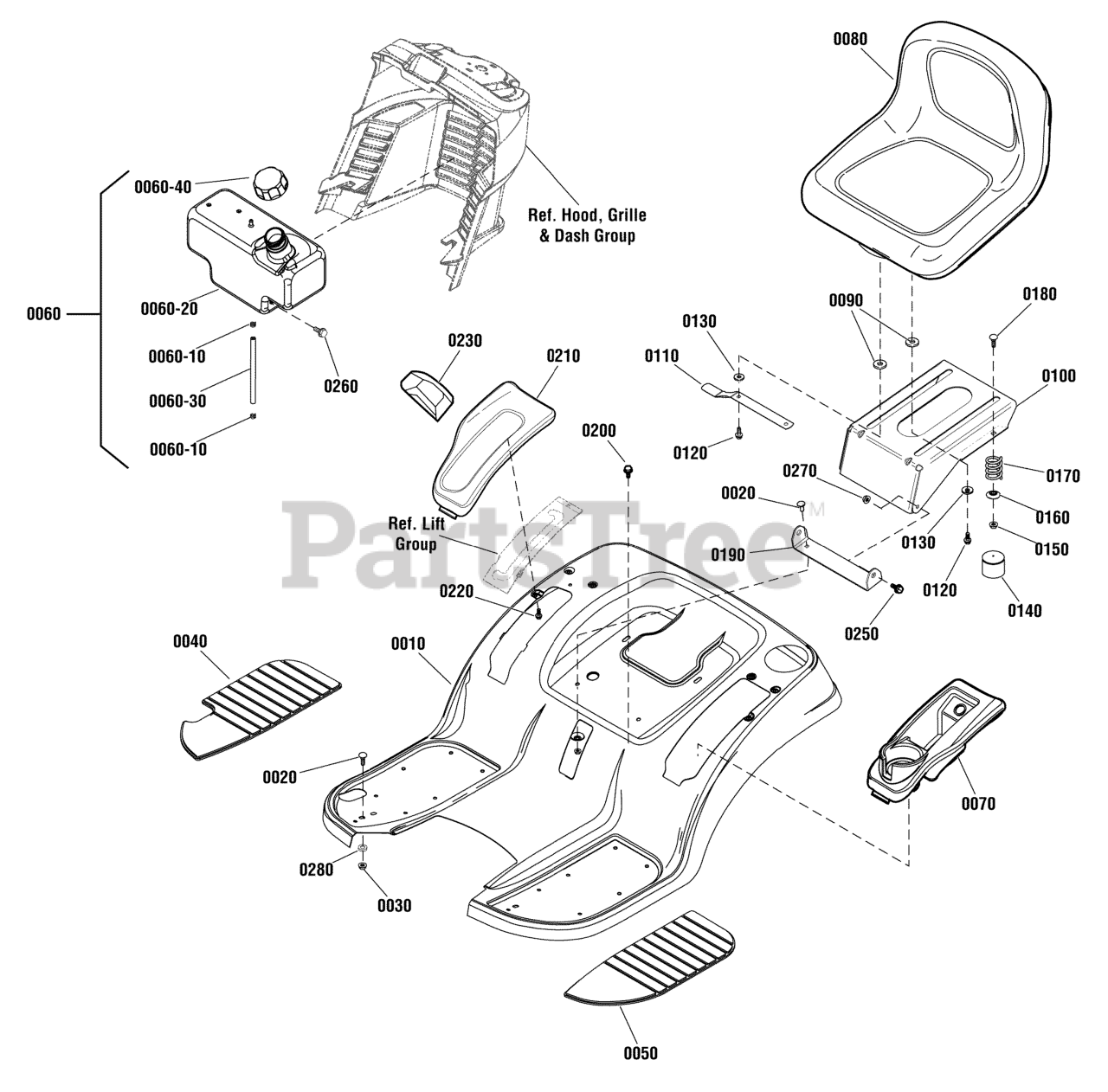

Seat Deck & Fuel Tank (885447) Parts Diagram

  • Title

0010

Murray 885415BIYP

DECK, Seat

$444.99

$

Usually ships in 2-12 days

0

0020

Murray 1931333SM

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

0030

Murray 1931277SM

NUT, Hex Flange Whiz Lock Small, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0040

Murray 1739014YP

PAD, Footrest, R.H.

$14.99

$

Usually ships in 2-12 days

0

0050

Murray 1739013YP

PAD, Footrest, L.H.

$16.99

$

Usually ships in 2-12 days

0

0060

Murray 885548YP

FUEL TANK ASSEMBLY

Note: (Includes Ref. Nos. 0060-10, 0060-20, 0060-30 & 0060-40)

$239.99

$

Usually ships in 2-12 days

0

0060-10

Murray 095197MA

CLAMP, Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

0060-20

TANK, Fuel

Note: (Not a serviceable part, order Ref. 0060)

$

$

Not available

0060-30

Murray 7200118YP

HOSE, Fuel

$8.99

$

Usually ships in 2-12 days

0

0060-40

Murray 092317MA

CAP, Gas

$10.99

$

In Stock, Qty 7

0

0070

Murray 1739536YP

POD, L.H.

$27.99

$

Usually ships in 2-12 days

0

0080

Murray 1730158SM

SEAT, Lo Back

$347.99

$

Usually ships in 2-12 days

0

0090

Murray 1731300SM

SPACER, 5/16 ID x 1-1/4 OD x 5/16

$5.49

$

Usually ships in 2-12 days

0

0100

Murray 885549AYP

SUPPORT, Seat

$90.99

$

Usually ships in 2-12 days

0

0110

Murray 1727268SM

LATCH, Seat

$8.99

$

Usually ships in 2-12 days

0

0120

Murray 770697

CAPSCREW, Hex Flange Whiz Lock, 5/16-18 x 1

$

$

Not available

0130

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

Usually ships in 2-12 days

0

0140

Murray 1704724SM

COVER, Spring

$7.99

$

In Stock, only 4 left!

0

0150

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0160

Murray 1709256SM

WASHER, Spring, 5/16 x 1 1/4

$5.99

$

In Stock, only 2 left!

0

0170

Murray 1704728SM

SPRING, Compression

$9.99

$

In Stock, only 2 left!

0

0180

Murray 1960282SM

BOLT, Carriage, 5/16-18 x 3/4 G5
(Superseded to 703225)

$3.99

$

In Stock, Qty 18

0

0190

Murray 885538AYP

PIVOT, Seat

$17.99

$

Usually ships in 2-12 days

0

0200

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0210

Murray 1739538YP

POD, R.H.

$27.99

$

Usually ships in 2-12 days

0

0220

Murray 1960536SM

SCREW, Hex Washer Head, Plastite, 1/4 x 1/2

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1739056YP

GRIP

$5.99

$

Usually ships in 2-12 days

0

0250

Murray 1921958SM

CAPSCREW, Hex Head, 1/4-20 x 1/2, G5

$3.99

$

Usually ships in 2-12 days

0

0260

Murray 1729576SM

BOLT, Shoulder, 5/16-18 x 15/32
(Superseded to 703851)

$5.49

$

In Stock, only 1 left!

0

0270

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0280

Murray 885382YP

WASHER, Rubber

$3.99

$

Usually ships in 2-12 days

0
