EMT 16538 RD (2690927) - Murray 38" Rear-Discharge Lawn Tractor, 16.5hp (2011) Hood, Grille & Dash Group (885572) Parts Diagram

38" Rear-Discharge Lawn Tractor, 16.5hp

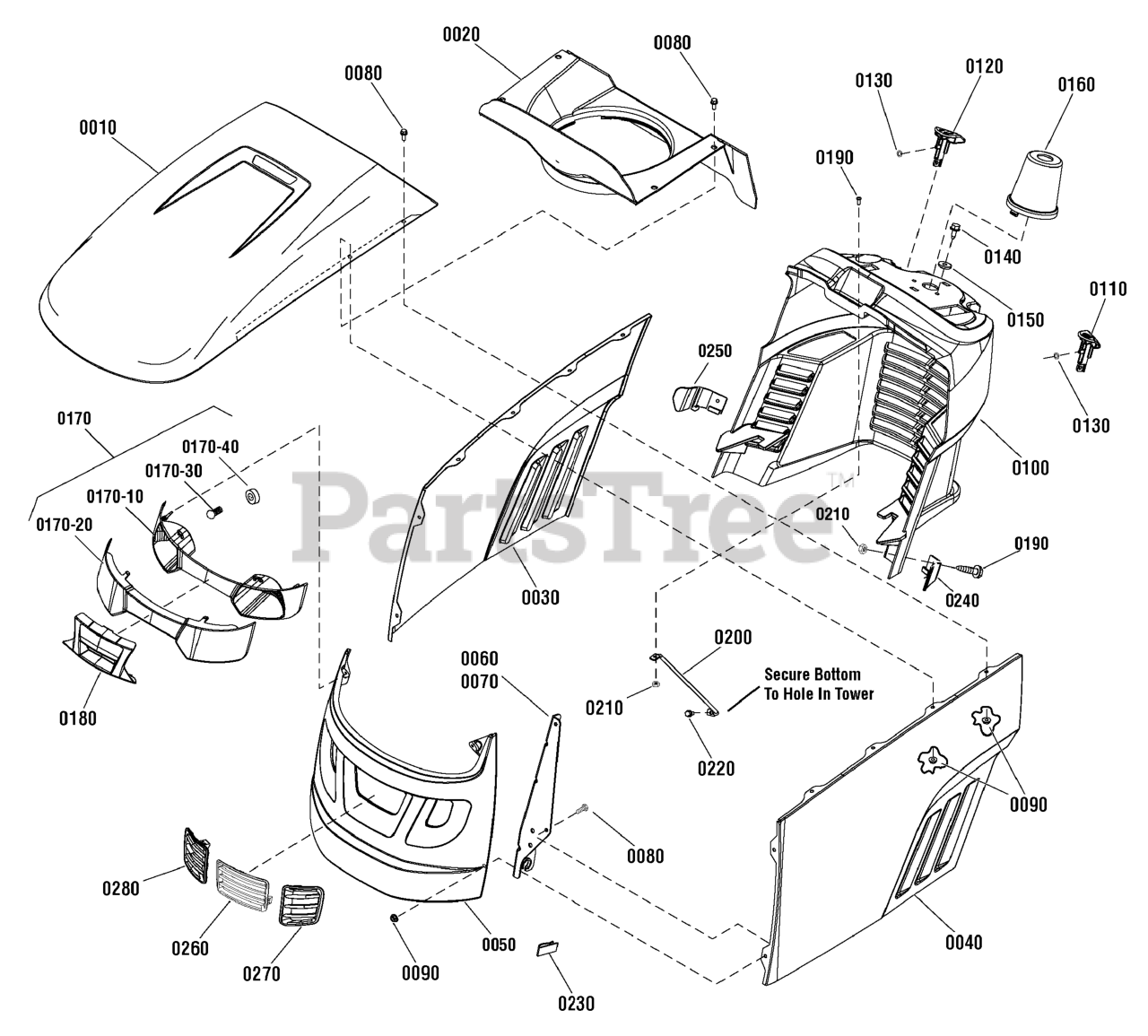

Hood, Grille & Dash Group (885572) Parts Diagram

  • Title

0010

Murray 1728031BIYP

HOOD, With Scoop

$274.99

$

Usually ships in 2-12 days

0

0020

Murray 7102326YP

AIR DUCT, Plenum

$131.99

$

In Stock, only 1 left!

0

0030

Murray 1727294BIYP

PANEL, Side, R.H.

$125.99

$

Usually ships in 2-12 days

0

0040

Murray 1727295BIYP

PANEL, Side, L.H.

$125.99

$

Usually ships in 2-12 days

0

0050

Murray 1738914BIYP

GRILLE

$

$

Not available

0060

Murray 1727279SM

HINGE, Hood, L.H.
(Superseded to 1727279BMYP)

$20.99

$

Usually ships in 2-12 days

0

0070

Murray 1727280SM

HINGE, Hood, R.H.
(Superseded to 1727280ASM)

$20.99

$

Usually ships in 2-12 days

0

0080

Murray 1960295SM

CAPSCREW, Hex Flange Whiz Lock, 1/4-20 x 5/8

$4.49

$

In Stock, only 1 left!

0

0090

Murray 1930641SM

NUT, Hex Flange Whiz Lock Large, 1/4-20
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

0100

Murray 885571YP

CONSOLE

$319.99

$

Usually ships in 2-12 days

0

0110

Murray 1728089SM

KNOB, Brake Lock, Red

$7.49

$

In Stock, only 4 left!

0

0120

Murray 1728090SM

KNOB, Cruise Lock, Green

$7.49

$

In Stock, Qty 10

0

0130

Murray 1960518SM

PUSHNUT, 1/4
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

0140

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0150

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

0160

Murray 1739106YP

COVER

$39.99

$

Usually ships in 2-12 days

0

0170

Murray 1727296SM

HEADLIGHT ASSEMBLY

Note: (Includes Ref. Nos. 0170-10, 0170-20, 0170-30 & 0170-40)

$237.99

$

In Stock, Qty 7

0

0170-10

Murray 1728973SM

REFLECTOR
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

0170-20

Murray 1728974SM

LENS, Headlight
(Superseded to 1727296SM)

$237.99

$

In Stock, Qty 7

0

0170-30

Murray 1677371SM

BULB, Headlight, 1141-12V 21CP

$30.99

$

In Stock, only 1 left!

0

0170-40

Murray 1723451SM

SOCKET

$28.99

$

In Stock, only 1 left!

0

0180

Murray 1728975SM

INSERT, Lightbar

$12.99

$

In Stock, only 1 left!

0

0190

Murray 1960392SM

SCREW, Pan Head Phillips, #10-24 x 1

$3.99

$

Usually ships in 2-12 days

0

0200

Murray 885435AYP

ROD, Bagger Support

$18.99

$

Usually ships in 2-12 days

0

0210

Murray 1933896SM

NUT, Nylock, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 4 left!

0

0220

Murray 1925003SM

CAPSCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 11

0

0230

Murray 028X83MA

S-CLIP

$3.99

$

In Stock, only 2 left!

0

0240

Murray 1732030SM

GUIDE, Hood, L.H.

$7.49

$

In Stock, only 2 left!

0

0250

Murray 1732031SM

GUIDE, Hood, R.H.

$7.49

$

In Stock, Qty 5

0

0260

Murray 1741762MA

GRILLE, Center

$42.99

$

Usually ships in 2-12 days

0

0270

Murray 1741763MA

GRILLE, L.H.

$16.99

$

Usually ships in 2-12 days

0

0280

Murray 1741764MA

GRILLE, R.H.

$16.99

$

Usually ships in 2-12 days

0
