EMT 16538 RD (2690927) - Murray 38" Rear-Discharge Lawn Tractor, 16.5hp (2011) 38" Mower Deck - Clutch Group (885454b) Parts Diagram

38" Rear-Discharge Lawn Tractor, 16.5hp

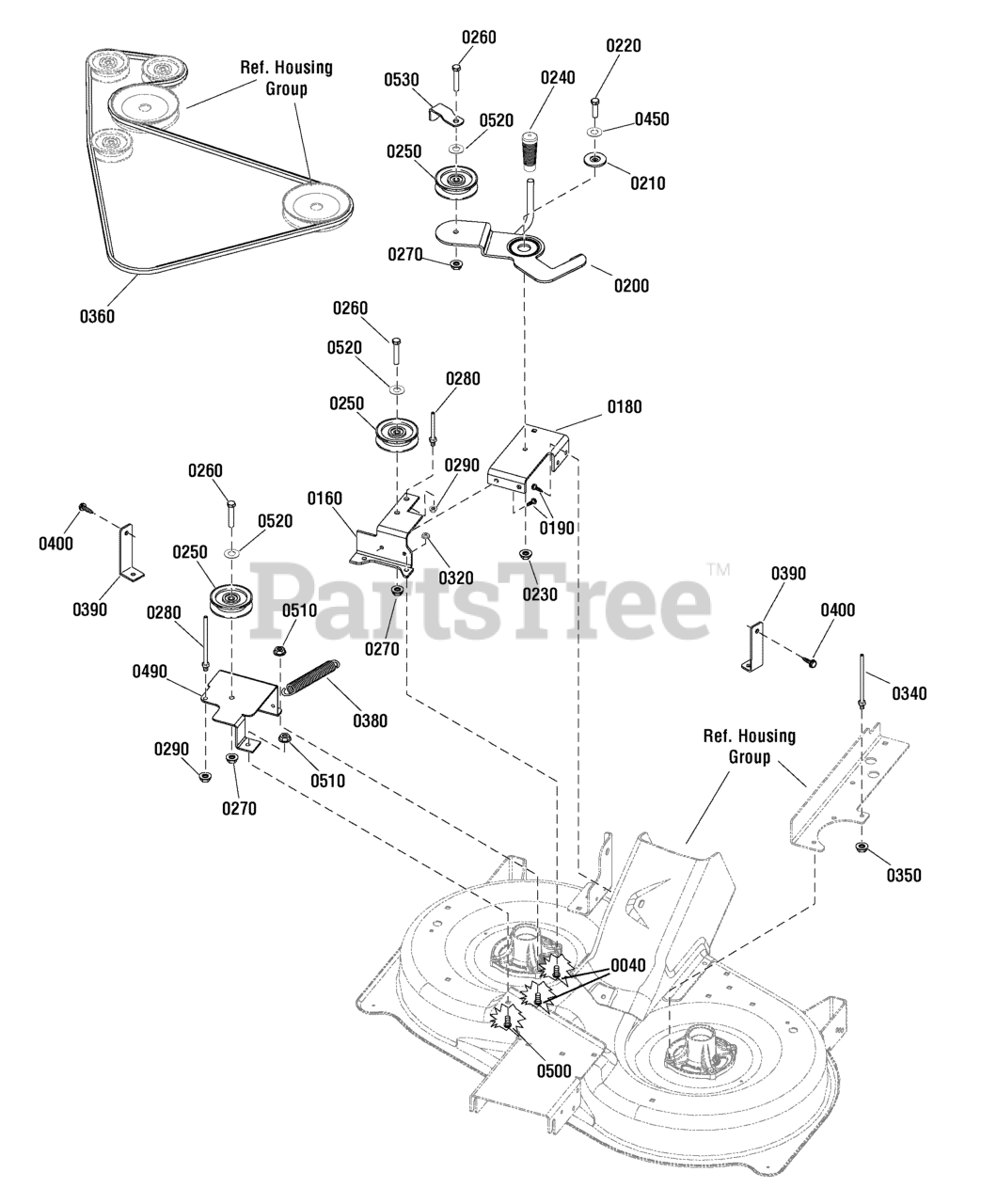

38" Mower Deck - Clutch Group (885454b) Parts Diagram

  • Title

0040

Murray 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0160

Murray 885481AYP

BRACKET, Idler, RH

$29.99

$

Usually ships in 2-12 days

0

0180

Murray 885516AYP

SUPPORT, Idler Arm

$27.99

$

Usually ships in 2-12 days

0

0190

Murray 1664847SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0200

Murray 885559AYP

DECK IDLER ASSEMBLY

$49.99

$

Usually ships in 2-12 days

0

0210

Murray 1727935SM

SPACER, Pivot, 0.330ID 1.76OD

$5.99

$

In Stock, only 1 left!

0

0220

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 015X88MA

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0240

Murray 092697MA

GRIP
(Superseded to 1753233YP)

$6.99

$

In Stock, Qty 20+

0

0250

Murray 885482YP

IDLER, Pulley

$33.99

$

In Stock, only 1 left!

0

0260

Murray 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, G5
(Superseded to 703589)

$4.49

$

In Stock, only 1 left!

0

0270

Murray 1931211SM

NUT, Hex Flange, Whiz Lock, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

0280

Murray 885534YP

BELT GUIDE

$9.49

$

Usually ships in 2-12 days

0

0290

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0320

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0340

Murray 1401105MA

BELT GUIDE, Long

$5.49

$

In Stock, Qty 5

0

0350

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0360

Murray 885483YP

BELT, DECK

$59.99

$

Usually ships in 2-12 days

0

0380

Murray 1715435SM

SPRING, Extension, 1

$9.49

$

In Stock, Qty 20+

0

0390

Murray 885527AYP

UPSTOP

$7.49

$

Usually ships in 2-12 days

0

0400

Murray 1664847SM

CAPSCREW, Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0450

Murray 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 5

0

0490

Murray 885556AYP

BRACKET, Idler, Fixed

$24.99

$

Usually ships in 2-12 days

0

0500

Murray 1921333SM

CAPSCREW, Hex Head, 5/16-18 x 1
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

0510

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0520

Murray 1922755SM

WASHER, Flat, 3/8
(Superseded to 704128)

$4.99

$

In Stock, Qty 9

0

0530

Murray 1677135ASM

GUARD, Belt

$12.99

$

In Stock, Qty 8

0
