EMT 155420 H (2691080) - Murray 42" Side-Discharge Lawn Tractor, 15.5hp (2012) Engine Group - 15.5HP Parts Diagram

42" Side-Discharge Lawn Tractor, 15.5hp

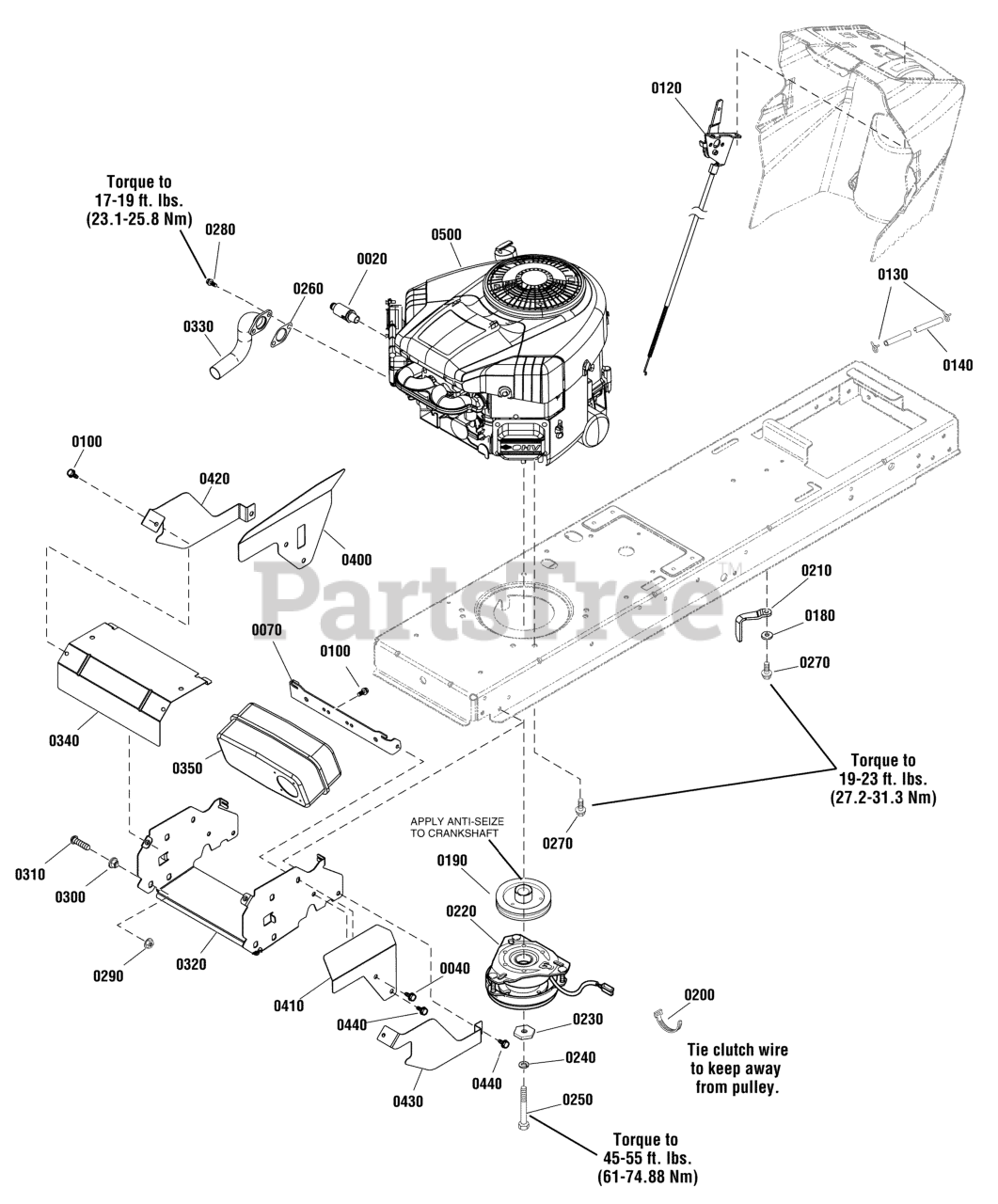

Engine Group - 15.5HP Parts Diagram

  • Title

0020

Murray 1750159YP

VALVE, Drain

$15.99

$

Usually ships in 2-12 days

0

0040

Murray 1930601SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, only 3 left!

0

0070

Murray 1727976SM

SUPPORT, Muffler
(Superseded to 1727976BMYP)

$14.99

$

Usually ships in 2-12 days

0

0100

Murray 1925003SM

SCREW, Hex Washer Head, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

0120

Murray 1751102YP

CABLE, Throttle Assembly, 23"

$43.99

$

Usually ships in 2-12 days

0

0130

Murray 93053B

CLAMP, Hose Band

$

$

Not available

0140

Murray 7200116

HOSE, Fuel
(Superseded to 7200116YP)

$8.99

$

In Stock, only 1 left!

0

0180

Murray 1924940SM

WASHER, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

0190

Murray 1732576SM

PULLEY & HUB ASSEMBLY

$42.99

$

In Stock, only 1 left!

0

0200

Murray 1701011SM

TIE, Self Lock

$5.49

$

In Stock, only 2 left!

0

0210

Murray 1737421AYP

GUIDE, Belt, Long

$12.99

$

In Stock, Qty 10

0

0220

Murray 1736105SM

CLUTCH, Electric

$387.99

$

Usually ships in 2-12 days

0

0230

Murray 1708264SM

WASHER, Hex, 7/16

$8.99

$

In Stock, Qty 5

0

0240

Murray 1918199SM

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 20+

0

0250

Murray 1960649SM

CAPSCREW, Hex Head, 7/16-20 x 3-1/2, G5

$7.49

$

In Stock, only 1 left!

0

0260

Murray 1731214SM

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

0270

Murray 0025X7MA

SCREW, Self Tap, 3/8-16 x 1-1/4
(Superseded to 2828635SM)

$4.99

$

In Stock, Qty 20+

0

0280

Murray 690341

SCREW

$5.99

$

In Stock, only 3 left!

0

0290

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0300

Murray 1728086SM

PIVOT, Hood

$5.99

$

In Stock, Qty 7

0

0310

Murray 1931335SM

BOLT, Carriage, Short Neck, 5/16-18 x 1
(Superseded to 703800)

$3.99

$

In Stock, Qty 7

0

0320

Murray 1738265AYP

SUPPORT, Muffler & Hood Pivot

$67.99

$

Usually ships in 2-12 days

0

0330

Murray 1728959SM

PIPE, Exhaust

$34.99

$

Usually ships in 2-12 days

0

0340

Murray 1727996SM

HEAT SHIELD
(Superseded to 7300918ASM)

$48.99

$

Usually ships in 2-12 days

0

0350

Murray 1727993SM

MUFFLER

$93.99

$

In Stock, only 1 left!

0

0400

Murray 1752460BMYP

GUARD, Exhaust, RH

$21.99

$

Usually ships in 2-12 days

0

0410

Murray 1752476BMYP

GUARD, Exhaust, LH

$16.99

$

Usually ships in 2-12 days

0

0420

Murray 1752477BMYP

STRAP, Exhaust Guard, RH

$21.99

$

Usually ships in 2-12 days

0

0430

Murray 1752478BMYP

STRAP, Exhaust Guard, LH

$21.99

$

Usually ships in 2-12 days

0

0440

Murray 26X249MA

CAPSCREW, 5/16-18 x 3/4

$

$

Not available

0500

Murray 31A607-0164-B1

* ENGINE, 15.5HP Briggs & Stratton

$

$

Currently unavailable
