EMT 155420 H (2691080) - Murray 42" Side-Discharge Lawn Tractor, 15.5hp (2012) 42" Mower Deck - Height Adjust & Roller Group Parts Diagram

42" Side-Discharge Lawn Tractor, 15.5hp

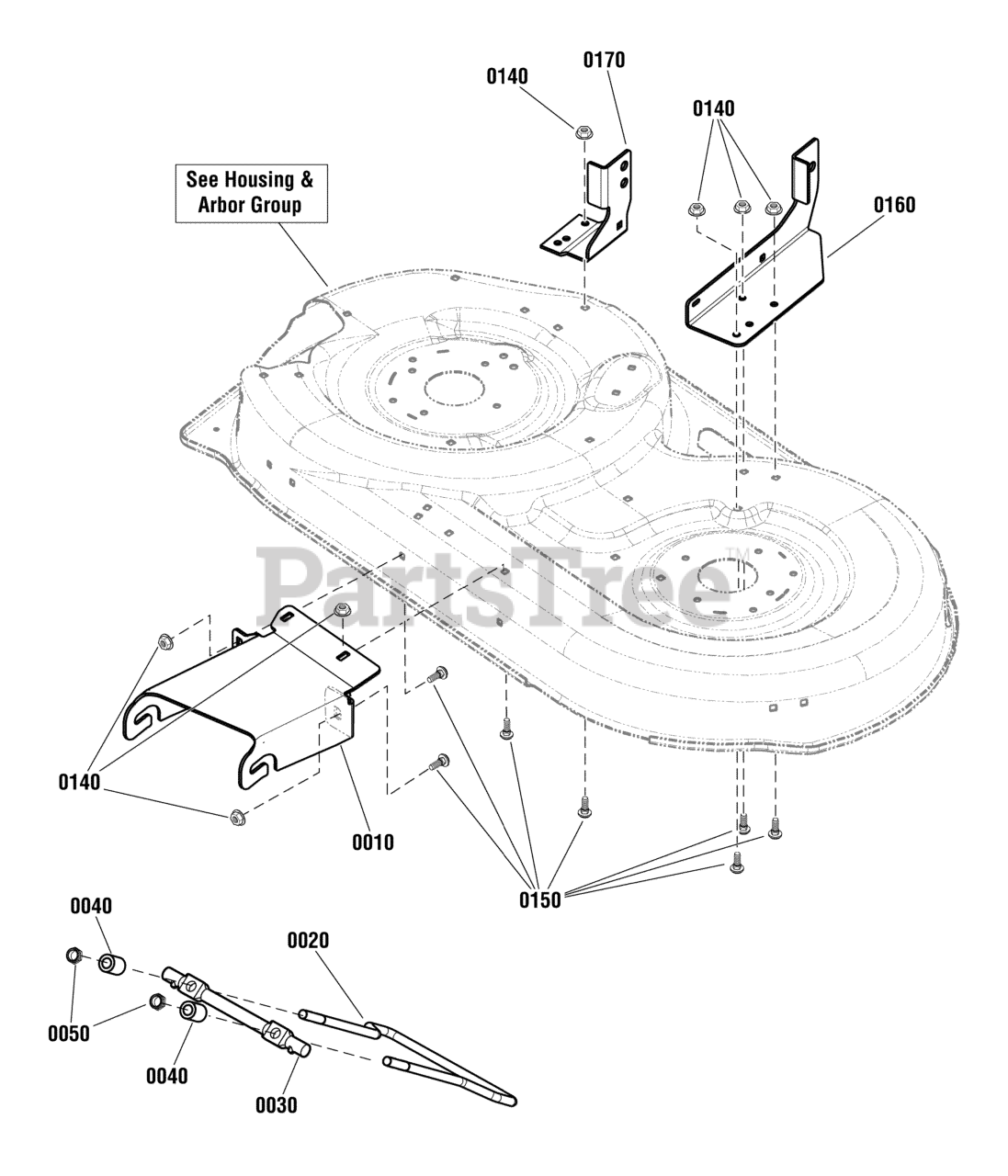

42" Mower Deck - Height Adjust & Roller Group Parts Diagram

  • Title

0010

Murray 1731966BM

HITCH, Front
(Superseded to 1731966BMYP)

$49.99

$

Usually ships in 2-12 days

0

0020

Murray 1730097

ROD, Bail
(Superseded to 1730097SM)

$43.99

$

Usually ships in 2-12 days

0

0030

Murray 1751385

ROD, Front Mower Lift
(Superseded to 1751385YP)

$13.99

$

Usually ships in 2-12 days

0

0040

Murray 1750997

SPACER, 1/2 ID x 7/8 OD x 11/16" Long
(Superseded to 1750997YP)

$4.49

$

Usually ships in 2-12 days

0

0050

Murray 1960379

NUT, Hex Lock, ESNA Light, 1/2-13
(Superseded to 1960379SM)

$4.99

$

In Stock, Qty 18

0

0140

Murray 1931277

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0150

Murray 1931333

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0160

Murray 1753662BM

SUPPORT, Mower, LH
(Superseded to 1753662BMYP)

$40.99

$

Usually ships in 2-12 days

0

0170

Murray 1753663BM

SUPPORT, Mower, RH
(Superseded to 1753663BMYP)

$15.99

$

In Stock, only 1 left!

0
