EMT 155420 H (2690986) - Murray 42" Side-Discharge Lawn Tractor, 15.5hp (2011) Transmission Group - Tuff Torq Parts Diagram

42" Side-Discharge Lawn Tractor, 15.5hp

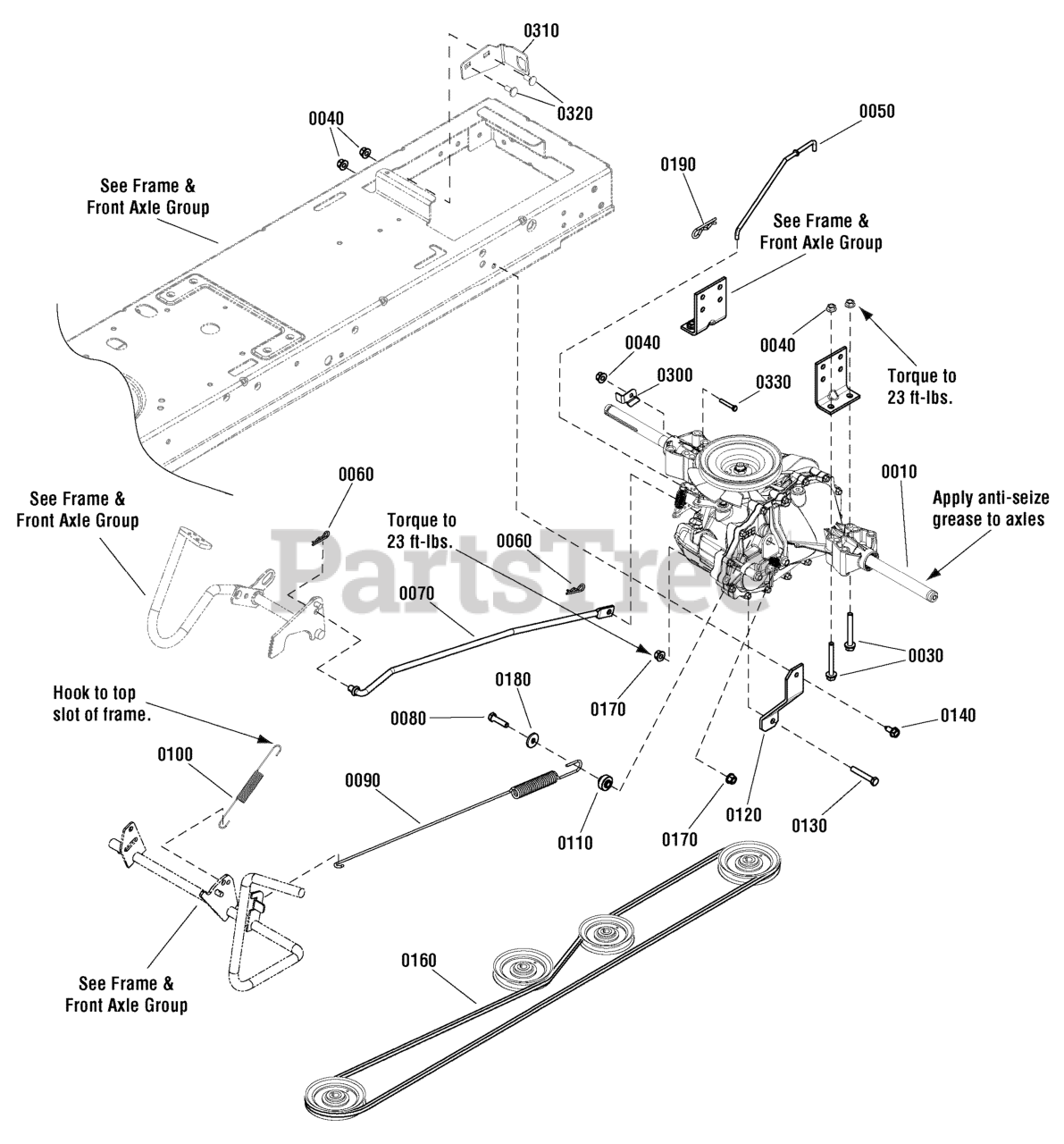

Transmission Group - Tuff Torq Parts Diagram

  • Title

0010

Murray 1751792YP

TRANSMISSION, Hydro-Gear, T2

$1082.99

$

Usually ships in 2-12 days

0

0030

Murray 1960586SM

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 2-1/2

$4.99

$

Usually ships in 2-12 days

0

0040

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0050

Murray 1736716YP

ROD, Free Wheel
(Superseded to 1759749YP)

$14.99

$

Usually ships in 2-12 days

0

0060

Murray 1722460SM

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0070

Murray 1751733YP

ROD, Speed Control

$29.99

$

Usually ships in 2-12 days

0

0080

Murray 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

0090

Murray 1736409YP

SPRING, Extension

$16.99

$

Usually ships in 2-12 days

0

0100

Murray 1721995SM

SPRING, Extension, 5/8 x 6-5/8

$8.49

$

Usually ships in 2-12 days

0

0110

Murray 1736854YP

SPACER

$14.99

$

Usually ships in 2-12 days

0

0120

Murray 1736410AYP

STRAP, Torque

$20.99

$

In Stock, only 1 left!

0

0130

Murray 1921978SM

CAPSCREW, Hex Head, 5/16-18 x 2, G5
(Superseded to 703867)

$4.99

$

In Stock, only 4 left!

0

0140

Murray 1664847SM

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0160

Murray 1737441YP

V-BELT, Drive Belt, HA, 88.46

$51.99

$

Usually ships in 2-12 days

0

0170

Murray 1960686SM

NUT, Hex Flange, ESNA, 5/16-18
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

0180

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 1 left!

0

0190

Murray 1960221SM

CLIP, Hairpin
(Superseded to 704039)

$4.49

$

In Stock, Qty 9

0

0300

Murray 1751901BMYP

BRACKET, Switch Actuator

$16.99

$

Usually ships in 2-12 days

0

0310

Murray 1751900BMYP

SUPPORT, Switch

$16.99

$

Usually ships in 2-12 days

0

0320

Murray 1931333SM

BOLT, Carriage, Short Neck, 5/16-18 x 3/4, G5
(Superseded to 703185)

$3.49

$

In Stock, Qty 20+

0

0330

Murray 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4, G5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0
