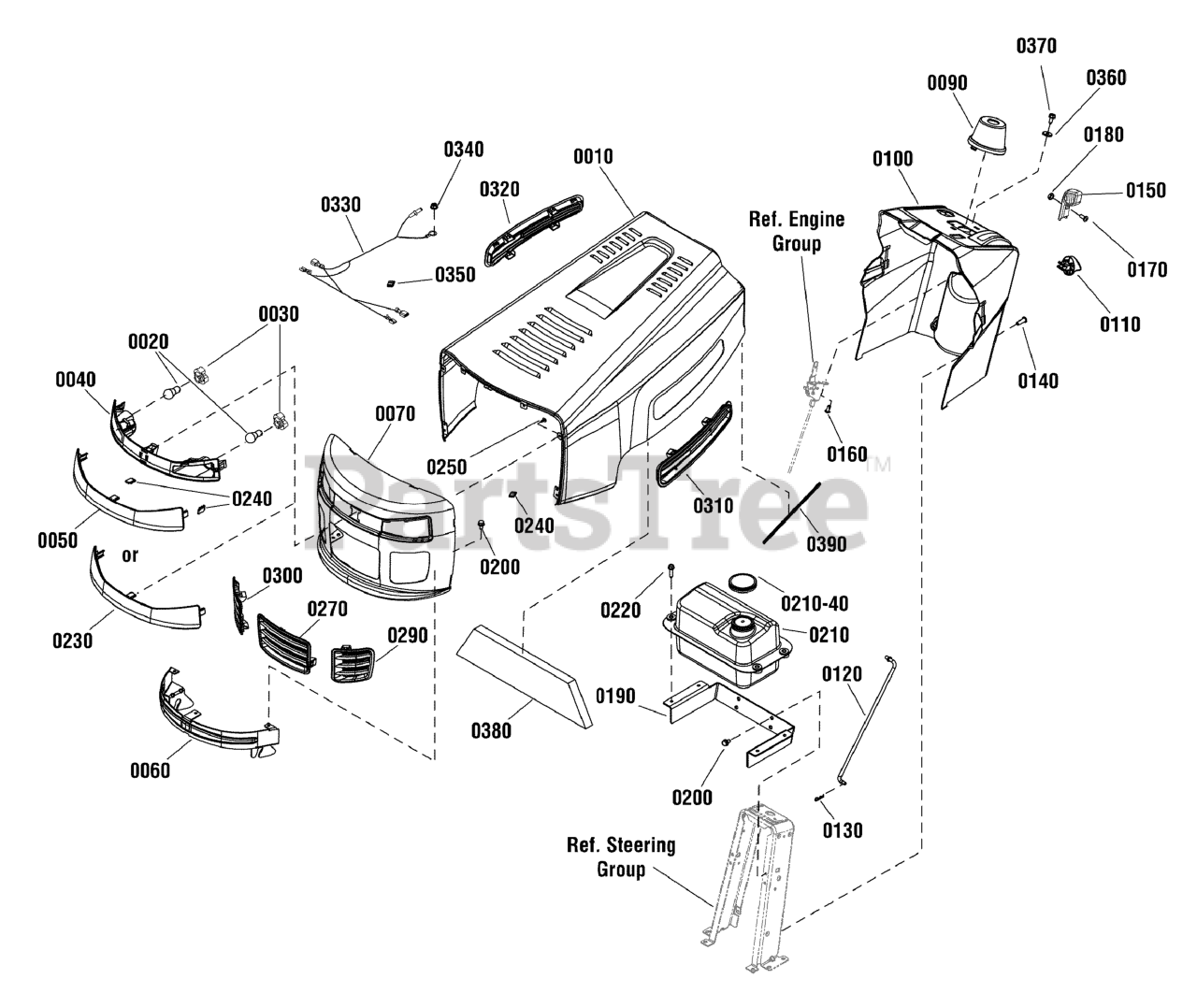

EMT 155420 H (2690986) - Murray 42" Side-Discharge Lawn Tractor, 15.5hp (2011) Hood Grille & Dash Group Parts Diagram

42" Side-Discharge Lawn Tractor, 15.5hp

Hood Grille & Dash Group Parts Diagram

  • Title

0010

Murray 1750971BIYP

HOOD
(Superseded to 1750971BMYP)

$444.99

$

Usually ships in 2-12 days

0

0020

Murray 1677371SM

*BULB, Headlight, 1156-12.8V, 27 Watts, 32 Candle Power

Note: (Used on 15.5HP)

$30.99

$

In Stock, only 1 left!

0

0030

Murray 1001716MA

SOCKET, Lamp

Note: (Used on 15.5HP)

$7.99

$

In Stock, Qty 7

0

0040

Murray 1001805MA

HOUSING, Headlamp

Note: (Used on 15.5HP)

$31.99

$

Usually ships in 2-12 days

0

0050

Murray 1001806MA

LENS, Light

Note: (Used on 15.5HP)

$28.99

$

Usually ships in 2-12 days

0

0060

Murray 1750659BMYP

BRACKET, Hinge Hood / Bumper

$48.99

$

Usually ships in 2-12 days

0

0070

Murray 1750970BIYP

GRILLE, 3 Hole

$210.99

$

Usually ships in 2-12 days

0

0090

Murray 1751114YP

COVER, Steering Shaft

$16.99

$

Usually ships in 2-12 days

0

0100

Murray 1750990YP

DASH

$188.99

$

Usually ships in 2-12 days

0

0110

Murray 1721891SM

KNOB, Push On, Red Plastic "P"

$9.99

$

In Stock, only 2 left!

0

0120

Murray 1738929YP

ROD, Parking Brake

$31.99

$

Usually ships in 2-12 days

0

0130

Murray 1722460SM

PIN, Quick, 1-3/16 Long
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0140

Murray 1960556SM

SCREW, Truss Head Torx, 1/4-20 x 3/4

$4.49

$

Usually ships in 2-12 days

0

0150

Murray 1739312YP

KNOB, Throttle

$11.99

$

Usually ships in 2-12 days

0

0160

Murray 1739329YP

SCREW, Washer Head, 5MM x 12MM Long

$4.49

$

Usually ships in 2-12 days

0

0170

Murray 797483

SCREW, Phillips Head, 8-32 x 3/8

$4.49

$

Usually ships in 2-12 days

0

0180

Murray 7091018YP

NUT, #8-32 Hex, GR 2B
(Superseded to 703460)

$3.99

$

In Stock, Qty 9

0

0190

Murray 1750974BMYP

SUPPORT, Fuel Tank

$36.99

$

Usually ships in 2-12 days

0

0200

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

0210

Murray 1750972YP

TANK, Fuel

$168.99

$

Usually ships in 2-12 days

0

0220

Murray 1931202SM

SCREW, Hex Washer Head Taptite 5/16-18 x 1-1/4
(Superseded to 703167)

$3.99

$

In Stock, Qty 5

0

0210-40

Murray 1751942YP

CAP, Fuel

$16.99

$

Usually ships in 2-12 days

0

0230

Murray 1751735YP

INSERT, Headlight

Note: (Used on 12.5HP)

$30.99

$

Usually ships in 2-12 days

0

0240

Murray 028X83MA

RETAINERS, S-Clips

$3.99

$

In Stock, only 2 left!

0

0250

Murray 26X270MA

SCREW, Thread Forming

$4.49

$

In Stock, Qty 13

0

0270

Murray 1741762MA

INSERT, Center Grille

$42.99

$

Usually ships in 2-12 days

0

0290

Murray 1741763MA

INSERT, Left Grille

$16.99

$

Usually ships in 2-12 days

0

0300

Murray 1741764MA

INSERT, Right Grille

$16.99

$

Usually ships in 2-12 days

0

0310

Murray 1741760MA

INSERT, Left Hood

$11.99

$

Usually ships in 2-12 days

0

0320

Murray 1741761MA

INSERT, Right Hood

$11.99

$

Usually ships in 2-12 days

0

0330

Murray 1751440YP

WIRING HARNESS, Headlight

Note: (Used on 15.5HP)

$23.99

$

Usually ships in 2-12 days

0

0340

Murray 1931211SM

NUT, Hex Flange Whiz Lock, 3/8-16
(Superseded to 703333)

Note: (Used on 15.5HP)

$4.99

$

In Stock, Qty 20+

0

0350

Murray 2172434SM

CABLE, Clip

Note: (Used on 15.5HP)

$4.99

$

Usually ships in 2-12 days

0

0360

Murray 1919381SM

WASHER, 5/16
(Superseded to 703298)

$4.49

$

In Stock, only 2 left!

0

0370

Murray 1664847SM

SCREW, Hex Washer Head Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0380

Murray 1752484YP

FOAM, Hood

$19.99

$

Usually ships in 2-12 days

0

0390

Murray 1752551YP

STRIP, Trim, 10"

$12.99

$

Usually ships in 2-12 days

0
