EMT 155420 H (2690986) - Murray 42" Side-Discharge Lawn Tractor, 15.5hp (2011) Frame Group Parts Diagram

42" Side-Discharge Lawn Tractor, 15.5hp

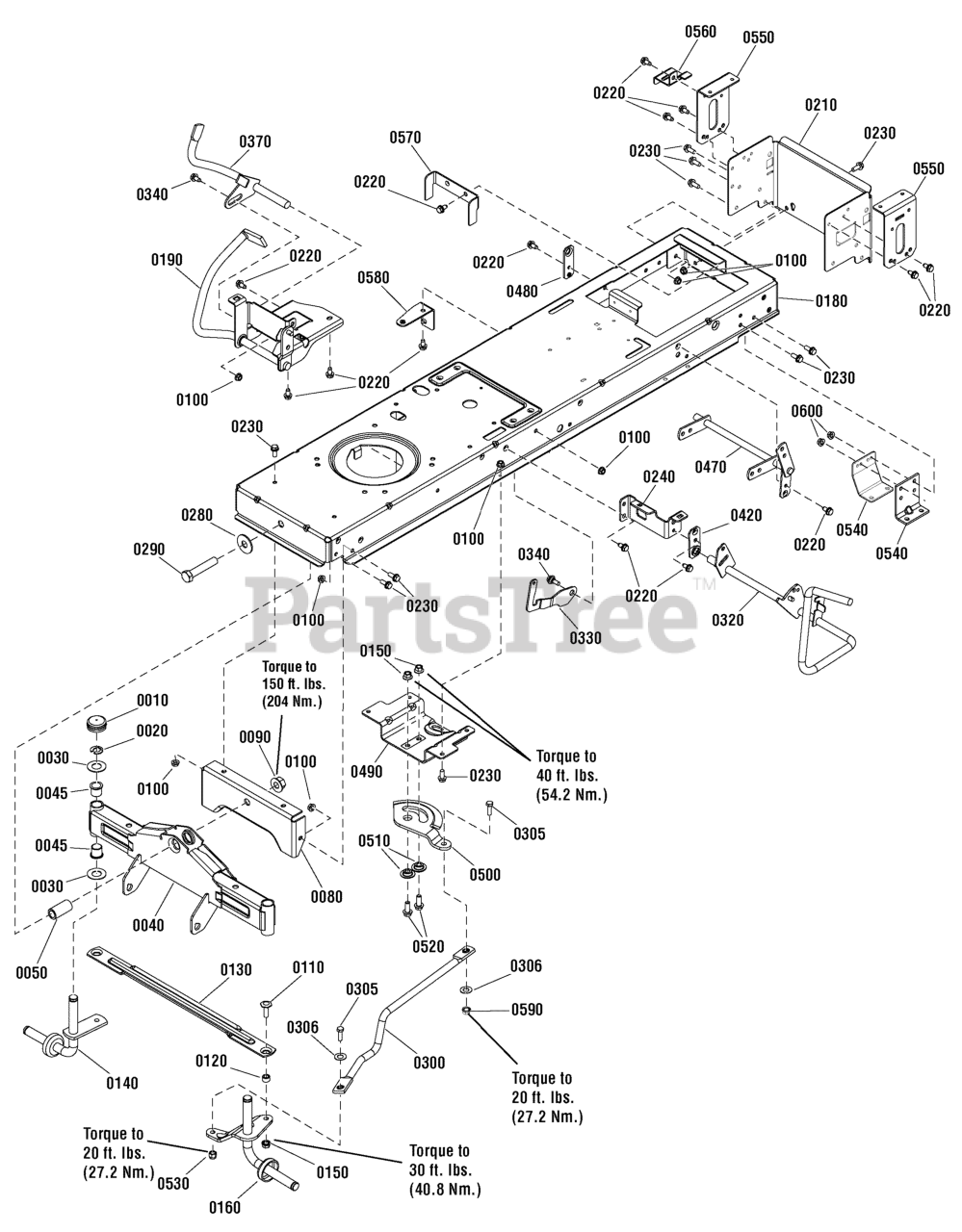

Frame Group Parts Diagram

  • Title

0010

Murray 094618MA

HUB CAP

$5.99

$

Usually ships in 2-12 days

0

0020

Murray 0011X3MA

E-RING

$5.49

$

In Stock, Qty 20+

0

0030

Murray 17X195MA

WASHER, Flat

$4.99

$

In Stock, Qty 5

0

0040

Murray 1751899YP

AXLE ASSEMBLY

$113.99

$

Usually ships in 2-12 days

0

0045

Murray 2176440SM

BUSHING, Nylon

$4.99

$

In Stock, Qty 20+

0

0050

Murray 1738193YP

SPACER, 5/8 ID x 1 OD x 2"

$6.49

$

In Stock, only 1 left!

0

0080

Murray 1727902SM

PLATE, Axle Support

$43.99

$

Usually ships in 2-12 days

0

0090

Murray 2860646SM

NUT, Hex Flange, Two Way Lock, 5/8-11

$10.99

$

In Stock, Qty 6

0

0100

Murray 1931277SM

NUT, Hex Flange, Whiz Lock, 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

0110

Murray 1960032SM

SCREW, Hex Head, 3/8-16 x 1 1/4

$5.49

$

In Stock, only 2 left!

0

0120

Murray 1611705SM

SPACER, 3/8 ID x 5/8 OD x 5/16"

$4.49

$

In Stock, Qty 20+

0

0130

Murray 1751964YP

TIE ROD
(Superseded to 1751964BMYP)

$32.99

$

In Stock, Qty 5

0

0140

Murray 1727872ASM

WHEEL SPINDLE ASSEMBLY, RH

$98.99

$

In Stock, Qty 20+

0

0150

Murray 1930645SM

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0160

Murray 1751922YP

ARM, Steering, LH

$109.99

$

Usually ships in 2-12 days

0

0180

Murray 1750275YP

FRAME

$222.99

$

Usually ships in 2-12 days

0

0190

Murray 1750606YP

PEDAL, Forward

$54.99

$

Usually ships in 2-12 days

0

0210

Murray 1750989YP

SUPPORT, Frame, Rear

$35.99

$

Usually ships in 2-12 days

0

0220

Murray 1930601SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 5/8
(Superseded to 703949)

Note: (Qty 12 used on 15.5HP)

$3.99

$

In Stock, Qty 5

0

0230

Murray 1930591SM

CAPSCREW, Hex Flange, Whiz Lock, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 14

0

0240

Murray 1750795YP

SUPPORT, Foot Rest, LH

$20.99

$

Usually ships in 2-12 days

0

0280

Murray 1960035SM

WASHER, 5/8

$4.49

$

In Stock, only 1 left!

0

0290

Murray 2860744SM

CAPSCREW, Hex Head, 5/8-11 x 3 1/4

$8.49

$

Usually ships in 2-12 days

0

0300

Murray 1738051YP

DRAG LINK ASSEMBLY

$60.99

$

In Stock, Qty 12

0

0305

Murray 1921977SM

CAPSCREW, Hex Head, 5/16-18 x 1 1/4
(Superseded to 703570)

$4.99

$

In Stock, Qty 10

0

0306

Murray 1924874SM

WASHER, 5/16
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

0320

Murray 1750608YP

BRAKE PEDAL

$62.99

$

Usually ships in 2-12 days

0

0330

Murray 1735595YP

LATCH, Brake Lock

$6.99

$

Usually ships in 2-12 days

0

0340

Murray 1752802YP

BOLT, Shoulder, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

0370

Murray 1751551YP

PEDAL ASSEMBLY, Reverse

$23.99

$

Usually ships in 2-12 days

0

0420

Murray 1727911ASM

PLATE, Bearing

$12.99

$

Usually ships in 2-12 days

0

0470

Murray 1750767YP

LIFT SHAFT ASSEMBLY

$39.99

$

Usually ships in 2-12 days

0

0480

Murray 1750798YP

PLATE, Bearing

$6.99

$

Usually ships in 2-12 days

0

0490

Murray 1727940SM

BRACKET, Sector Support

$

$

Not available

0500

Murray 1751110YP

GEAR, Steering

$34.99

$

In Stock, Qty 20+

0

0510

Murray 1728122SM

SPACER, Sector Gear

$5.49

$

In Stock, Qty 10

0

0520

Murray 1934654SM

CAPSCREW, Hex Flange, Whiz Lock, 3/8-16 x 1
(Superseded to 704038)

$5.99

$

In Stock, only 2 left!

0

0530

Murray 1930645SM

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

0540

Murray 1739792YP

SUPPORT, Transmission, General Transmission

Note: (Used on 12.5HP)

$19.99

$

Usually ships in 2-12 days

0

0540

Murray 1727903SM

SUPPORT, Transmission, Hydro Gear

Note: (Used on 15.5HP)

$10.99

$

In Stock, Qty 12

0

0550

Murray 1752218YP

SUPPORT, Seat Deck

$21.99

$

Usually ships in 2-12 days

0

0560

Murray 1751160YP

SUPPORT, MPTO Switch

$18.99

$

Usually ships in 2-12 days

0

0570

Murray 1750169YP

GUIDE, Belt

Note: (Used on 12.5HP)

$16.99

$

Usually ships in 2-12 days

0

0580

Murray 1750784YP

BRACKET, Cable

$8.49

$

Usually ships in 2-12 days

0

0590

Murray 1935048SM

NUT, Hex Flange, Two Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

0600

Murray 015X88MA

NUT, Centerlock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0
