EMT 125380 (2690936) - Murray 38" Side-Discharge Lawn Tractor, 12.5hp (2011) Transmission Group - CVT Parts Diagram

38" Side-Discharge Lawn Tractor, 12.5hp

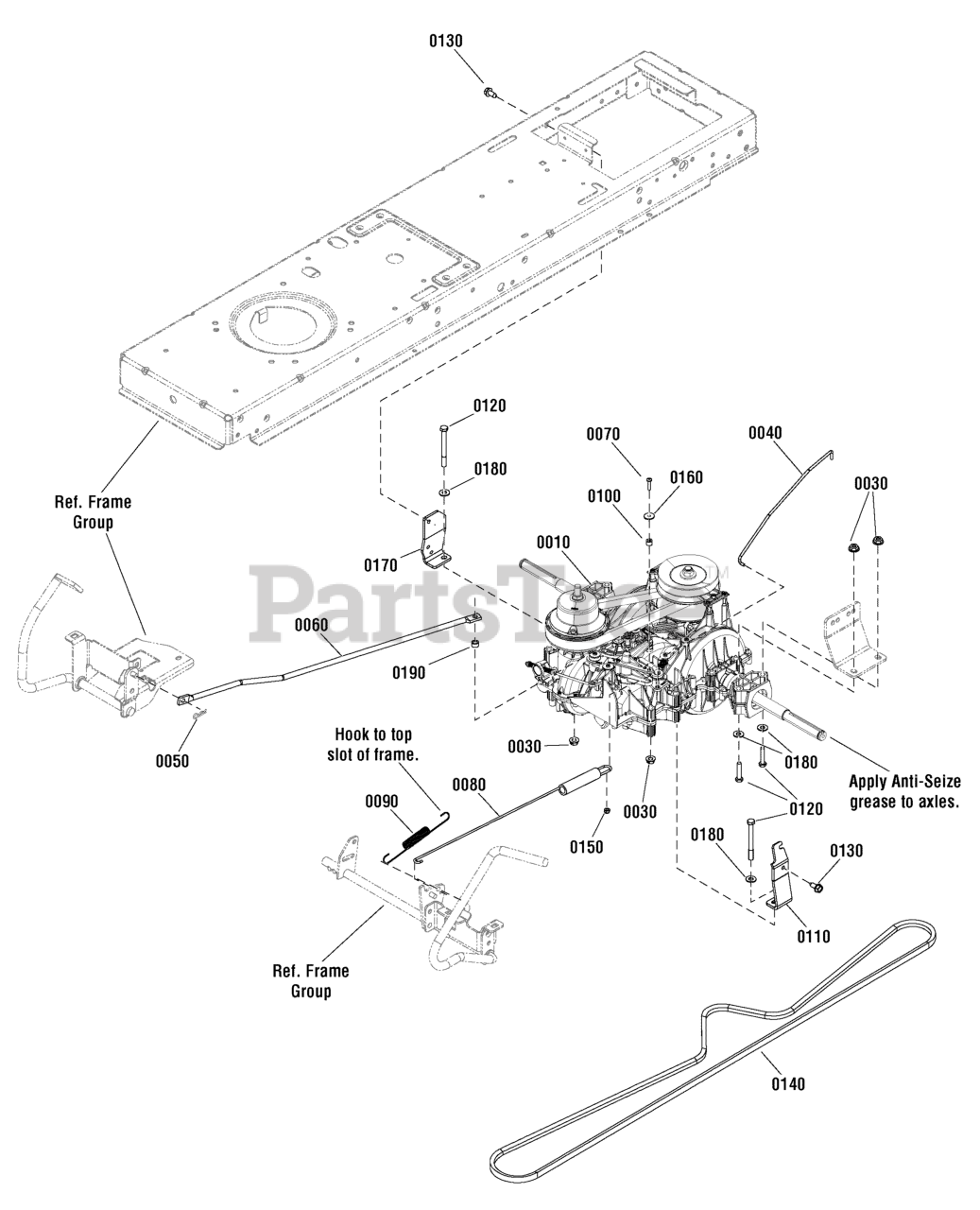

Transmission Group - CVT Parts Diagram

  • Title
0010

Murray 1750227

TRANSMISSION, GENERAL - CVT
(Superseded to 1750227YP)

$1139.99

$

Usually ships in 2-12 days

0

0030

Murray 720145

NUT, Hex Flange, Center Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 14

0

0040

Murray 1750276

ROD, Transmission Bypass
(Superseded to 1750276YP)

$19.99

$

Usually ships in 2-12 days

0

0050

Murray 1722460

PIN, Quick
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0060

Murray 1750601

ROD, Speed Control
(Superseded to 1750601YP)

$23.99

$

Usually ships in 2-12 days

0

0070

Murray 1960683

SCREW, Pan Head Torx #10-24 x 7/8
(Superseded to 704036)

$3.49

$

Usually ships in 2-12 days

0

0080

Murray 1750168

SPRING, Extension
(Superseded to 1750168YP)

$9.99

$

Usually ships in 2-12 days

0

0090

Murray 1721995

SPRING, Extension
(Superseded to 1721995SM)

$8.49

$

Usually ships in 2-12 days

0

0100

Murray 1750171

SPACER, .20 ID x .44 OD x 5/16"
(Superseded to 1750171YP)

$3.99

$

Usually ships in 2-12 days

0

0110

Murray 1739791BM

STRAP, Torque, LH
(Superseded to 1739791BMYP)

$25.99

$

Usually ships in 2-12 days

0

0120

Murray 1960590

CAPSCREW, Hex Head, 5/16-18 x 3, G5
(Superseded to 703870)

$4.49

$

Usually ships in 2-12 days

0

0130

Murray 1664847

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0140

Murray 7024614

BELT, 38" DECK
(Superseded to 7024614YP)

$65.99

$

In Stock, only 1 left!

0

0150

Murray 1933896

NUT, Hex Lock, Nylon Insert, 10-24
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0160

Murray 1960096

WASHER, 3/16
(Superseded to 1960096SM)

$3.99

$

Usually ships in 2-12 days

0

0170

Murray 1739790BM

STRAP, Torque, RH
(Superseded to 1739790BMYP)

$25.99

$

Usually ships in 2-12 days

0

0180

Murray 1919326

WASHER, 5/16
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0190

Murray 1751769

SPACER, 5/16 ID x 1/2 OD x 5/16"
(Superseded to 1751769YP)

$4.49

$

Usually ships in 2-12 days

0
