EMS4500 A (GE400) - Honda Generator, Made in Japan (SN: GE400-1000001 - GE400-9999999) CONTROL Parts Diagram

Generator, Made in Japan

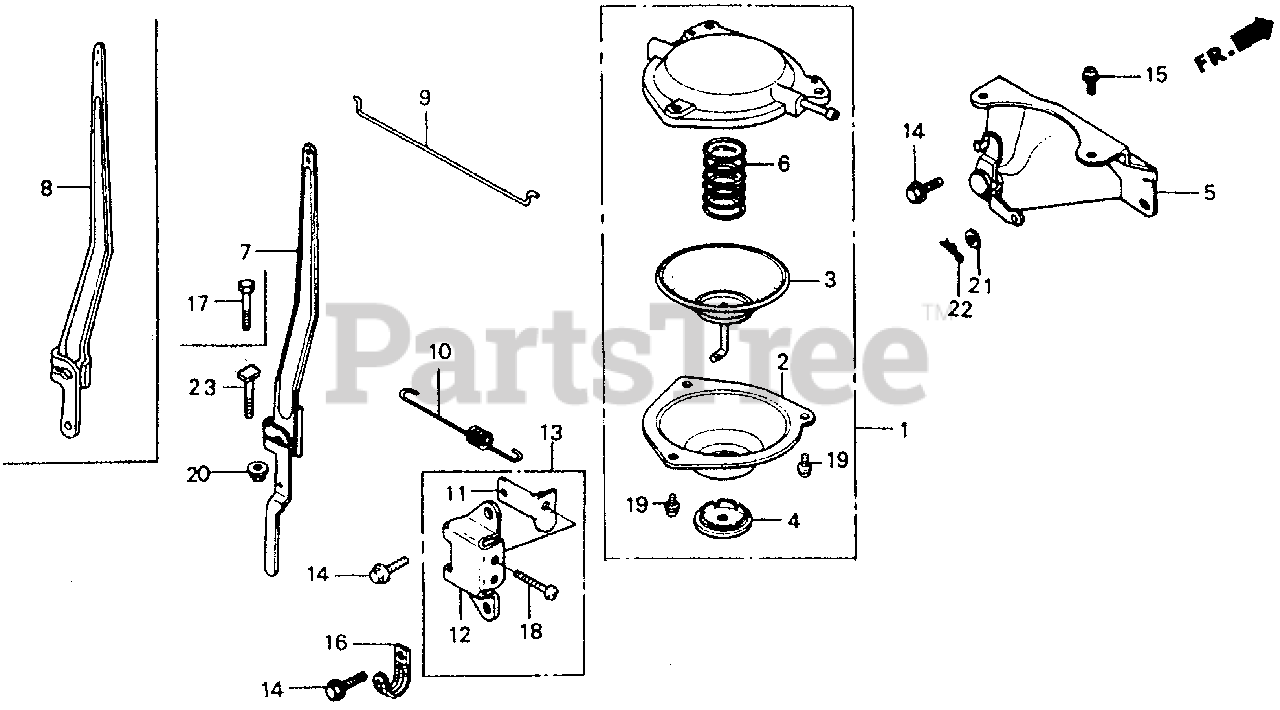

CONTROL Parts Diagram

  • Title

1

Honda 16020-898-003

DIAPHRAGM ASSY. (NOT AVAILABLE)

$

$

Not available

2

Honda 16022-898-003

COVER, DIAPHRAGM

$19.99

$

Usually ships in 3-6 days

0

3

Honda 16025-898-003

DIAPHRAGM

$38.99

$

Usually ships in 3-6 days

0

4

Honda 16027-893-003

BUSH, DIAPHRAGM COVER

$5.99

$

Usually ships in 3-6 days

0

5

Honda 16030-899-010

STAY, DIAPHRAGM (NOT AVAILABLE)

$

$

Not available

6

Honda 16051-898-003

SPRING, COIL

$5.99

$

Usually ships in 3-6 days

0

7

Honda 16551-ZA1-000

ARM, GOVERNOR

$19.99

$

Usually ships in 3-6 days

0

9

Honda 16555-889-010

ROD, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

10

Honda 16561-ZA1-610

SPRING, GOVERNOR

$

$

Not available

11

Honda 16571-898-000

PLATE, CONTROL

$4.99

$

Usually ships in 3-6 days

0

12

Honda 16573-898-000

BASE, CONTROL

$

$

Not available

13

Honda 16580-898-000

LEVER, CONTROL

$

$

Not available

14

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

15

Honda 90092-657-000

SCREW-WASHER (5X8)

$2.99

$

In Stock, only 4 left!

0

16

Honda 90105-727-000

CLIP (2X50)

$3.99

$

Usually ships in 3-6 days

0

17

Honda 92000-06025-0H

BOLT, HEX. (6X25)

Note: Use up to Engine SN 1082806.

$

$

Currently unavailable

18

Honda 93500-06028-0A

SCREW, PAN (6X28)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 93892-04008-08

SCREW-WASHER (4X8)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

21

Honda 94101-04000

WASHER, PLAIN (4MM)

$1.49

$

In Stock, only 1 left!

0

22

Honda 94251-04000

PIN, LOCK (4MM)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 90015-ZE3-790

BOLT, GOVERNOR ARM

Note: Use from Engine SN 1082807.

$2.99

$

Usually ships in 3-6 days

0
