21" Walk-Behind Mower, 6hp

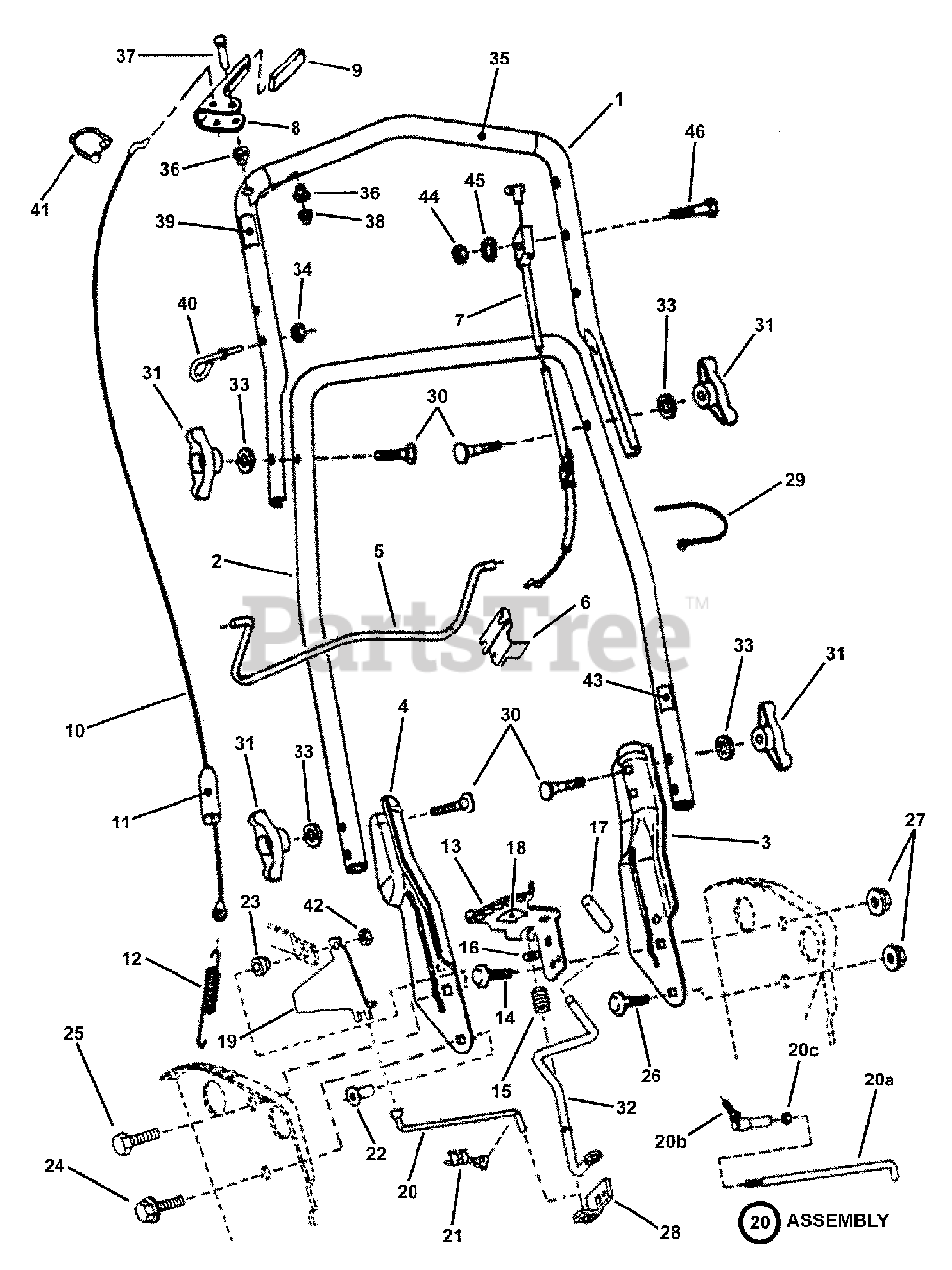

HANDLES & CONTROLS (2002 & EARLIER) Parts Diagram

  • Title

1

Snapper 7074254

HANDLE, Upper
(Superseded to 7074254YP)

Note: Was 72931 (used on All)

$164.99

$

In Stock, only 1 left!

0

2

Snapper 7036350

HANDLE, Middle- 1990

Note: used on All

$

$

Not available

3

Snapper 7046502

HANDLE, Lower Left Hand
(Superseded to 7046502YP)

Note: used on All

$56.99

$

In Stock, only 1 left!

0

4

Snapper 7035342

HANDLE, Lower Right Hand
(Superseded to 7035342YP)

Note: used on All

$43.99

$

In Stock, only 1 left!

0

5

Snapper 7047011

BAIL, Blade Control
(Superseded to 7047011YP)

Note: used on All

$

$

Not available

6

Snapper 7034872

CLIP, Blade Control
(Superseded to 7034872YP)

Note: used on All

$5.99

$

In Stock, Qty 5

0

7

Snapper 7072933

CABLE, Blade Control (49-1/4" long)
(Superseded to 7072933YP)

Note: used on All

$24.99

$

In Stock, only 2 left!

0

8

Snapper 7032826

HANDLE, Wheel Drive
(Superseded to 7074473BMYP)

Note: used on Self-Propelled

$16.99

$

In Stock, Qty 20+

0

9

Snapper 7014307

GRIP, Wheel Drive Handle
(Superseded to 7014307YP)

Note: used on Self-Propelled

$4.49

$

In Stock, Qty 20+

0

--

Snapper 7029775

GRIP,Wheel Drive Handle (Euro)
(Superseded to 7029775YP)

Note: used on Self-Propelled (Euro)

$20.99

$

In Stock, only 2 left!

0

10

Snapper 7072932

CABLE, Clutch Pull (Z-Bend, 38-5/8" long)
(Superseded to 7072932YP)

Note: used on Self-Propelled

$10.99

$

In Stock, only 1 left!

0

11

Snapper 7012121

COVER, Vinyl
(Superseded to 7012121YP)

Note: used on Self-Propelled

$

$

Not available

12

Snapper 7012122

SPRING, Clutch
(Superseded to 7012122YP)

Note: used on Self-Propelled

$9.49

$

In Stock, Qty 20+

0

13

Snapper 7041871

SECTOR, Speed

Note: used on Self-Propelled

$

$

Not available

14

Snapper 7091714

BOLT, 5/16-18 x 1" Square Neck Carriage GR 5
(Superseded to 703483)

Note: Was 91238 (used on All)

$3.99

$

In Stock, only 1 left!

0

15

Snapper 7012093

SPRING, Speed Control
(Superseded to 7012093YP)

Note: used on Self-Propelled

$4.49

$

In Stock, only 4 left!

0

16

Snapper 7090188

WASHER, 3/8" Flat
(Superseded to 703350)

Note: used on Self-Propelled

$4.49

$

In Stock, only 3 left!

0

17

Snapper 7023801

GRIP, Speed Control Handle
(Superseded to 7023801YP)

Note: Was 29383, used on Self-Propelled

$4.49

$

In Stock, Qty 6

0

18

Snapper 7024087

DECAL, Speed Select

Note: used on Self-Propelled

$

$

Not available

--

Snapper 7029783

DECAL, Speed Select (Euro)
(Superseded to 7029783YP)

Note: used on Self-Propelled (Euro)

$6.49

$

Usually ships in 2-12 days

0

19

Snapper 7032408

GUIDE, Lower V-Belt
(Superseded to 7032408YP)

Note: used on Self-Propelled

$26.99

$

Usually ships in 2-12 days

0

20

Snapper 7023790

ROD, Transfer
(Superseded to 7023790YP)

Note: used on Self-Propelled

$9.49

$

In Stock, Qty 11

0

--

Snapper 7051698

ASSY., Transfer Rod (Incl. indented items below)
(Superseded to 7051698YP)

Note: used on Self-Propelled (Euro)

$26.99

$

Usually ships in 2-12 days

0

20a

Snapper 7015752

LINK, Transfer
(Superseded to 7015752YP)

Note: used on Self-Propelled (Euro)

$22.99

$

Usually ships in 2-12 days

0

20b

Snapper 7015753

BALL JOINT, 1/4-28
(Superseded to 7015753YP)

Note: used on Self-Propelled (Euro)

$10.99

$

In Stock, only 1 left!

0

20c

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: used on Self-Propelled (Euro)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7010937

CLIP, Transfer Rod 1/4"
(Superseded to 7010937YP)

Note: used on Self-Propelled

$7.49

$

In Stock, Qty 5

0

22

Snapper 7090895

TEE-NUT, 5/16-18
(Superseded to 7090895YP)

Note: used on Self-Propelled

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7012114

BUSHING, Differential
(Superseded to 7012114SM)

Note: used on Self-Propelled

$4.99

$

In Stock, Qty 9

0

24

Snapper 7090595

BOLT, 5/16-18 x 3/4" Hex Flange Lock GR5
(Superseded to 703354)

Note: used on All

$5.49

$

In Stock, Qty 14

0

25

Snapper 7090238

SCREW, 5/16-24 x 1" Hex Head Cap GR5
(Superseded to 703301)

Note: used on All

$3.99

$

In Stock, only 2 left!

0

26

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage GR5
(Superseded to 703447)

Note: Was 91026 (used on All)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock GR5
(Superseded to 703409)

Note: Was 91070 (used on All)

$5.49

$

In Stock, Qty 20+

0

28

Snapper 7046202

BRACKET, Speed Control Rod
(Superseded to 7046202YP)

Note: used on Self-Propelled

$19.99

$

Usually ships in 2-12 days

0

29

Snapper 7024641

WIRE TIE, 1.29" Long (Black)
(Superseded to 7024641YP)

Note: used on All

$5.99

$

In Stock, only 1 left!

0

30

Snapper 7091740

SCREW, 5/16-18 x 1-7/8" Curved Head GR2
(Superseded to 7091740SM)

Note: Was 91189 (used on All)

$3.49

$

In Stock, Qty 12

0

31

Snapper 7035744

T-KNOB, 5/16-18 (BLACK)
(Superseded to 7105085YP)

Note: used on All

$3.99

$

In Stock, Qty 20+

0

32

Snapper 7041870

LEVER, Speed Control

Note: used on Self-Propelled

$

$

Not available

33

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

Note: used on All

$4.49

$

In Stock, Qty 20+

0

34

Snapper 7076978

NUT, 1/4-28 Hex GR5 or B
(Superseded to 703232)

Note: used on All

$4.49

$

In Stock, Qty 18

0

35

Snapper 7075634

FOAM GRIP, .84 I.D. x 11" long
(Superseded to 7075634YP)

Note: Was 73115 (Used on All)

$8.99

$

Usually ships in 2-12 days

0

36

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

Note: used on All

$3.99

$

In Stock, Qty 20+

0

37

Snapper 7023792

PIN, Clutch Handle
(Superseded to 704031)

Note: used on Self-Propelled

$3.99

$

In Stock, Qty 20+

0

38

Snapper 7091020

PUSH-NUT, 1/4" (for handle pin)
(Superseded to 7091020YP)

Note: used on Self-Propelled

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7024211

DECAL, Blade Control (Right Hand Side)
(Superseded to 7024211YP)

Note: used on all (except Euro)

$14.99

$

In Stock, Qty 5

0

--

Snapper 7029782

DECAL, Blade Control (Right Hand Side)
(Superseded to 7029782MA)

Note: used on European

$12.99

$

Usually ships in 2-12 days

0

40

Snapper 7046465

GUIDE, Rope
(Superseded to 7046465SM)

Note: used on All

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7026219

CLAMP, 7/8" Double Cable
(Superseded to 7026219YP)

Note: used on All

$4.49

$

In Stock, Qty 10

0

42

Snapper 7091606

NUT, 5/16-24 Hex Center Lock GR5
(Superseded to 703896)

Note: Was 91074 (used on All)

$3.49

$

In Stock, Qty 20+

0

43

Snapper 7041942

DECAL, Shift Warning
(Superseded to 7041942YP)

Note: used on Self-Propelled

$5.49

$

Usually ships in 2-12 days

0

44

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Was 91100 (used on All)

$3.49

$

In Stock, Qty 20+

0

45

Snapper 7091022

WASHER, 1/4" Internal Tooth Lock

Note: used on All

$

$

Not available

46

Snapper 7091813

SCREW, 1/4-20 x 1-3/4" Hex Head Cap GR5
(Superseded to 7091003YP)

Note: Was 91222 (used on All)

$3.49

$

Usually ships in 2-12 days

0
