EMPV 21675 (7800866) - Murray 21" Walk-Behind Mower (2012) Mower Deck Group (7502766) Parts Diagram

21" Walk-Behind Mower

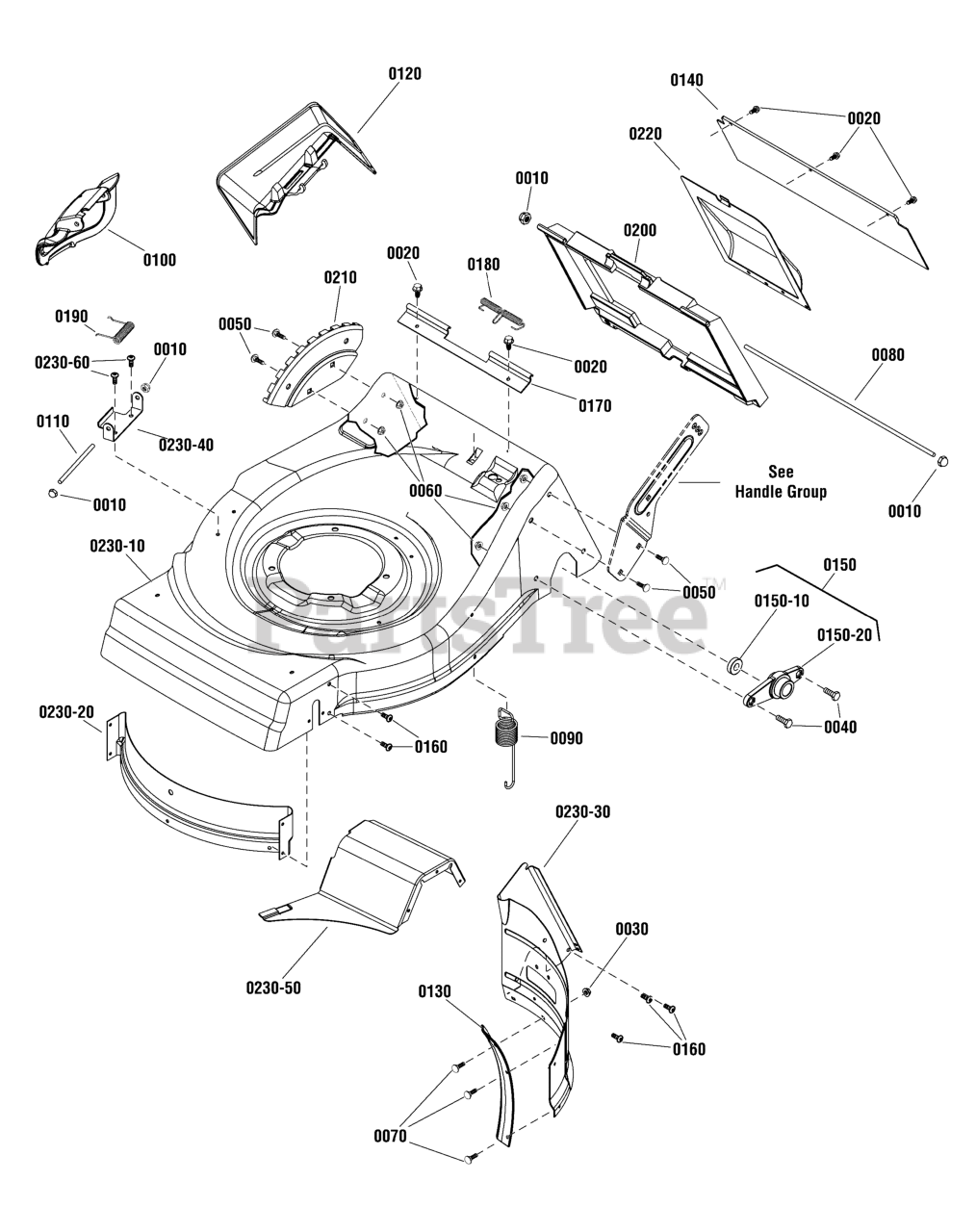

Mower Deck Group (7502766) Parts Diagram

  • Title

0010

Murray 704005

NUT, 1/4", Push, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0020

Murray 7091286YP

SCREW, Self Tap, SEMS, 10-24 x 1/2

$4.99

$

In Stock, Qty 12

0

0030

Murray MT15X146MA

NUT, #10-24, Hex Nylock, GRB, Zinc/Clear
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

0040

Murray 704287

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ

$3.99

$

In Stock, Qty 9

0

0050

Murray 703185

BOLT, Carriage, 5/16-18 X 3/4

$3.49

$

In Stock, Qty 12

0

0060

Murray 703409

NUT, Serrated Lock Flange, 5/16-18

$5.49

$

In Stock, Qty 20+

0

0070

Murray 7091711YP

BOLT, #10-24 x 5/8 Flat Head Square Neck, YZ
(Superseded to 7091283YP)

$4.49

$

In Stock, only 1 left!

0

0080

Murray 7101314YP

ROD, Rear Door Pivot, 21" Rear Discharge

$6.99

$

In Stock, only 1 left!

0

0090

Murray 7101434YP

SPRING, Extension, Height-Of-Cut Assist

$6.99

$

Usually ships in 2-12 days

0

0100

Murray 7101437YP

COVER, 21" Mulching

$20.99

$

Usually ships in 2-12 days

0

0110

Murray 7101471YP

ROD, Mulch Cover Pivot

$4.49

$

Usually ships in 2-12 days

0

0120

Murray 7101490YP

CHUTE, 21" Side Discharge

$43.99

$

In Stock, only 1 left!

0

0130

Murray 7101502YP

BAFFLE, Extension, 21" RD WBM

$8.49

$

Usually ships in 2-12 days

0

0140

Murray 7101553YP

DEFLECTOR, Rear, 21" WBM, RD

$

$

Not available

0150

Murray 7501070YP

ASSEMBLY, Bearing Holder, 21", RD

$26.99

$

In Stock, only 2 left!

0

0150-10

Murray 7078243YP

BEARING, Ball

$10.99

$

In Stock, Qty 13

0

0150-20

Murray 7101418YP

BEARING HOLDER, 21 WBM, RD

$15.99

$

In Stock, only 1 left!

0

0160

Murray 7900067YP

SCREW, 1/4-20 x .550" Pan Head Self-Tap, Torx

$4.49

$

In Stock, Qty 20+

0

0170

Murray 071410MA

SPACER, 21" Rear Door, Plastic

$7.99

$

Usually ships in 2-12 days

0

0180

Murray 166X33MA

SPRING, 3.65" Long, 38 Coils, Torsion

$6.99

$

In Stock, only 1 left!

0

0190

Murray 166X38MA

PLUG, Panel, .25 x .61 L, Black

$4.99

$

In Stock, only 2 left!

0

0200

Murray 071409MA

DOOR, 21" Rear, Black

$66.99

$

Usually ships in 2-12 days

0

0210

Murray 7300587BJYP

INDEX PLATE, Height-of-Cut, 21 WBM, RD, Pewter

$12.99

$

Usually ships in 2-12 days

0

0220

Murray 7300723BJYP

TRANSMISSION COVER, Rear 21"

$34.99

$

Usually ships in 2-12 days

0

0230-10

Murray 7301050BJYP

DECK, 21 Rear Discharge, Non-Electric Start, Pewter

$

$

Currently unavailable

0230-20

Murray 7300585BJYP

BAFFLE, Front 21 WBM, RD, Pewter
(Superseded to 7300585ZMA)

$82.99

$

Usually ships in 2-12 days

0

0230-30

Murray 7300589BJYP

BAFFLE, Left Rear, 21 RD, WBM, Pewter

$84.99

$

Usually ships in 2-12 days

0

0230-40

Murray 7300590BJYP

BRACKET, Chute Deflector, Pewter

$

$

Currently unavailable

0230-50

Murray 7300591BJYP

BAFFLE, Right Rear, 21" WBM, RD, Pewter

$42.99

$

Usually ships in 2-12 days

0

0230-60

Murray 7900067YP

SCREW, 1/4-20 x .550" Pan Head Self-Tap, Torx

$4.49

$

In Stock, Qty 20+

0
