EMP 22675 HW (7800865) - Murray 22" High Wheel Walk-Behind Mower, 6.75hp (2011) Engine & Blade Group Parts Diagram
22" High Wheel Walk-Behind Mower, 6.75hp

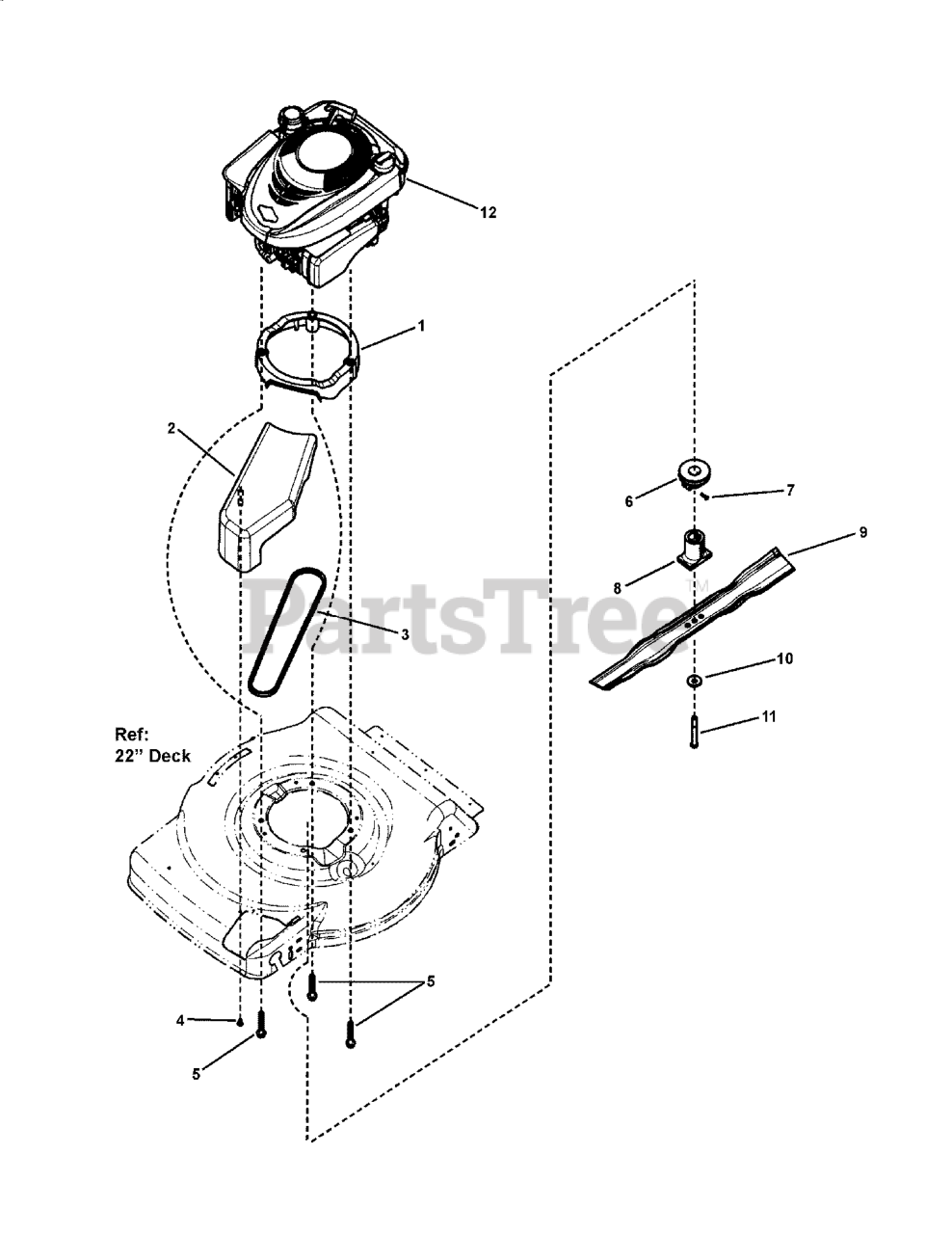

Engine & Blade Group Parts Diagram
Murray 7101449YP
ASSEMBLY, Engine Spacer, 22 WBM, Propelled
$64.99
$
Usually ships in 2-12 days
Murray 1101596MA
COVER, Belt, Plastic
$37.99
$
Usually ships in 2-12 days
$22.99
$
In Stock, only 2 left!
$
$
Currently unavailable
Murray 025X11MA
BOLT, 3/8-16 x 2-1/2 Hex Washer Face
$6.99
$
Usually ships in 2-12 days
Murray 7100763MA
PULLEY, Engine, 22 Deck, Single Speed
$12.99
$
Usually ships in 2-12 days
Murray 26X208MA
SCREW, #8-11 x 5/8 Poly
$3.99
$
Usually ships in 2-12 days
Murray 7100740YP
HUB, Blade, 22 Deck
$15.99
$
Usually ships in 2-12 days
Murray 7100851AYP
BLADE, 22 Walk Mower
$19.99
$
In Stock, only 1 left!
Murray 1101989MA
WASHER, Bellville, .38 ID x 1.183 OD
$5.49
$
Usually ships in 2-12 days
Murray 01X144MA
BOLT, 3/8-24 x 3-1/4 Hex Head, GR 8
$5.49
$
In Stock, only 3 left!
Murray 126T02-7268-H1
* ENGINE, 675 Series Quantum, Euro
$
$
Not available
