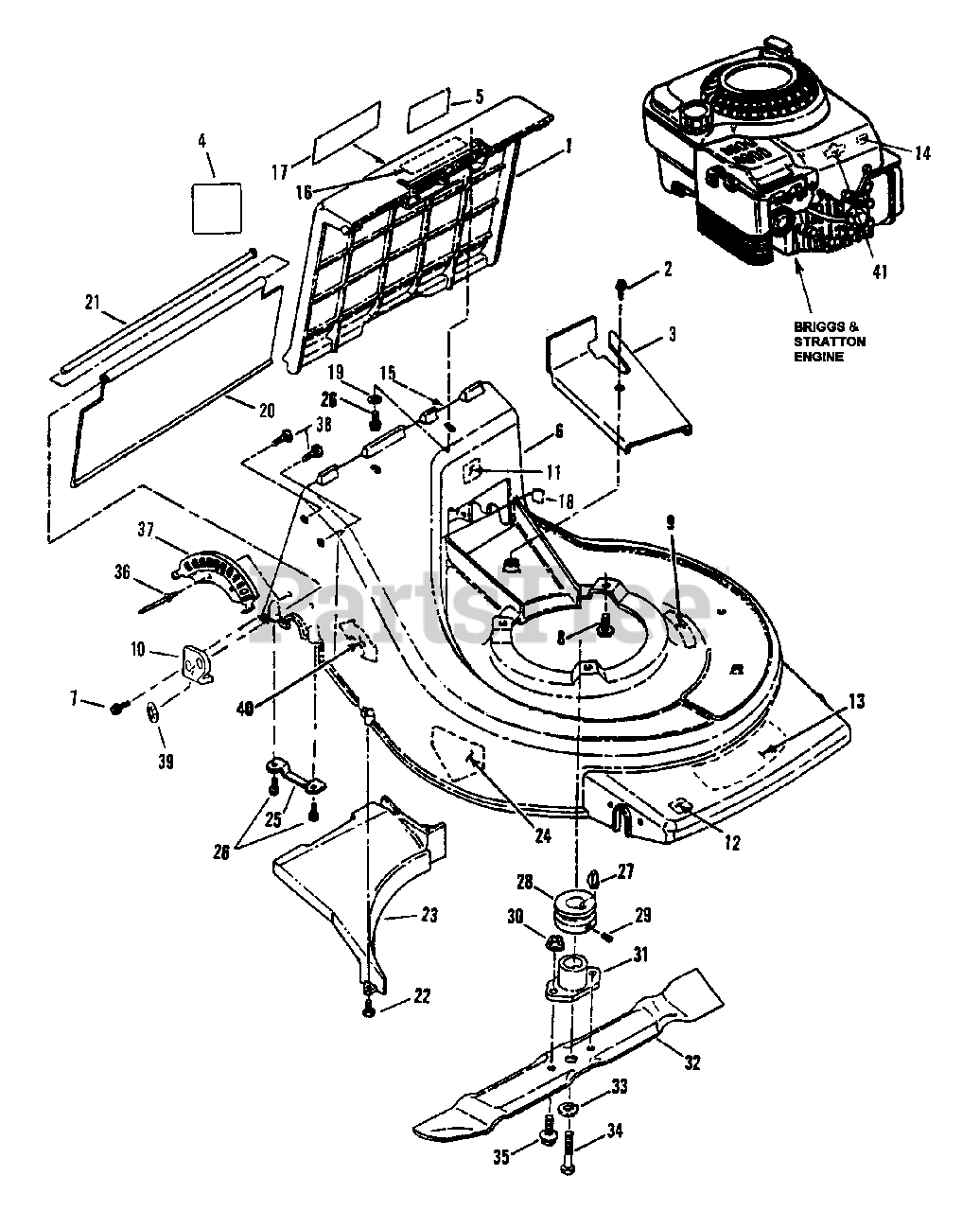

EMLP 21601 (84294) - Snapper 21" Walk-Behind Mower, 6hp Cutting Deck, Blade Parts Diagram

21" Walk-Behind Mower, 6hp

Cutting Deck, Blade Parts Diagram

  • Title

1

Snapper 7052881

ASSEMBLY, Discharge Door
(Superseded to 7052881YP)

$75.99

$

In Stock, only 1 left!

0

2

Snapper 7091201

SCREW, #10-24 x 1-1/2" Slotted, Hex Washer Head, Self-Tapping
(Superseded to 7091201YP)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper 7072030

COVER, Belt/Tie Bar
(Superseded to 7072030YP)

$47.99

$

Usually ships in 2-12 days

0

4

Snapper 7072820

DECAL, Year of Manufacture

Note: (European)

$

$

Currently unavailable

5

Snapper 7046357

DECAL, WARNING
(Superseded to 7046357YP)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 7063167

DECK, 21" Cast Aluminum
(Superseded to 7061962YP)

Note: Was 61961

$1025.99

$

Usually ships in 2-12 days

0

7

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Head Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

8

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Head, Self-Tapping
(Superseded to 704000)

$4.99

$

Usually ships in 2-12 days

0

9

Snapper 7072921

DECAL, WARNING (Deck)
(Superseded to 7072921YP)

$9.49

$

Usually ships in 2-12 days

0

10

Snapper 7043835

BRACKET, RH Pivot Rod
(Superseded to 7043835YP)

$18.99

$

Usually ships in 2-12 days

0

Snapper 7043836

BRACKET, LH Pivot Rod
(Superseded to 7043836YP)

Note: (Not Shown)

$20.99

$

Usually ships in 2-12 days

0

11

Snapper 7023009

DECAL, Noise Control

Note: (European Models)

$

$

Currently unavailable

12

Snapper 7029776

DECAL, European Community
(Superseded to 7029776SM)

Note: (European Models)

$7.99

$

Usually ships in 2-12 days

0

13

Snapper 7046714

LOGO, SNAPPER Cast Aluminum Series
(Superseded to 7046714YP)

$10.99

$

In Stock, only 2 left!

0

14

Snapper 7029779

DECAL, Spark Plug
(Superseded to 7029779YP)

Note: (European Models)

$6.49

$

Usually ships in 2-12 days

0

15

Snapper 7029784

DECAL, Deck/Chute, International Warning
(Superseded to 7029784SM)

Note: (European Models)

$5.99

$

Usually ships in 2-12 days

0

16

Snapper 7046924

DECAL, WARNING Chute Deflector
(Superseded to 7046924YP)

Note: (For model EMLP21601)

$5.99

$

Usually ships in 2-12 days

0

Snapper 7029825

DECAL, WARNING
(Superseded to 7029825YP)

Note: (For model EMLP21601E)

$13.99

$

Usually ships in 2-12 days

0

17

Snapper 7028439

DECAL, Convertible Mower

$

$

Not available

18

Snapper 7029470

DECAL, Patent Numbers
(Superseded to 7029470YP)

$6.99

$

In Stock, only 1 left!

0

19

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Was 90055

$4.49

$

In Stock, Qty 20+

0

20

Snapper 7043870

SHIELD, Trailing
(Superseded to 7043870YP)

Note: Was 24753

$28.99

$

Usually ships in 2-12 days

0

21

Snapper 7043808

ROD, Trailing Shield Pivot
(Superseded to 7043808YP)

$56.99

$

Usually ships in 2-12 days

0

22

Snapper 7091075

SCREW, #10-24 x 5/8" Slotted, Hex Washer Head, Self-Tapping
(Superseded to 7091075SM)

$4.49

$

In Stock, Qty 5

0

23

Snapper 7024595

BAFFLE, Discharge
(Superseded to 7024595YP)

$26.99

$

Usually ships in 2-12 days

0

24

Snapper 7013010

DECAL - DANGER
(Superseded to 7013010SM)

$9.49

$

In Stock, Qty 11

0

Snapper 7022841

DECAL - DANGER
(Superseded to 7022841SM)

Note: (European Models)

$72.99

$

In Stock, only 1 left!

0

25

Snapper 7033732

SUPPORT, Rear Axle
(Superseded to 7033732YP)

$9.99

$

Usually ships in 2-12 days

0

26

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0

27

Snapper 7091214

KEY, HP-506 Hi-Pro
(Superseded to 7091214YP)

$4.99

$

In Stock, only 1 left!

0

28

Snapper 7015780

PULLEY, Traction Drive
(Superseded to 7015780YP)

Note: (For models EMLP21601 & EMLP21601E)

$30.99

$

Usually ships in 2-12 days

0

Snapper 7021764

PULLEY, Traction Drive
(Superseded to 7021764YP)

Note: (For model EMPL21501KWV)

$54.99

$

In Stock, only 1 left!

0

29

Snapper 7090201

SCREW, 5/16-18 x 5/16" Hex. Socket Set
(Superseded to 7090201SM)

$

$

Not available

30

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.49

$

In Stock, Qty 20+

0

31

Snapper 7026631

HUB, 25 mm Blade Drive

Note: (For models EMLP21601 & EMLP21601E)

$

$

Not available

Snapper 7026630

HUB, 25 mm Blade Drive
(Superseded to 7026630YP)

Note: (For model EMPL21501KWV)

$13.99

$

Usually ships in 2-12 days

0

32

Snapper 7026428

BLADE, 21" Mulching/Bagging
(Superseded to 7026428BZYP)

$29.99

$

In Stock, only 1 left!

0

33

Snapper 7079268

WASHER, 3/8 Split Lock (Heavy)
(Superseded to 7079268YP)

$3.49

$

In Stock, Qty 7

0

34

Snapper 7090483

SCREW, 3/8-24 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 703866)

$4.49

$

In Stock, only 1 left!

0

35

Snapper 7091328

BOLT, 3/8-16 x 1-1/4" Hex Flange Lock
(Superseded to 703871)

Note: Was 90143

$4.99

$

Usually ships in 2-12 days

0

36

Snapper 7091191

RIVET, 3/16 x 1/2" Steel
(Superseded to 7091191YP)

$3.49

$

Usually ships in 2-12 days

0

37

Snapper 7033752

PLATE, Height Adjustment
(Superseded to 7033752YP)

$23.99

$

Usually ships in 2-12 days

0

38

Snapper 7091714

BOLT, 5/16-18 x 1" Carriage, Gr. 5
(Superseded to 703483)

Note: Was 91238

$3.99

$

In Stock, only 1 left!

0

39

Snapper 7091892

PUSH-NUT, 1/4"
(Superseded to 7091892YP)

$3.99

$

Usually ships in 2-12 days

0

40

Snapper 7028454

DECAL, Height Adjustment

Note: (European Models)

$

$

Currently unavailable

41

Snapper 7029619

LOGO, Briggs & Stratton

$

$

Currently unavailable

ENGINE, 6 HP Briggs & Stratton Diamond-Plus

Note: Model 12H802, Type 1979, Trim E1 (EMLP21601)

$

$

Not available

ENGINE, 6 HP Briggs & Stratton Diamond-Plus

Note: Model 12H807, Type 1980, Trim E1 (EMLP21601E)

$

$

Not available

ENGINE, 5 HP Kawasaki

Note: Model FC150E532, (EMLP21501KWV)

$

$

Not available
