  • Title

1

Snapper 7053067

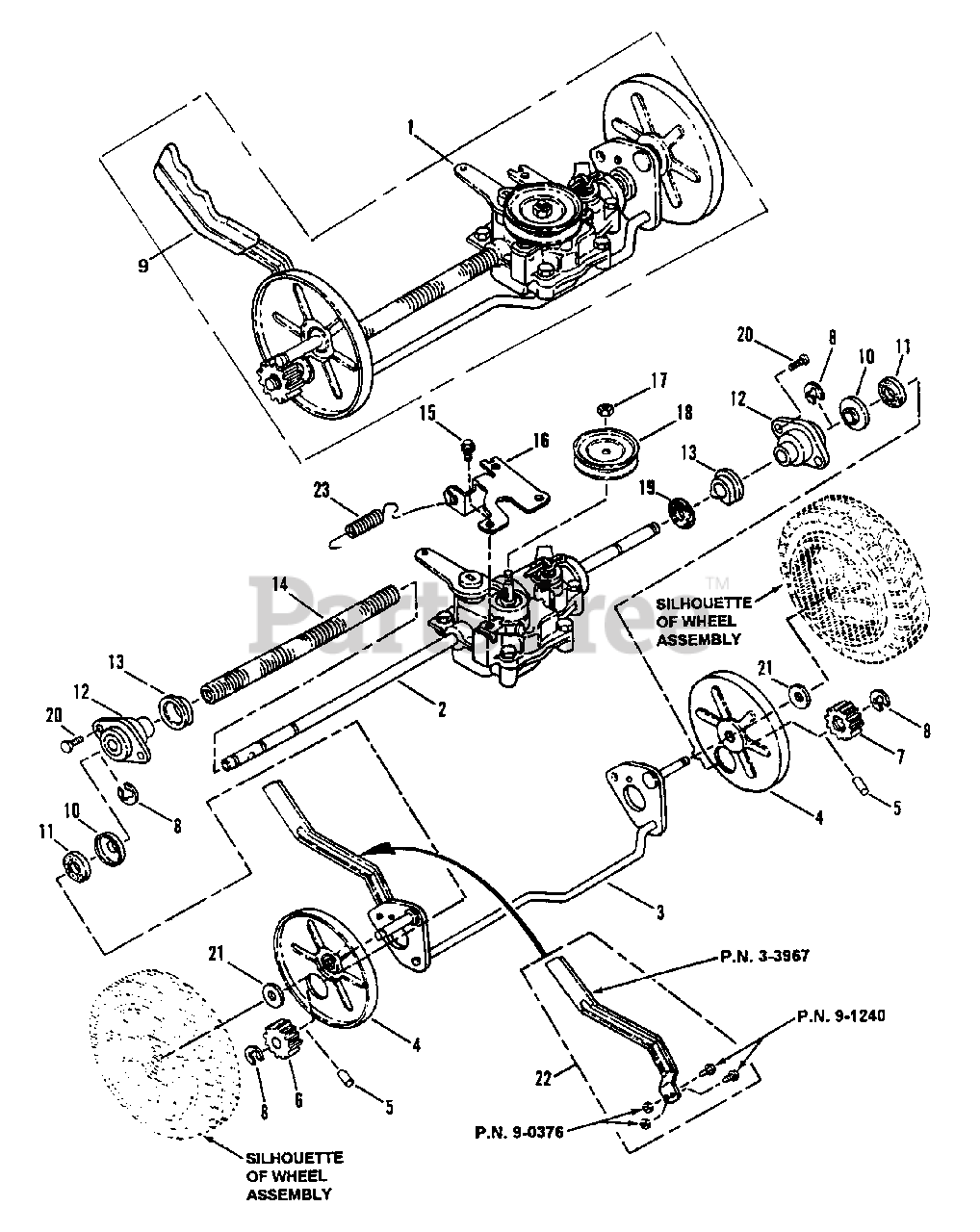

AXLE/TRANSMISSION ASSEMBLY
(Superseded to 7026231YP)

Note: (Includes items 2 thru 20)

$307.99

$

Usually ships in 2-12 days

0

2

Snapper 7026231

ASSEMBLY, Transmission
(Superseded to 7026231YP)

$307.99

$

Usually ships in 2-12 days

0

3

Snapper 7074207

ASSEMBLY, Rear Axle Weldment
(Superseded to 7074207YP)

Note: Was 41363

$94.99

$

Usually ships in 2-12 days

0

4

Snapper 7024573

SHIELD, Dust
(Superseded to 7024573YP)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 7024749

PIN, Pawl, 3/16 O.D.
(Superseded to 7024749YP)

$19.99

$

Usually ships in 2-12 days

0

6

Snapper 7024549

PINION, Right Hand Drive
(Superseded to 7024549YP)

$8.49

$

Usually ships in 2-12 days

0

7

Snapper 7024550

PINION, Left Hand Drive
(Superseded to 7024550YP)

$8.99

$

In Stock, only 1 left!

0

8

Snapper 7014341

RING, External Retaining
(Superseded to 703976)

$4.49

$

In Stock, Qty 10

0

9

Snapper 7026420

GRIP, Height Adjust Lever
(Superseded to 7105356YP)

$5.49

$

Usually ships in 2-12 days

0

10

Snapper 7026478

RETAINER, Pinion Seal
(Superseded to 7026478YP)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7026479

SEAL, Pinion (Felt)
(Superseded to 7026479YP)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7025066

ASSEMBLY, Bearing Carrier
(Superseded to 7025066YP)

$38.99

$

Usually ships in 2-12 days

0

13

Snapper 7024715

BUSHING, Rear Axle
(Superseded to 7024715YP)

$3.99

$

In Stock, only 2 left!

0

14

Snapper 7024748

TUBING, 5/8" I.D., Convoluted
(Superseded to 7024748YP)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper 7090361

SCREW, 5/16-18 x 5/8" Hex Washer Head, Self-Tapping
(Superseded to 703949)

$3.99

$

In Stock, Qty 5

0

16

Snapper 7045109

BRACKET, Transmission
(Superseded to 7045109YP)

$9.49

$

Usually ships in 2-12 days

0

17

Snapper 7091187

NUT, M10-1.50 Hex Nyloc
(Superseded to 7091187SM)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7024747

PULLEY, Transmission
(Superseded to 7024747YP)

$27.99

$

Usually ships in 2-12 days

0

19

Snapper 7024879

WASHER, Felt
(Superseded to 7024879YP)

$6.49

$

Usually ships in 2-12 days

0

20

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Head, Self-Tapping
(Superseded to 703583)

$4.99

$

In Stock, Qty 20+

0

21

Snapper 7091194

WASHER, 17/32 I.D. x 1-1/2" O.D.
(Superseded to 7091194YP)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7061272

KIT, Height Adjusting Lever
(Superseded to 7061272YP)

Note: (Includes items listed below)

$31.99

$

Usually ships in 2-12 days

0

Snapper 7033967

LEVER, Height Adjusting
(Superseded to 7061272YP)

$31.99

$

Usually ships in 2-12 days

0

Snapper 7091240

SCREW, #10-32 x 5/8" Hex Washer Head, Grade 5
(Superseded to 7091240YP)

$4.99

$

In Stock, only 1 left!

0

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper 7043859

SPRING, Transmission Extension (Short)
(Superseded to 7043859YP)

$15.99

$

Usually ships in 2-12 days

0
