EM7000is A1 (EAHJ) - Honda Generator, Made in Japan (SN: EAHJ-1000001 - EAHJ-9999999) REMOTE CONTROL BOX Parts Diagram

Generator, Made in Japan

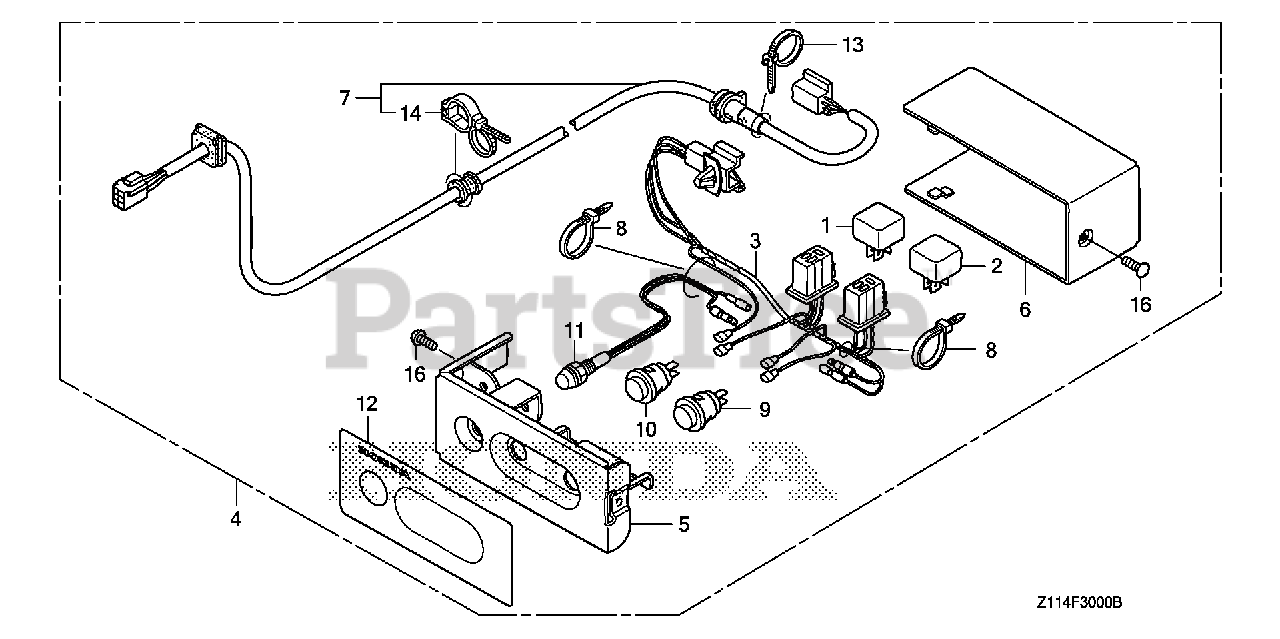

REMOTE CONTROL BOX Parts Diagram

  • Title

1

Honda 31700-MM8-610

RECTIFIER, SILICON

Note: (Optional).

$33.99

$

Usually ships in 3-6 days

0

2

Honda 31700-196-000

RECTIFIER, SILICON

Note: (Optional).

$37.99

$

Usually ships in 3-6 days

0

3

Honda 32140-Z22-800

HARNESS ASSY., REMOTE CONTROL

Note: (Optional).

$36.99

$

Usually ships in 3-6 days

0

4

Honda 32380-Z11-810ZA

BOX ASSY., REMOTE CONTROL (10M) *NH105* (MAT BLACK)

Note: (Optional).

$258.99

$

Usually ships in 3-6 days

0

4

Honda 32380-Z11-820ZA

BOX ASSY., REMOTE CONTROL (20M) *NH105* (MAT BLACK)

Note: (Optional).

$633.99

$

Usually ships in 3-6 days

0

4

Honda 32380-Z11-830ZA

BOX ASSY., REMOTE CONTROL (30M) *NH105* (MAT BLACK)

Note: (Optional).

$753.99

$

Usually ships in 3-6 days

0

5

Honda 32381-Z22-800ZA

PANEL, REMOTE CONTROL *NH105* (MAT BLACK)

Note: (Optional).

$54.99

$

Usually ships in 3-6 days

0

6

Honda 32382-Z22-800ZA

COVER, REMOTE CONTROL *NH105* (MAT BLACK)

Note: (Optional).

$39.99

$

Usually ships in 3-6 days

0

7

Honda 32520-Z11-800

CABLE ASSY., REMOTE CONTROL (10M)

Note: (Optional).

$218.99

$

Usually ships in 3-6 days

0

7

Honda 32520-Z11-810

CABLE ASSY., REMOTE CONTROL (20M)

Note: (Optional).

$319.99

$

Usually ships in 3-6 days

0

7

Honda 32520-Z11-820

CABLE ASSY., REMOTE CONTROL (30M)

Note: (Optional).

$419.99

$

Usually ships in 3-6 days

0

8

Honda 32903-ZC8-N01

TIE, CABLE (C)

Note: (Optional).

$1.99

$

Usually ships in 3-6 days

0

9

Honda 35120-Z22-801

SWITCH, ENGINE STOP

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

10

Honda 35150-Z22-801

SWITCH, START

Note: (Optional).

$20.99

$

Usually ships in 3-6 days

0

11

Honda 37570-Z22-A91

LED ASSY.

Note: (Optional).

$95.99

$

Usually ships in 3-6 days

0

12

Honda 87247-Z22-800

MARK, REMOTE CONTROL

Note: (Optional).

$38.99

$

Usually ships in 3-6 days

0

13

Honda 90615-PN3-003

BAND, HARNESS (98MM) (NATURAL)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

14

Honda 91558-SM4-003

CLIP, TUBE (135MM) (BLACK)

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

16

Honda 93500-04008-0G

SCREW, PAN (4X8)

Note: (Optional).

$1.49

$

Usually ships in 3-6 days

0
